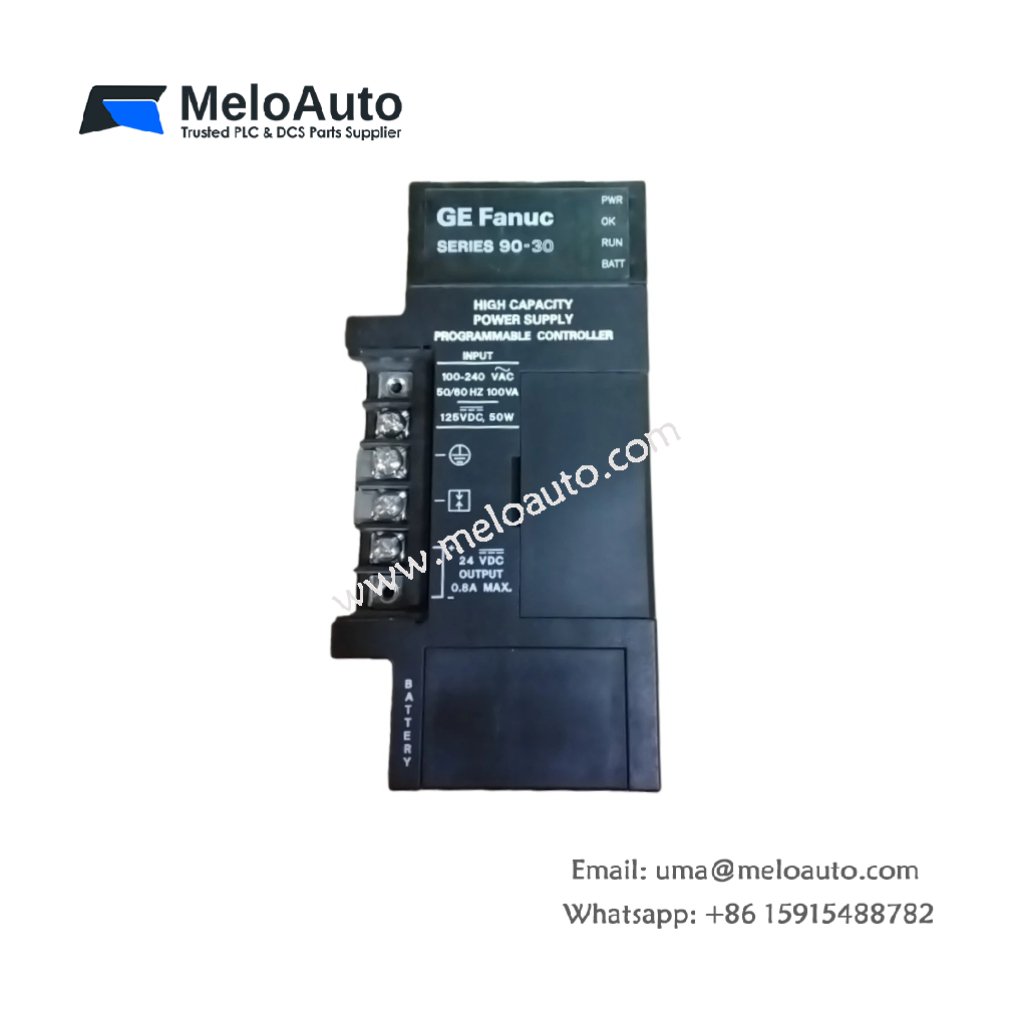

GE IC693PWR330 High-Capacity Power Supply Module

The GE IC693PWR330 is a robust and high-performance power supply module designed for the GE Fanuc Series 90-30 platform. It offers reliable power distribution, ensuring stable operation for industrial automation systems. This module delivers multiple output options and is capable of handling wide input voltage ranges, making it suitable for various industrial applications.

Key Features of the GE IC693PWR330 Power Supply

High Load Capacity: The GE IC693PWR330 offers up to 30 Watts of power, delivering consistent performance for your industrial devices.
Multiple Output Voltages: It provides three distinct outputs: 5VDC, 24VDC Relay, and 24VDC Isolated, allowing flexibility for different system components.
Wide Input Voltage Range: The power supply accommodates input voltages from 85 to 264 VAC and 100 to 300 VDC, offering versatility for various power sources.
Reliable Performance: The GE IC693PWR330 features a 20-millisecond minimum hold-up time, ensuring power continuity during short disruptions.
Inrush Current Protection: The module supports a 4A peak inrush current, enabling smooth start-ups without damaging sensitive components.

Technical Specifications

Parameter	Specification
Manufacturer	GE Fanuc Emerson
Product Type	High-capacity power supply
Product Line	Series 90-30
Part Number	IC693PWR330
Weight	1.25 lbs (0.57 kg)
Number of Outputs	Three (3)
Nominal Rated Voltage	120/240 VAC or 125 VDC
Input Voltage Range (AC)	85 to 264 VAC
Input Voltage Range (DC)	100 to 300 VDC
Input Power (VAC)	90 VA
Input Power (VDC)	50 W
Inrush Current	4A peak, 250 milliseconds maximum
Output Voltage (5VDC)	5.0 to 5.2 VDC (5.1 VDC nominal)
Output Voltage (24VDC Relay)	24 to 28 VDC
Output Voltage (Isolated 24VDC)	21.5 to 28 VDC
Output Power (5VDC)	30 Watts maximum
Output Power (24VDC Relay)	15 Watts maximum
Output Power (Isolated 24VDC)	20 Watts maximum
Hold-up Time	20 milliseconds minimum

Product Description

The GE IC693PWR330 is an essential power supply module designed to meet the high-power needs of the GE Fanuc Series 90-30 PLC system. It can support both AC and DC inputs, making it adaptable to various industrial environments. The input voltage range for AC is from 85 to 264 VAC, while the DC input range is between 100 to 300 VDC.

This power supply module offers three distinct output voltages: 5 VDC, 24 VDC Relay, and 24 VDC Isolated. It ensures that each system component receives the correct voltage, allowing for optimal system performance. The module can deliver up to 30 Watts at 5 VDC, 15 Watts at 24 VDC Relay, and 20 Watts at Isolated 24 VDC, providing flexibility for different components.

With a hold-up time of 20 milliseconds minimum, the GE IC693PWR330 ensures uninterrupted operation even during brief power interruptions. Furthermore, the 4A peak inrush current capability allows for smooth and safe startup, protecting sensitive components from damage.

This high-capacity power supply module ensures reliability and efficiency, making it an excellent choice for industrial automation systems that require stable, long-term power solutions.

Applications

Industrial Automation: Ideal for use with GE Fanuc Series 90-30 PLCs and other control systems.
Power Supply Management: Suitable for applications that require consistent, high-power output.
Flexible Integration: Works with both AC and DC power sources for greater system adaptability.

Conclusion

The GE IC693PWR330 high-capacity power supply module is engineered to deliver reliable, high-performance power for GE Fanuc Series 90-30 PLC systems. Its broad input voltage range, multiple output options, and efficient design make it an essential component for industrial applications. Whether you’re managing automation systems or handling power-sensitive equipment, this module ensures optimal performance and longevity.
