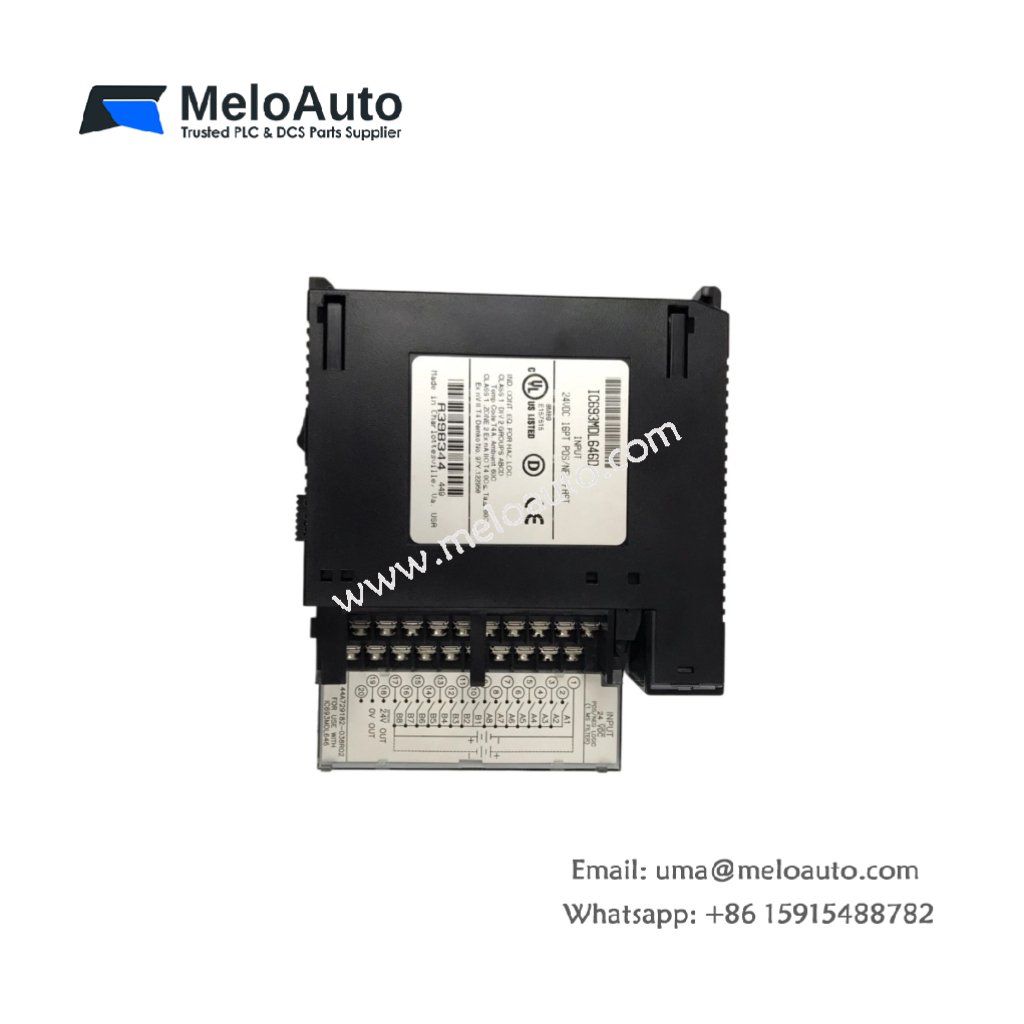

GE IC693MDL646D: High-Density Input Module

Discrete input processing requires reliable and efficient signal interfacing. The GE IC693MDL646D input module delivers this capability for Series 90-30 PLC systems. This module accepts 32 discrete input signals from field devices. It provides a high-density solution for space-constrained control cabinets.

Technical Architecture and Specifications

This module features a standard Series 90-30 form factor for rack-based installation. Its dimensions measure 12.5 cm in width and 11.4 cm in height. The GE IC693MDL646D weighs approximately 0.3 kilograms for secure mounting. It interfaces with the system backplane via a 48-pin card-edge connector. This connector provides power and communication to the module.

The internal assembly contains a single integrated printed circuit board with 32 input channels. Engineers will note the grouping of inputs into four groups of eight channels each. Each group shares a common return path for simplified field wiring. The module draws 5 V DC power from the backplane with 250 mA current consumption.

Input Characteristics

The GE IC693MDL646D accepts 24 V DC input signals from sensors and switches. Each channel provides a nominal input current of 7 mA at 24 V DC. For field wiring, it utilizes a 40-pin connector that accepts discrete wiring harnesses. Status indicators display the on-off state for each input channel clearly. You can explore similar industrial input solutions for reference.

System Integration and Reliability

The GE IC693MDL646D operates reliably across standard industrial environments. It functions within a temperature range of 0°C to 60°C. LED indicators provide immediate visual feedback for each input channel. Maintenance personnel can verify field device status without additional tools. The high-density design accommodates up to 32 inputs in a single slot. This compact footprint maximizes available rack space for other system components.
