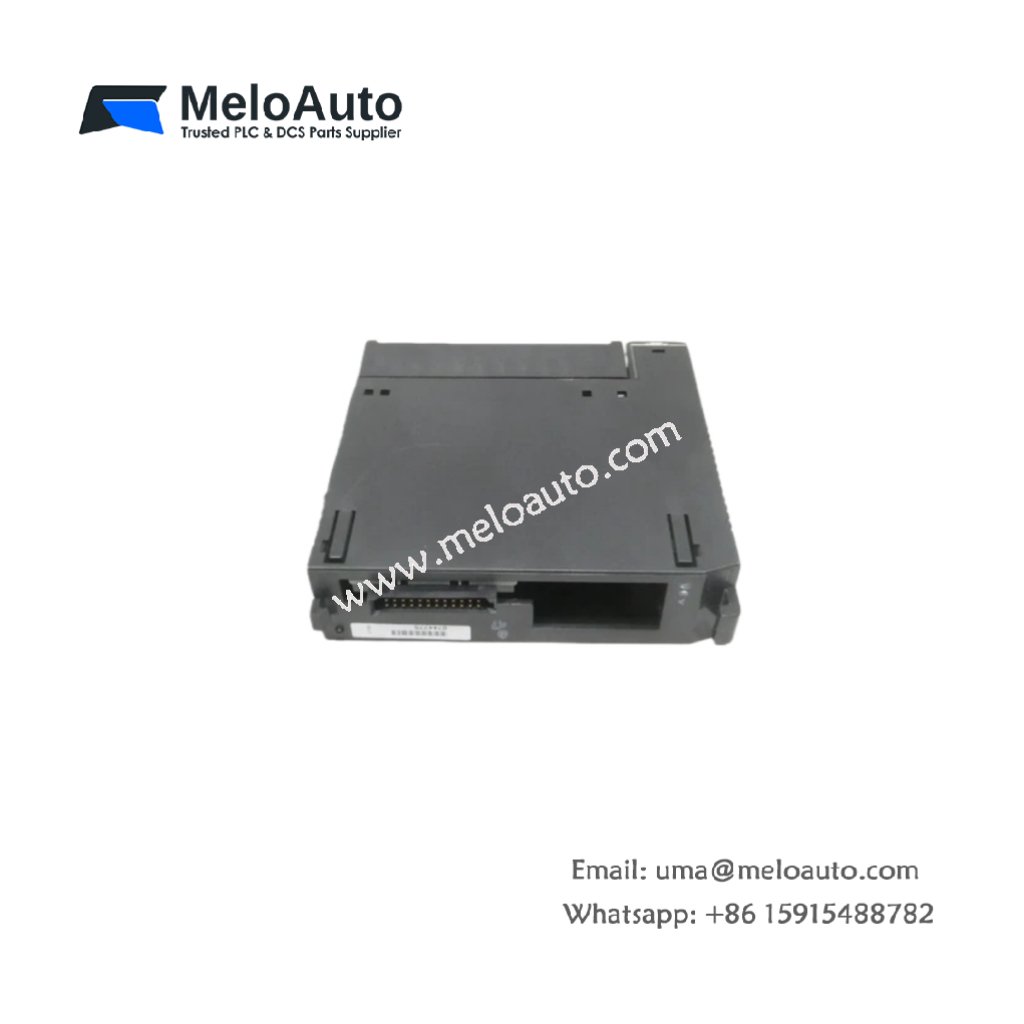

GE IC693MDL340 Discrete Output Module

The GE IC693MDL340 is a high-performance output module designed for the Series 90-30 programmable logic controller (PLC) systems. It features sixteen discrete 120 VAC output channels, organized into two groups of eight channels each. The module provides a wide output voltage range of 85-132 VAC and delivers a nominal output of 120 VAC. Additionally, each point supports 0.5 A of output current, ensuring reliable operation.

Key Features of the GE IC693MDL340 Output Module

High Channel Count: With sixteen output channels, the GE IC693MDL340 optimizes distribution by grouping them into two sets of eight channels.
Flexible Voltage Range: The output voltage ranges from 85 to 132 VAC, while maintaining a nominal value of 120 VAC for consistent performance.
Reliable Output Current: Each point delivers 0.5 A of current, supporting stable operation across all outputs.
Backplane Current Draw: The module consumes 315 mA of backplane current when all outputs are activated, ensuring energy efficiency.
Enhanced Isolation: The IC693MDL340 offers 1500 V of isolation between the field side and logic side, safeguarding your system from electrical hazards.
Wide Frequency Compatibility: Operating within a frequency range of 50-60 Hz, the module is adaptable to standard industrial power supplies.

Technical Specifications

Specification	Details
Product Type	Output Module
Part Number	IC693MDL340
Product Line	Series 90-30
No. of Channels	16
No. of Groups	2
Channels per Group	8
Rated Voltage	120 VAC
Output Voltage Range	85 to 132 VAC
Nominal Output Voltage	120 VAC
Output Current per Point	0.5 A
Output Current per Group	3.0 A
Frequency	50-60 Hz
Backplane Current Draw	315 mA (when all outputs activated)
Isolation Protection	1500 V (between field side and logic side)
Weight	1.00 lbs (0.45 kg)

Product Description

The GE IC693MDL340 is a powerful and reliable output module, perfect for use in Series 90-30 PLC systems. It provides sixteen 120 VAC discrete output channels, divided into two groups for efficient management. The module supports an output voltage range of 85-132 VAC, with a nominal value of 120 VAC, and delivers 0.5 A of current per point, ensuring stable performance even in demanding environments.

Equipped with 1500 V isolation protection, the IC693MDL340 safeguards your system from electrical disturbances. Moreover, it is designed to operate within a frequency range of 50 to 60 Hz, ensuring compatibility with most industrial power supplies. The module draws 315 mA of current from the backplane when all outputs are active, making it a reliable, energy-efficient choice.

This module is ideal for controlling a variety of discrete devices, including motors, solenoids, and relays. Its versatile design ensures smooth integration with your automation systems.

Applications

The GE IC693MDL340 module is widely used in industrial control systems, ideal for applications such as controlling motors, relays, and other discrete output devices. Its high output current capacity and safety features make it an excellent choice for harsh industrial environments.
