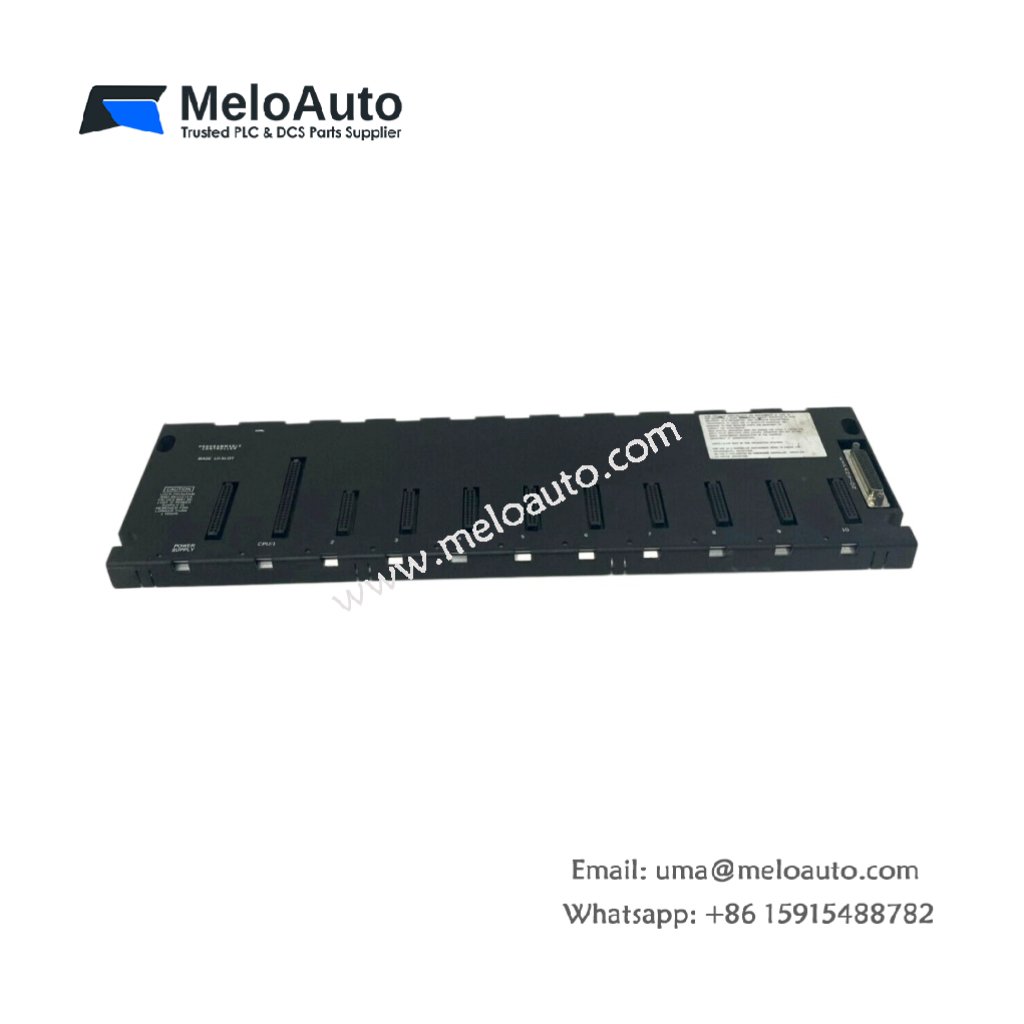

GE IC693CHS391D 10-Slot Modular CPU Baseplate

Overview

The GE IC693CHS391D is a highly flexible 10-slot modular CPU baseplate, part of the Series 90-30 product line by GE Fanuc. This modular baseplate enables you to integrate the CPU, power supply, I/O modules, and expansion options within a single structure. It provides essential connectivity and reliable power distribution to all connected modules.

Key Features

Flexible Slot Configuration: The IC693CHS391D includes 1 dedicated CPU slot and 9 I/O slots, allowing you to customize your system based on specific needs. Additionally, the power supply slot ensures efficient and stable power distribution to all modules.
Modular and Expandable Design: This baseplate is designed for easy expansion, supporting remote I/O connections through the expansion slot. The modular setup enables you to scale up your system as needed, without compromising flexibility.
Stable Power Supply Integration: With a dedicated power supply slot, the IC693CHS391D guarantees stable power for all modules. As a result, you can depend on this baseplate to maintain consistent operation even in demanding environments.
Versatile Connector and PLC Integration: Featuring a 25-pin female connector, the IC693CHS391D seamlessly connects with various external devices and PLCs. Furthermore, it supports a PCI card for computer connections, expanding the system’s connectivity options.
Compact and Lightweight Construction: Despite its robust design, the IC693CHS391D weighs only 2.06 lbs (0.94 kg). Its compact size makes it easy to integrate into systems where space is limited, without sacrificing performance.

Technical Specifications

Parameter	Specification
Model	IC693CHS391D
Product Type	Modular CPU Baseplate
Product Line	Series 90-30
Total Slots	10 (1 CPU, 9 I/O, 1 Power Supply)
Current	420 mA
Voltage	5 VDC
CPU Slot	1 (Slot 1)
I/O Slots	9 (Slot 2-10)
Power Supply Slot	1
PLC Connection	Supported
Expansion Slot	1 (Expansion Cable Support)
Connector	25-Pin Female
Rack Address	Default Rack Number 0
Product Lifecycle	Discontinued/Obsolete
Weight	2.06 lbs (0.94 kg)

Applications

The GE IC693CHS391D is an integral component for Series 90-30 PLC systems. Its versatile design makes it suitable for a range of industrial applications, including machine control, process automation, and robotics. The flexibility of the baseplate ensures that you can configure your system to meet both current and future needs.

Manufacturer

Manufactured by GE Fanuc Emerson, the IC693CHS391D is part of the trusted Series 90-30 family. GE Fanuc has a long-standing reputation for delivering high-performance, reliable automation solutions, ensuring your system runs smoothly in even the most challenging environments.
