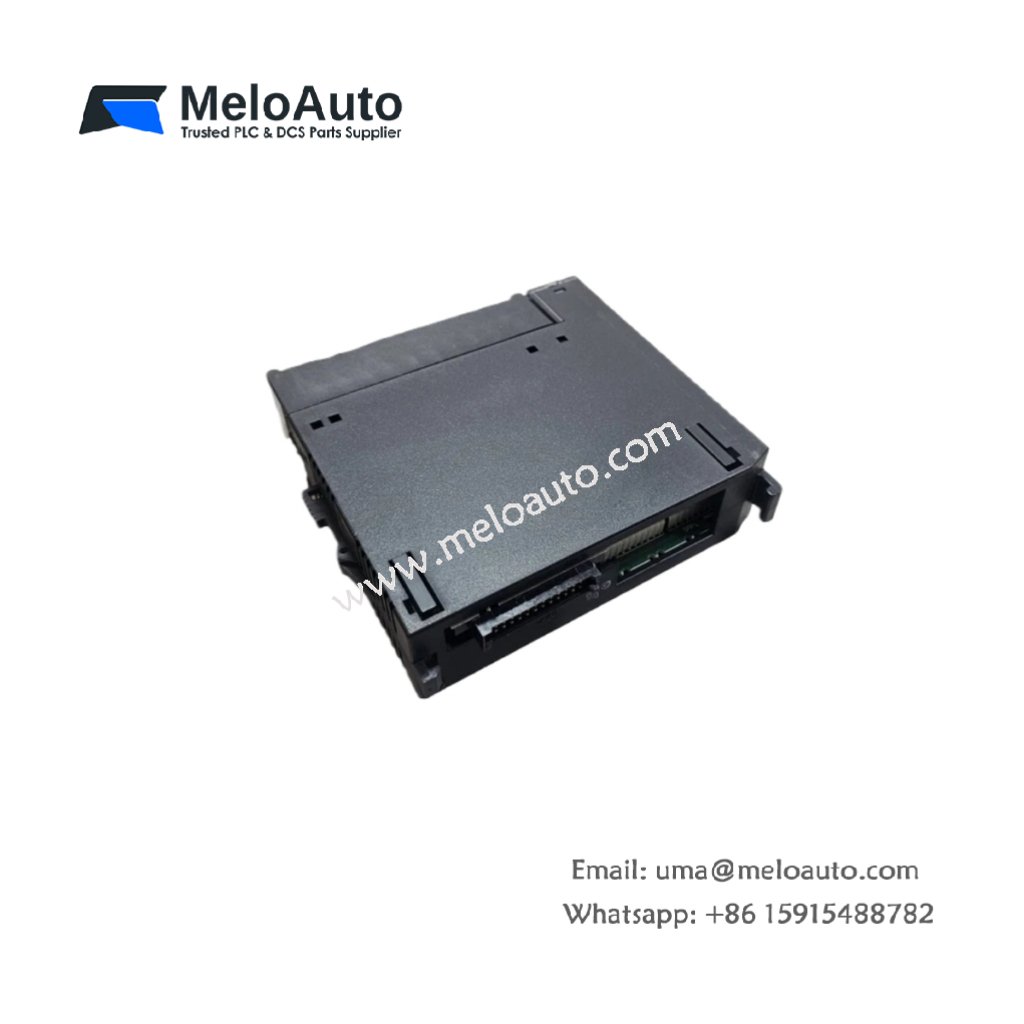

GE IC693APU300 High-Speed Counter Module

Overview

The GE IC693APU300 is a high-speed counter module designed for use in the Series 90-30 control system. Manufactured by GE Fanuc, now part of Emerson Automation, this module provides fast, reliable data processing for industrial automation applications. With a maximum count rate of 200 kHz, it is suitable for systems requiring rapid signal processing and precise control. The module features twelve (12) positive logic inputs and four (4) positive logic outputs, providing robust performance in various industrial settings.

Key Features

The IC693APU300 operates with twelve positive logic inputs, supporting both 5VDC and 10-30VDC input signals. This versatility ensures compatibility with a range of devices and systems. Additionally, the module includes four positive logic outputs that deliver output ratings of up to 500 mA at 10-30VDC or 20 mA at 4.75 to 6VDC, making it adaptable to various control requirements.

With a maximum count rate of 200 kHz and a minimum count rate of 20 kHz, the IC693APU300 excels in fast-paced applications that demand high accuracy and speed. This module is equipped with short circuit protection to safeguard the system and enhance its reliability in industrial environments.

Technical Specifications

Parameter	Specification
Manufacturer	GE Fanuc Emerson
Product Line	Series 90-30
Part Number	IC693APU300
Weight	0.88 lbs (0.40 kg)
Module Type	High-Speed Counter (HSC) module
Number of Input Channels	12 Positive Logic Inputs
Maximum Count Rate	200 kHz
Minimum Count Rate	20 kHz
Input Signal Voltage	5 VDC; 10-30 VDC
Input Frequency	80 kHz
Input Voltage Range	5V DC; 10-30V DC
Output Channels	4 Positive Logic Outputs
Output Ratings	10-30 VDC @ 500 mA max; 4.75-6 VDC @ 20 mA max
Output Voltage Range	4.75 VDC to 6 VDC; 10-30 VDC
Output Protection	Short Circuit Protection

Applications

The GE IC693APU300 module is ideal for systems requiring high-speed counting and control. It is commonly used in applications such as motion control, process monitoring, and measurement systems. Its fast response time, along with the ability to handle both high and low frequency signals, makes it suitable for precise control tasks in industrial automation.

With its high-speed processing capabilities, the IC693APU300 can manage complex control systems, supporting real-time data acquisition and signal processing. Whether controlling motor speeds, production lines, or other automated processes, this module ensures efficient and accurate system performance.

Conclusion

The GE IC693APU300 high-speed counter module is a powerful solution for applications that require rapid and precise data handling. With twelve inputs, four outputs, and a high count rate, it offers exceptional performance in Series 90-30 systems. Its versatility, short circuit protection, and wide input/output voltage ranges make it a reliable choice for a variety of industrial automation applications.
