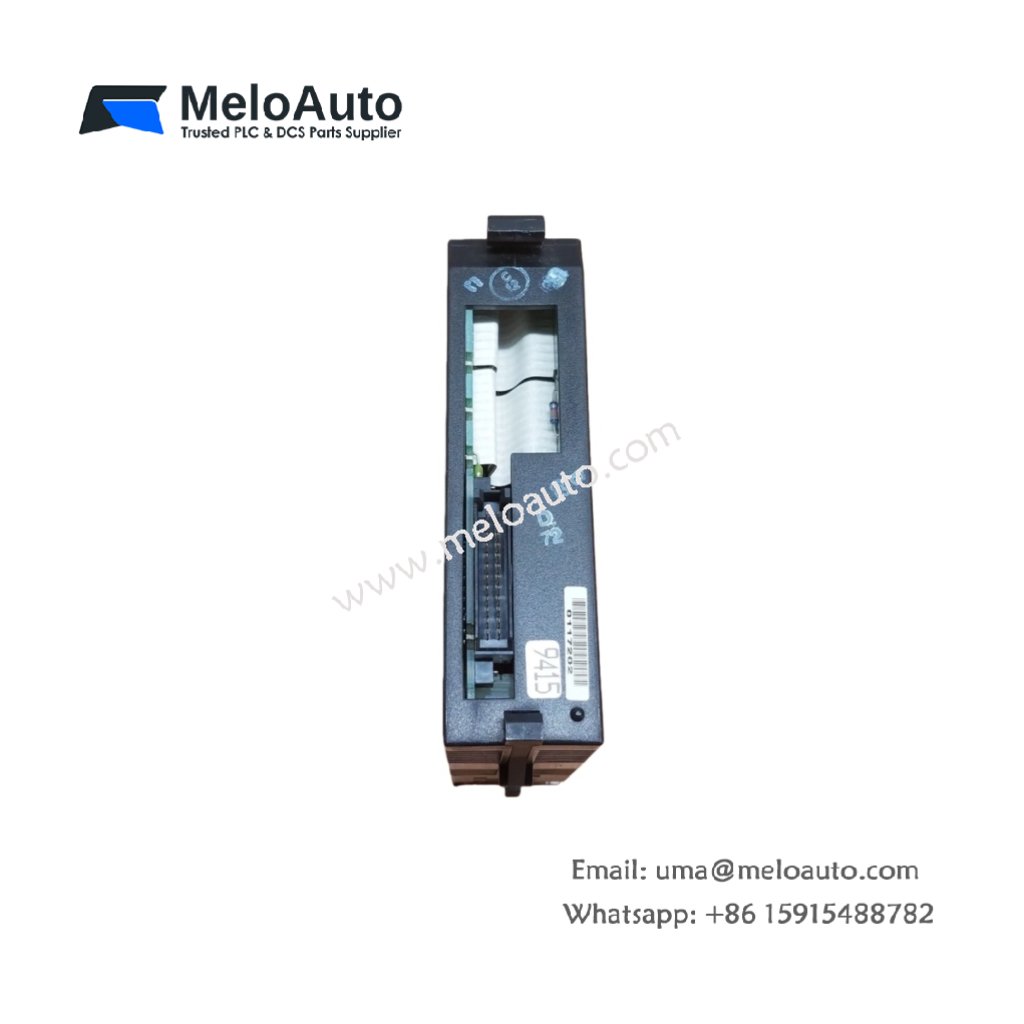

GE IC693ALG391 Analog Output Module

Product Overview:

The GE IC693ALG391 is a high-performance analog output module designed for use with the Series 90-30 PLC platform. Manufactured by GE Fanuc, now under Emerson Automation, this module offers exceptional signal output capabilities. It provides both current and voltage outputs, including 0-20 mA, 4-20 mA, 1-5 VDC, and 0-5 VDC, making it suitable for a wide range of industrial applications.

This analog output module is designed for two output channels, each with high precision. It supports advanced signal resolution and accuracy, ensuring reliable and accurate control for automation processes. The GE IC693ALG391 delivers excellent performance with a channel update rate of 5 ms and features a digital resolution of 12 bits. It is ideal for systems requiring precise analog signal transmission and control.

Key Features:

Multiple Output Types: Supports 0-20 mA, 4-20 mA, 1-5 VDC, and 0-5 VDC analog output signals.
High Precision: Offers resolution from 4µA to 1.25 mV depending on output type.
Dual Output Channels: Equipped with two (2) independent output channels for flexible signal distribution.
Fast Update Rate: Channel update rate of 5 ms for real-time control.
Compact and Efficient: Energy-efficient with a current draw of 30 mA @ 5 VDC and 215 mA @ 24 VDC.

Technical Specifications:

Parameter	Specification
Model	GE IC693ALG391
Product Type	Analog Output Module
Manufacturer	GE Fanuc (Emerson Automation)
Part Number	IC693ALG391
Weight	0.81 lbs (0.37 kg)
Output Signals	0-20 mA, 4-20 mA, 1-5 VDC, 0-5 VDC
Number of Channels	Two (2) output channels
Channel Update Rate	5 ms
Analog Output Resolution	4µA (0-20 mA), 5µA (4-20 mA), 1mV (1-5 V), 1.25mV (0-5 V)
Digital Resolution	12 bits, typical
Output Accuracy	4 to 20 mA: 8µA at 25°C, 0 to 20 mA: 10µA at 25°C, 1 to 5 V: 50mV at 25°C, 0 to 5 V: 50mV at 25°C
Current Draw	30 mA @ 5 VDC, 215 mA @ 24 VDC (backplane or user-supplied)
External Supply Voltage	20 to 30 VDC
Supply Voltage (Nominal)	+24 VDC (from isolated +24 VDC on backplane or user-supplied) and +5 VDC (backplane)
Isolation	1500 VAC

Why Choose the GE IC693ALG391 Analog Output Module?

Versatile Output Options: Offers multiple analog output types for a broad range of industrial applications.
High Precision and Accuracy: Ensures reliable signal transmission with high resolution and accuracy.
Fast Performance: With a 5 ms update rate, it provides rapid responses for real-time control.
Reliable Power Consumption: Efficient power usage with low current draw for both 5 VDC and 24 VDC supplies.
Durability and Longevity: Designed to operate in harsh industrial environments with 1500 VAC isolation.
