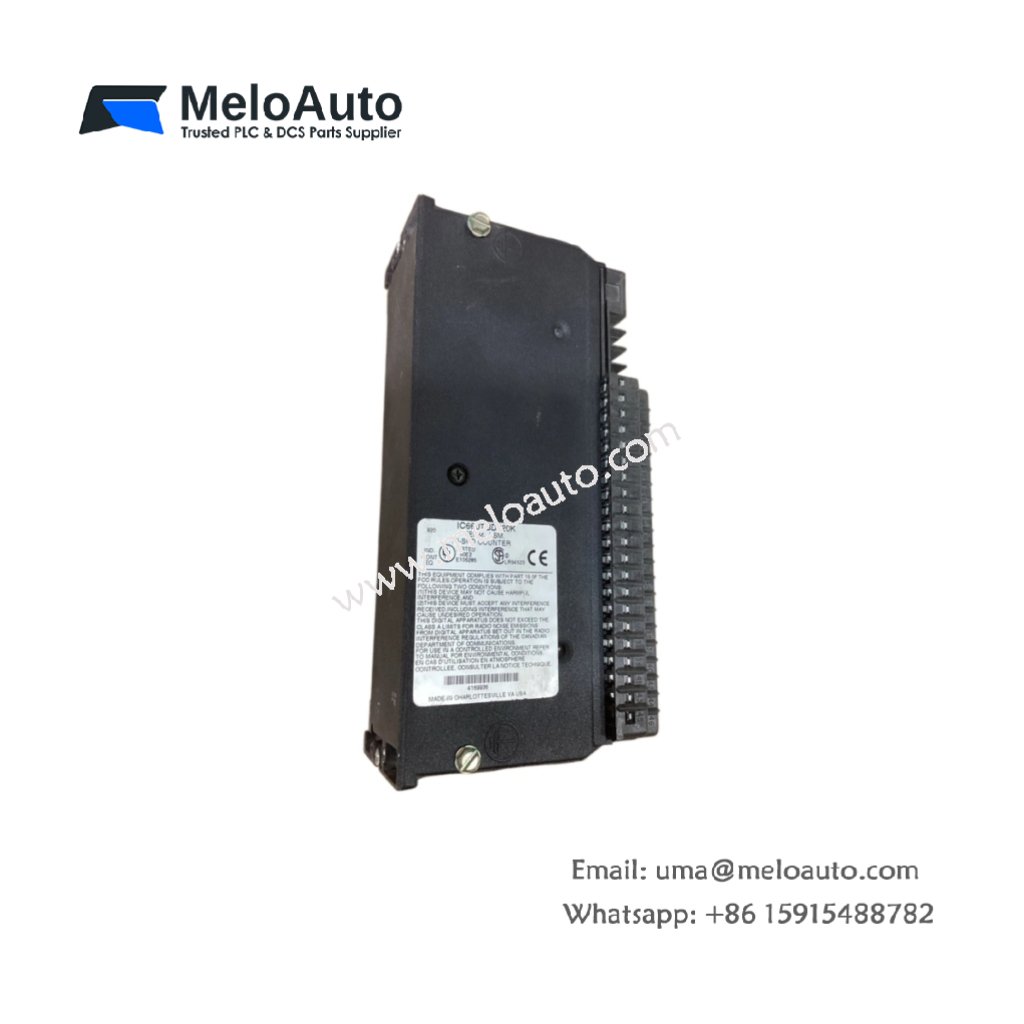

GE IC660TBD120 | Terminal Assembly

The GE IC660TBD120 provides secure field wiring termination for Genius I/O blocks. This terminal assembly connects field devices directly to the Genius I/O module interface. It supports discrete input and output signals for industrial control applications. Weighing only 0.28 kg, the GE IC660TBD120 mounts directly onto compatible Genius I/O bases. Its dimensions measure 165 mm x 85 mm x 35 mm.

Terminal Configuration and Connection Features

The GE IC660TBD120 features 20 screw-type terminal points for flexible field wiring. Each terminal accepts wire sizes from AWG 22 to AWG 14 for reliable connections. The assembly includes numbered positions for easy identification during installation. Moreover, the GE IC660TBD120 provides two common terminals per group for simplified wiring. Consequently, you can reduce installation time and eliminate wiring errors.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	GE IC660TBD120
Product Category	Genius I/O Terminal Assembly
Number of Terminal Points	20
Terminal Type	Screw clamp
Wire Size (Solid)	AWG 22 to AWG 14 (0.34 mm² to 2.5 mm²)
Wire Size (Stranded)	AWG 22 to AWG 14 (0.34 mm² to 2.5 mm²)
Screw Terminal Torque	0.8 N·m to 1.1 N·m
Rated Voltage	250 V AC / 30 V DC maximum
Rated Current per Terminal	5 A maximum
Number of Common Terminals	2 (one per group)
Terminal Marking	Numbered 1 through 20
Housing Material	Polycarbonate (UL94 V-0)
Color	Gray
Energy Storage	None (passive assembly only)
Number of Components	1 terminal housing + 20 screw clamps + 2 jumper bars
Net Weight	0.28 kg (280 grams)
Gross Weight (packaged)	380 grams
Dimensions (H x W x D)	165 mm x 85 mm x 35 mm
Mounting Type	Screws onto Genius I/O base
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Degree of Protection	IP20
Flammability Rating	UL94 V-0
Certifications	CE, UL 508, CSA
Compatible Genius I/O Blocks	IC660BBAxxx, IC660BBDxxx series

Compatible Modules and Application Use

The GE IC660TBD120 works with any Genius I/O block using the standard terminal interface. This includes IC660BBA104, IC660BBD110, and similar part numbers. The assembly screws directly onto the bottom of the Genius I/O block. Therefore, you can wire field sensors and actuators without accessing internal electronics. The GE IC660TBD120 simplifies field replacement and reduces system downtime. Use this terminal assembly for new installations or quick maintenance replacements.

Installation Notes and Ordering Information

The GE IC660TBD120 ships as a complete terminal assembly with mounting screws. You do not need additional hardware for installation on compatible bases. First, remove the old terminal assembly by loosening the four corner screws. Next, position the GE IC660TBD120 onto the base and tighten the screws securely. Finally, connect your field wires to the numbered terminal positions. This terminal assembly suits conveyor systems, packaging machines, and material handling equipment. The GE IC660TBD120 provides reliable field wiring termination for demanding industrial environments.
