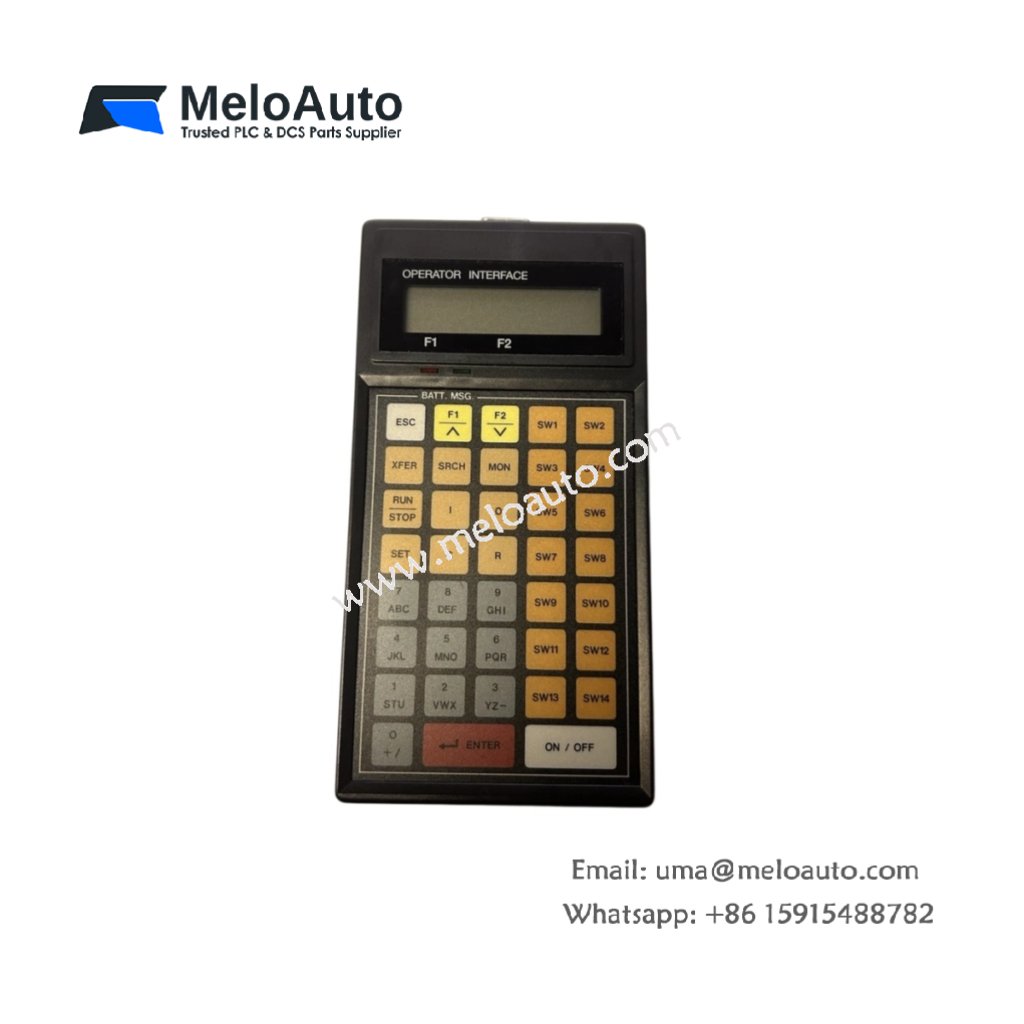

The GE IC620ACC003A provides a compact text-based interface for GE PLC systems. You can mount this unit into a standard industrial panel cutout. It displays machine status and fault messages on a backlit LCD screen. This interface accepts keypad inputs from operators for command entry.
Technical Specifications and Hardware Layout
This operator interface measures 85 mm in height. Its width reaches 125 mm, and the depth equals 42 mm. The GE IC620ACC003A weighs approximately 0.38 kilograms. A single internal PCB holds all display and processing circuits. The unit contains no energy storage capacitors or batteries. One 9-pin D-sub connector provides the serial interface to the PLC. One 3-pin terminal block accepts 24 V DC power input. A 4-line backlit LCD dominates the front panel surface.
| Parameter | Specification |
|---|---|
| Model | GE IC620ACC003A |
| Category | Operator Interface |
| Dimensions (H x W x D) | 85 mm x 125 mm x 42 mm |
| Weight | 0.38 kg |
| Internal PCBs | 1 |
| Energy Storage | None |
| Display Type | 4-line backlit LCD |
| PLC Interface | 9-pin D-sub (serial) |
| Power Input | 3-pin terminal (24 V DC) |
| Operator Controls | 16 membrane keys |
| Temperature Range | 0°C to 50°C |
Display Specifications and User Interface
The GE IC620ACC003A features a 4-line by 20-character backlit LCD. This screen shows machine status, alarms, and production counts clearly. Below the display, you will find 16 tactile membrane keys. These keys include numeric input, function shortcuts, and navigation arrows. Consequently, operators can enter data and acknowledge alarms quickly. The panel provides four programmable function keys for machine-specific commands. A contrast potentiometer on the rear allows display adjustment.
Installation and Communication Guidelines
You must mount this panel using four M3 screws through the front bezel. Transitioning to wiring, use a 24 V DC power supply rated at 0.3 A minimum. The panel supports serial protocols including Modbus RTU and GE SNP. A DIP switch block sets the baud rate and parity parameters easily. Two LEDs indicate power status and data exchange activity. The operating temperature range spans from 0°C to 50°C reliably.
