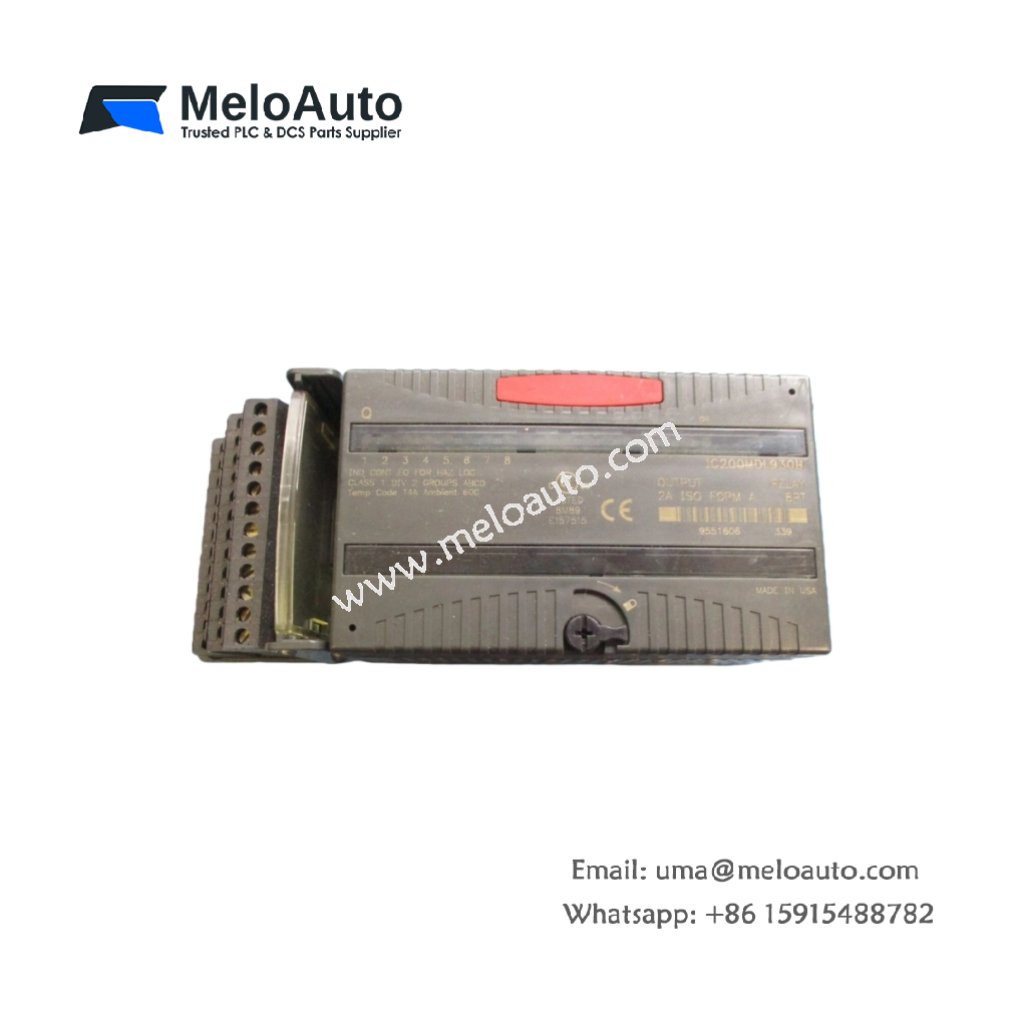

GE IC200MDL930 Relay Output Module | 8-Point, Fast Switching

The GE IC200MDL930 is an advanced 8-point relay output module from the VersaMax I/O series. Originally produced by GE Intelligent Platforms, it is now offered under Emerson Automation. This module provides reliable switching capabilities for industrial control systems, offering individually isolated relay contacts and flexible voltage options for various applications.

Key Features

Model: IC200MDL930
Category: Relay Output Module
Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Product Line: VersaMax I/O Series

Technical Specifications

Parameter	Value
Product Type	Relay Output Module
Number of Points	8
Output Contact Form	Normally Open (Form A)
Output Voltage (Nominal)	5/24/125 VDC, 120/240 VAC
Output Voltage Range	0 to 125 VDC, 0 to 265 VAC (47-63Hz)
Contact Current Rating	10mA (minimum) per point; 2A (max)
Switching Frequency	20 cycles per minute
Relay Type	Fixed coil, moving armature
Response Time (On/Off)	10 milliseconds
Current Draw (Max)	435 mA
Temperature Range	0 to 30°C
Relay Contact Type	Silver alloy
Isolation	250VAC continuous, 1500VAC for 1 minute
Weight	0.56 lbs (0.26 kg)
Compliance	CE, cULus

Description

The GE IC200MDL930 is a robust 8-point relay output module, designed to handle a wide range of industrial control applications. It features individually isolated outputs, with a choice of Normally Open (Form A) contacts. The module supports both DC and AC voltage ranges, making it highly versatile for different control system requirements.

With a contact current rating of up to 2.0A (for resistive loads), the IC200MDL930 can handle high-power switching. Additionally, its response time of just 10 milliseconds ensures quick and reliable operation, making it suitable for fast-switching applications.

The module’s output isolation protects the system by providing optical isolation between the user inputs, logic, and frame ground. This enhances the durability of the system and minimizes the risk of damage due to electrical spikes.

Applications

The IC200MDL930 module is ideal for use in:

Industrial Automation Systems: Perfect for controlling motors, solenoids, and actuators in manufacturing environments.
Process Control: Reliable switching for sensors, alarms, and safety systems in automated control processes.
Building Automation: Used in controlling HVAC systems, lighting, and other essential equipment in building management systems.

Benefits

Reliable and Fast Switching: The IC200MDL930 provides stable, rapid switching with a response time of just 10 milliseconds.
Flexible Voltage Support: It supports both DC and AC voltage ranges, making it compatible with diverse industrial systems.
High Durability: With optical isolation and silver alloy contacts, the module ensures long-lasting performance in harsh environments.
Easy Integration: Its compact design and standard 8-point configuration allow for easy integration into control systems.
