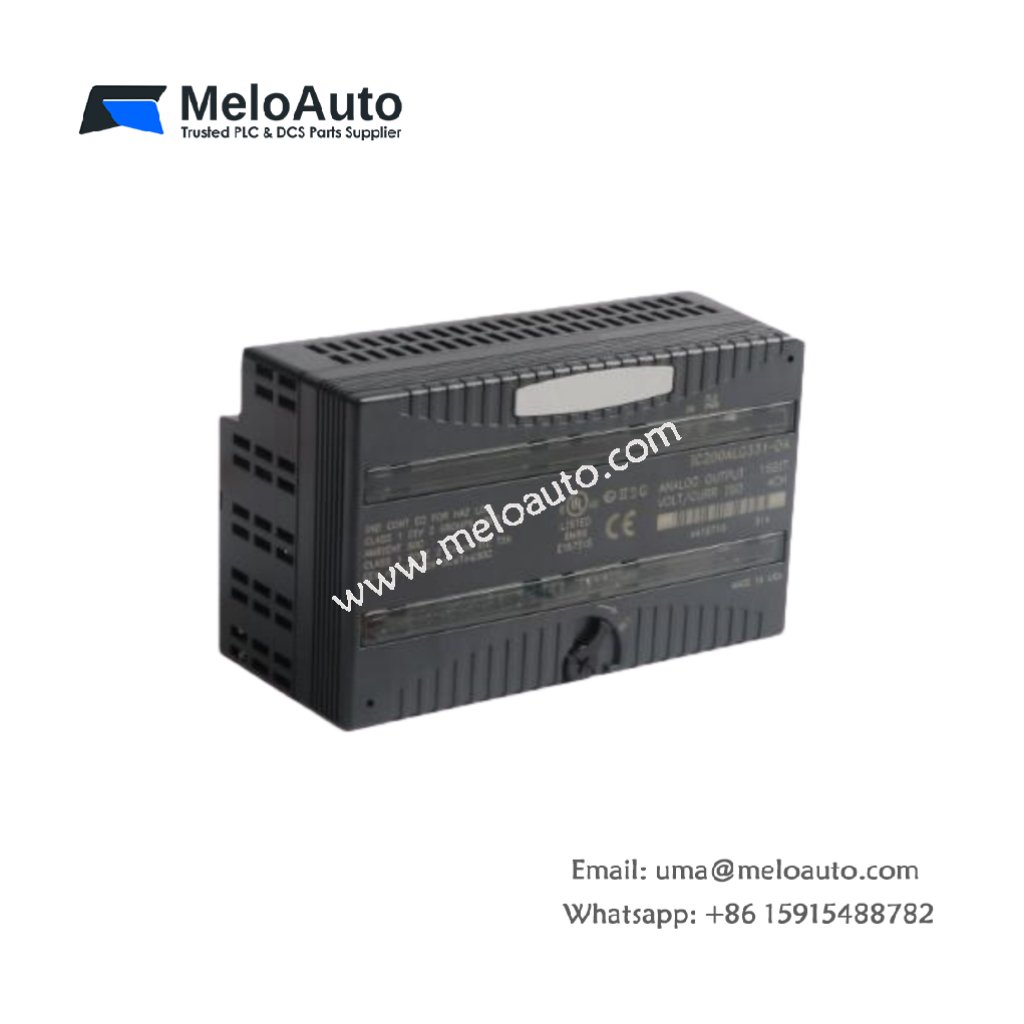

GE IC200ALG331 4-Point Analog Voltage / Current Input Module

Product Overview:

The GE IC200ALG331 is a highly versatile 4-Point Analog Voltage / Current Input Module from the VersaMax I/O series. Originally produced by GE Fanuc and now under Emerson Automation, this module excels in delivering precise analog signals for a variety of industrial applications. With its flexible output capabilities and fast response times, it serves as a reliable choice for your automation needs.

This module features four isolated channels, each capable of delivering 1-20 mA and ±10 VDC output signals. With a 16-bit resolution and a rapid 7.0 milliseconds update rate, the IC200ALG331 ensures fast and accurate performance. Additionally, the module allows for full software configuration, enabling users to select between holding the output or defaulting to the last operational state.

Key Features:

Versatile Output Options: It supports both 4-20 mA and ±10 VDC output signals.
High Accuracy: Equipped with 16-bit digital resolution for precise measurements.
Software Configurability: Users can easily configure the module through software, enhancing operational flexibility.
Fast Update Rate: The 7.0 ms update rate ensures quick system response.
Individually Isolated Channels: Four isolated channels improve stability in environments with electrical interference.

Technical Specifications:

Parameter	Specification
Manufacturer	GE Fanuc Emerson
Model Number	IC200ALG331
Product Line	VersaMax I/O Series
Product Type	Analog Output Module
Weight	0.69 lbs (0.31 kg)
Output Signal (Nominal)	4-20 mA; ±10 VDC
Output Signal (Range)	Current mode: +1 to 20 mA; Voltage mode: ±10 VDC
Number of Channels	Four (4) individually isolated channels
Digital Resolution	16 bits
Update Rate	7.0 milliseconds (max)
Voltage Range	-10V to +10V DC
Compatible Signals	4-20 mA; ±10 VDC
Software Configurable	Yes (with selectable output hold or default last state)

Why Choose the GE IC200ALG331 Module?

Flexible Outputs: The IC200ALG331 handles both voltage and current signals, making it ideal for various applications.
Quick Performance: With a 7.0 ms update rate, this module provides rapid data updates for real-time control.
Reliable Operation: The individually isolated channels ensure stable performance, even in noisy electrical environments.
Seamless Integration: Full software configurability enables smooth integration into existing automation systems.
