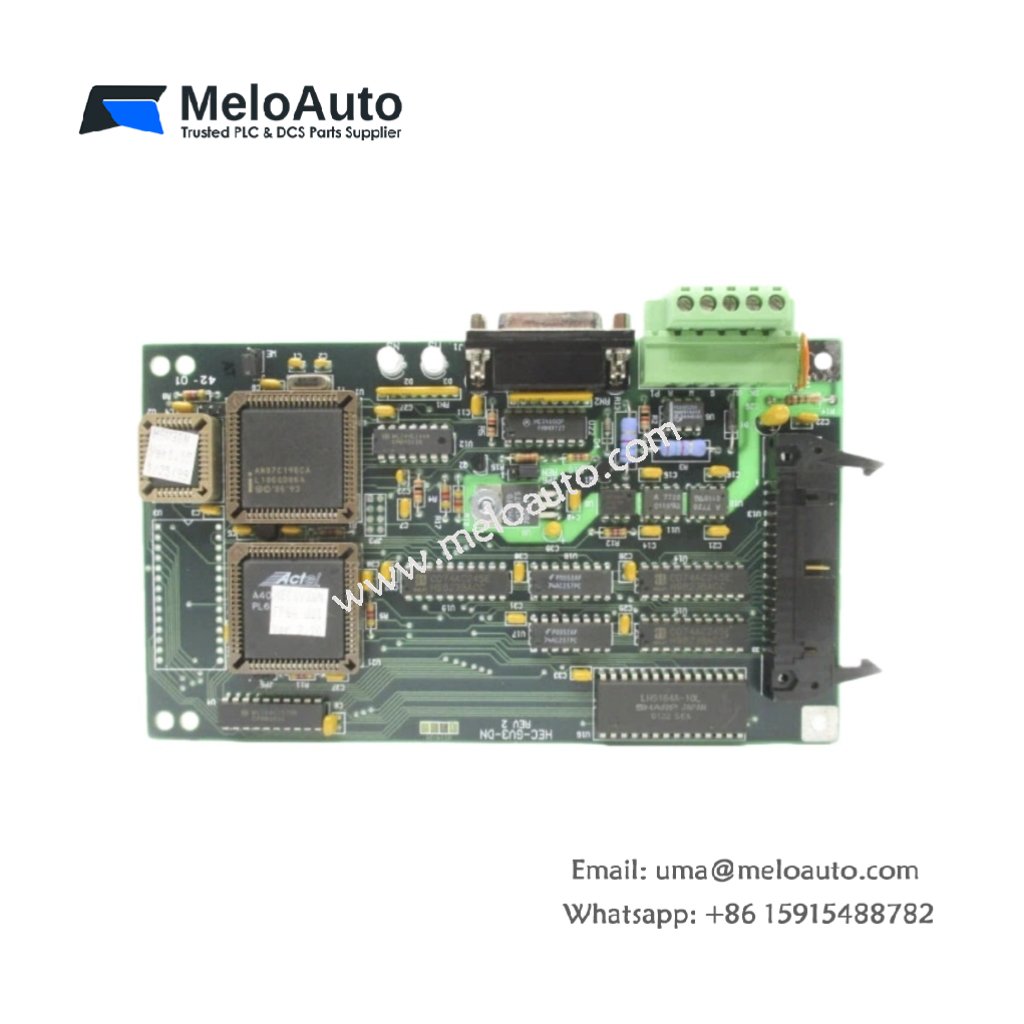

GE HEC-GV3-DNG Power Supply

The GE HEC-GV3-DNG power supply is a highly reliable, efficient solution designed for industrial automation systems. It ensures stable power delivery to support a wide range of GE equipment, offering robust performance in demanding environments.

Key Features and Specifications

The GE HEC-GV3-DNG is engineered to meet the needs of advanced industrial control systems. This power supply module features reliable input and output specifications, making it compatible with various industrial automation applications.

Technical Specifications

Specification	Details
Manufacturer	GE (General Electric)
Part Number	HEC-GV3-DNG
Product Type	Power Supply Module
Input Voltage	100-240 V AC
Output Voltage	24 V DC
Current Output	10 A (maximum)
Power Output	240 Watts maximum
Dimensions	6.7″ x 4.3″ x 2.3″ (170mm x 110mm x 58mm)
Weight	1.1 lbs (0.5 kg)
Efficiency	92% (typical)
Cooling	Forced air cooling via built-in fan
Mounting Type	DIN rail or panel mount
Output Ripple	<1% (at full load)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Certifications	CE, UL, RoHS
Maximum Power Dissipation	30 Watts maximum
Protection Features	Overcurrent, overvoltage, and thermal protection
Input Frequency	47-63 Hz
Input Current	1.5 A (max at 240V AC)

Functionality

The GE provides reliable power conversion for industrial systems. This power supply module offers 24V DC output with a maximum current of 10 A, making it suitable for various automation and control systems.

With an input range of 100-240 V AC, it can handle a wide variety of input voltages, making it versatile for global installations. The HEC-GV3-DNG operates with high efficiency, offering 92% efficiency at typical load conditions. This makes it an energy-efficient solution for industrial applications that require stable power delivery.

Applications

The GE HEC-GV3-DNG power supply is suitable for use in various industrial sectors, including:

Manufacturing Automation: Ensures continuous operation of automated machinery and control systems.
Energy and Power Systems: Powers essential control components in energy production facilities.
Industrial Equipment: Supplies stable power to industrial devices such as motors, sensors, and control circuits.
Robotics: Supports power-hungry robotic systems in automated environments.

Installation and Compatibility

Installing the GE HEC-GV3-DNG is straightforward. It supports DIN rail or panel mounting, offering flexibility based on your system’s configuration. This module requires an external cooling mechanism for continuous operation, provided by its built-in fan.

It operates efficiently in environments with temperatures ranging from 0°C to 50°C. Additionally, the HEC-GV3-DNG complies with CE, UL, and RoHS standards, ensuring it meets global safety and environmental regulations.
