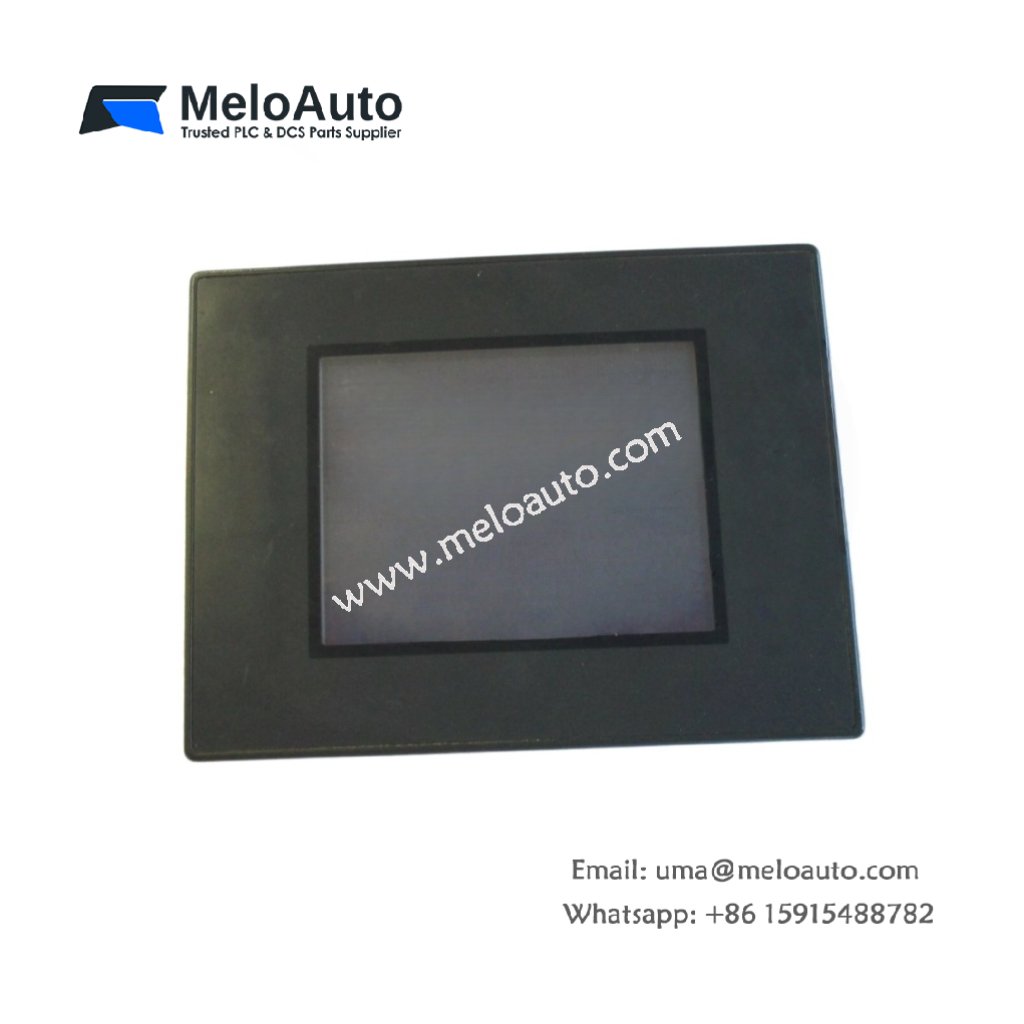

GE GP37W-LG41-24VP Touch Screen

Core Function of This Touch Screen

The GE GP37W-LG41-24VP provides operator interface and machine control visualization. This touch screen HMI displays real-time process data from PLCs and drives. It accepts finger or stylus input for navigation and data entry. Consequently, the module enables efficient local monitoring and control of automation systems.

Physical Dimensions and Display Specifications

This touch screen measures 184 mm in total width. Its height reaches 140 mm for a panel-mount enclosure. The unit depth stands at 45 mm including the rear housing. The display area measures 121 mm wide by 93 mm high. You will find a 5.7-inch STN color LCD with 320 x 240 pixels. The GE GP37W-LG41-24VP weighs approximately 620 grams for secure mounting.

Touch Technology and User Interface

The GE GP37W-LG41-24VP uses an analog resistive touch panel. This technology registers input from gloved fingers or any stylus. The touch panel has a durability rating of one million touches. Four-wire construction provides accurate X and Y coordinate detection. The screen includes a replaceable protective overlay for harsh environments.

Backlight and Display Performance

This touch screen features a CCFL backlight with 25,000 hours of life. The display delivers 300 cd/m² of brightness for outdoor readability. Contrast ratio reaches 150:1 for clear text and graphics. The viewing angle covers 70 degrees horizontally and 50 degrees vertically. The unit supports 256 colors for intuitive process visualization.

Memory and Configuration Storage

The GE GP37W-LG41-24VP contains 4 MB of flash memory for screen projects. It also includes 512 KB of SRAM for recipe and alarm data. A non-volatile EEPROM retains system settings without a battery. The unit does not use external memory cards or USB drives. An internal real-time clock tracks events with a lithium battery backup.

Communication Ports and Connectivity

This touch screen offers one RS-232 port for programming and PLC connection. It also provides one RS-422/485 port for multi-drop networking. Furthermore, the unit includes a dedicated printer port for alarm logging. A 9-pin D-sub connector serves the primary communication interface. The rear panel contains a 3-pin power input terminal block.

Interface Connectors and Energy Storage

The GE GP37W-LG41-24VP draws 400 mA from a 24 V DC power supply. An internal DC-DC converter generates all necessary display voltages. The unit incorporates three 220 µF electrolytic capacitors for power filtering. Total stored energy reaches approximately 0.06 joules at nominal voltage. The touch screen dissipates 10 W of heat during normal operation.

Parameter	Specification
Model	GP37W-LG41-24VP
Brand	GE (General Electric)
Category	Touch Screen HMI
Width x Height	184 x 140 mm
Depth	45 mm
Display size	5.7 inches diagonal
Display type	STN color LCD
Resolution	320 x 240 pixels (QVGA)
Colors	256
Brightness	300 cd/m²
Backlight type	CCFL, 25,000 hour life
Touch technology	Analog resistive (4-wire)
Touch durability	1 million touches
Flash memory	4 MB
SRAM	512 KB
EEPROM (non-volatile)	128 KB
Real-time clock battery	Lithium (replaceable)
RS-232 port	1 (programming/PLC)
RS-422/485 port	1 (multi-drop)
Printer port	1 (alarm logging)
Power supply	24 V DC at 400 mA
Filter capacitors	3 x 220 µF
Total stored energy	0.06 Joules
Power dissipation	10 W
Weight	620 grams
Operating temperature	0°C to +50°C

Installation and Programming Notes

You must mount this touch screen in a NEMA 4/12 enclosure. Always use a filtered power supply to prevent electrical noise. Then, upload the screen project via the RS-232 programming port. The unit supports GE Proficy Machine Edition software for configuration. Regular cleaning of the touch surface prevents false activation from debris.
