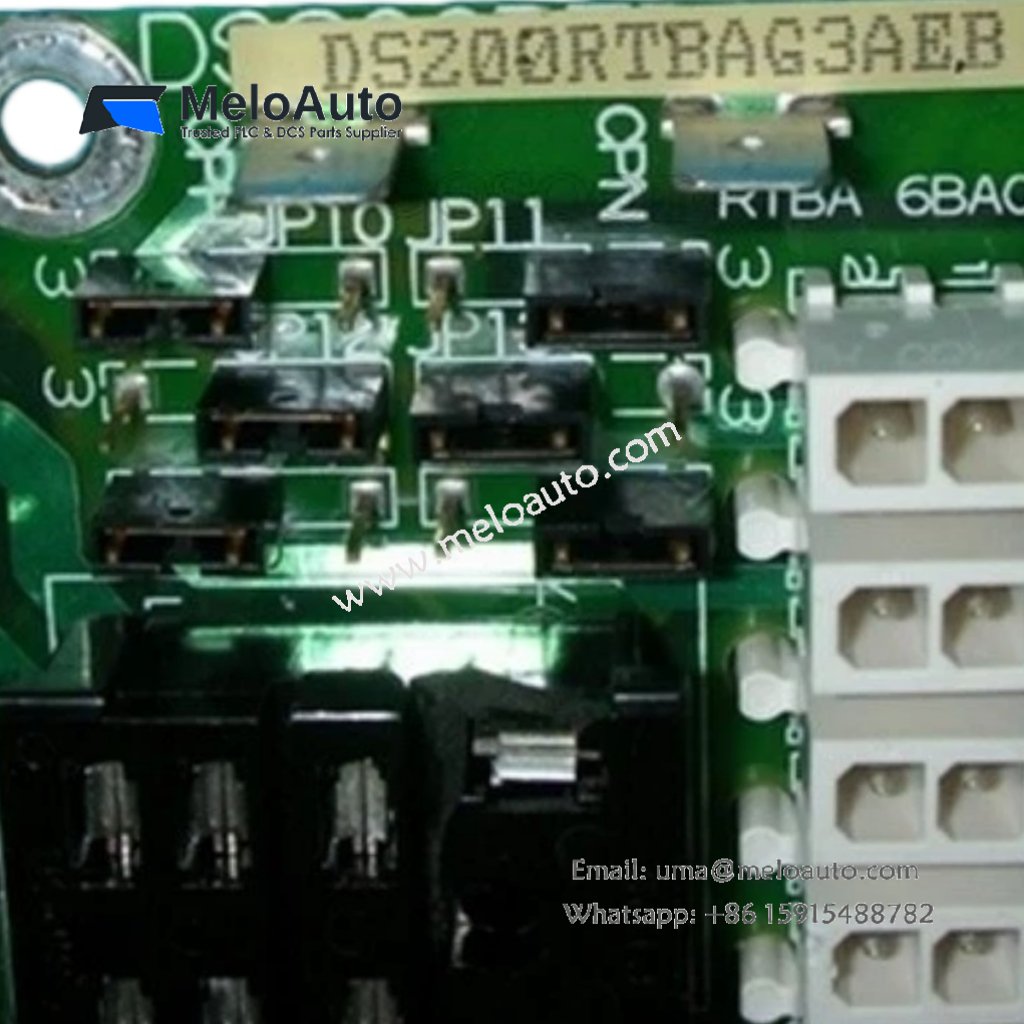

GE Fanuc DS200RTBAG3AEB Relay Terminal Module – 10 Relays, 16 I/O Points

The GE Fanuc DS200RTBAG3AEB is a highly reliable and versatile relay terminal module designed for industrial automation applications. Manufactured by General Electric, this module integrates seamlessly with the GE Fanuc PLC system to provide essential relay and input/output (I/O) connections. Its robust construction ensures durability, making it suitable for a wide range of industrial environments.

This module features 10 relays, including 7 DPDT (double pole, double throw) relays with 2 Form C contacts and 3 relays with 4 Form C contacts. Additionally, it offers 16 discrete I/O points, allowing it to interface effectively with external devices. The DS200RTBAG3AEB supports jumper-selectable control power sources, enabling easy customization for specific application requirements.

Key Features of the GE Fanuc DS200RTBAG3AEB

• Relays:
  • 10 relays in total (7 DPDT relays with 2 Form C contacts, 3 relays with 4 Form C contacts).
  • Jumper-selectable control power for relays.
• I/O Connectors:
  • 16-pin RPL and 2-pin OPTPL connectors for communication with LTBA Board.
  • Jumper-selectable signals on the RPL connector for customization.
• Control Power Stab Connectors:
  • Two stab connectors (CPH and CPN) for control power, jumper-selectable for user needs.
• Pluggable Circuits and Relay Access:
  • CPL to C5PL, Y9PL to Y37PL connectors for external connections.
  • Jumper-selectable control power source for pluggable circuits.

Technical Specifications of the GE Fanuc DS200RTBAG3AEB

Applications of the GE Fanuc DS200RTBAG3AEB

The GE Fanuc DS200RTBAG3AEB is widely used in the following industrial automation applications:

• Machine Automation: Interfaces with industrial machines, providing reliable control and monitoring for various processes.
• Process Control: Facilitates automation in manufacturing, including chemical production, food processing, and other industrial processes.
• Robotics: Integrates into robotic systems to control actuators, sensors, and other components for precise operations.
• Packaging: Supports packaging machinery by providing efficient handling and control of packaging processes.

Benefits of the GE Fanuc DS200RTBAG3AEB

• Flexible I/O Integration: With 16 discrete I/O points and customizable jumper-selectable settings, the module fits seamlessly into a wide range of industrial systems.
• High Reliability: Built to withstand harsh industrial environments, ensuring long-term performance and durability.
• Customizable Control Power: The jumper-selectable control power sources offer the flexibility to adapt to different system requirements.
• Efficient Communication: The 16-pin RPL and 2-pin OPTPL connectors enable smooth and reliable communication with other GE Fanuc components.

Origin, Dimensions, and Weight

• Country of Origin: General Electric, USA.
• Dimensions: 2.5 cm x 10.8 cm x 12.7 cm
• Weight: 0.94 lbs (0.43 kg)
