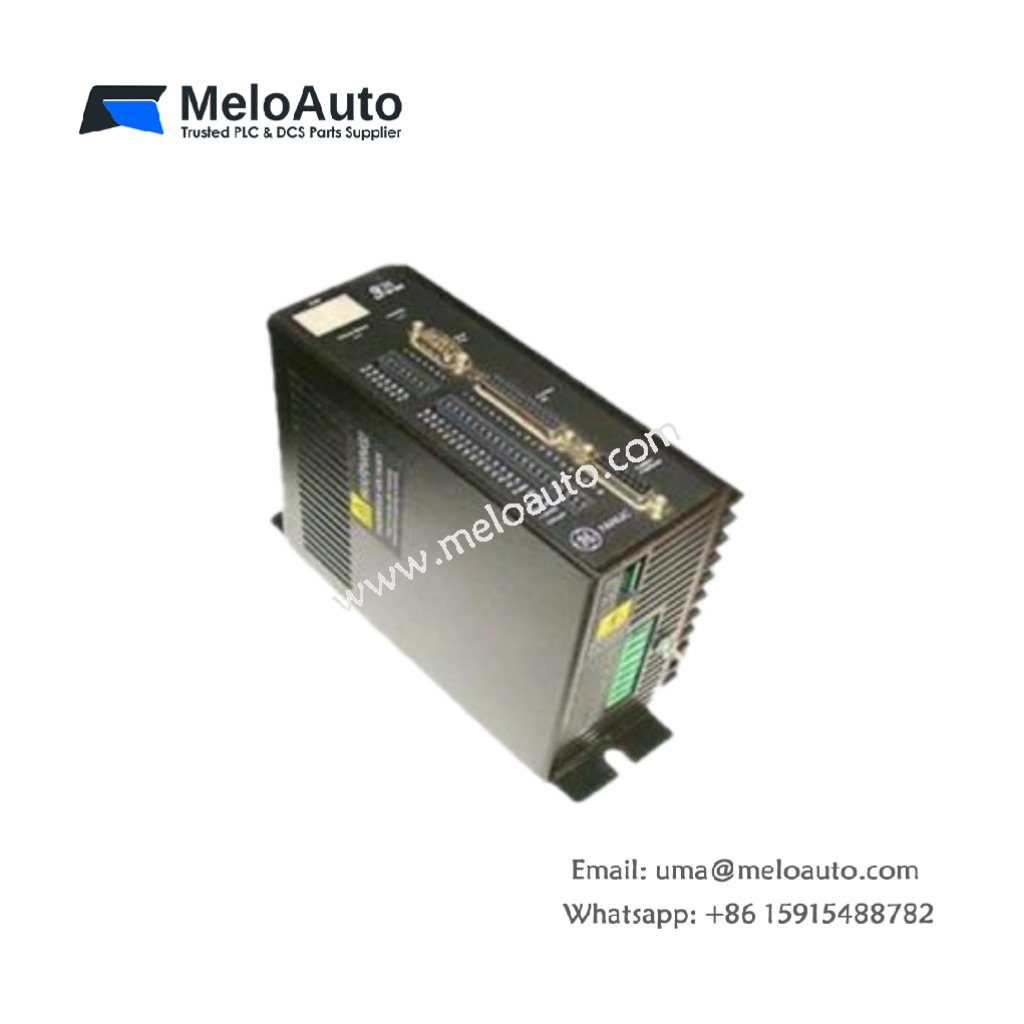

GE DS6800CCID1D1D/DS6815PCDP1B1A I/O Interface

Overview of GE DS6800CCID1D1D/DS6815PCDP1B1A

The GE DS6800CCID1D1D and GE DS6815PCDP1B1A are advanced I/O interfaces developed for industrial automation applications. These devices offer seamless integration with larger control systems, providing both digital and analog input/output capabilities. With robust performance and reliability, they are ideal for applications in demanding industrial environments.

Key Features and Specifications of GE DS6800CCID1D1D/ DS6815PCDP1B1A

Manufacturer: GE Fanuc
I/O Interface: Supports mounting multiple I/O packs for sensor signal digitization and communication with controllers.
Local Processing: I/O packs run on QNX operating system, ensuring faster algorithm execution than the main control system.
Data Acquisition: Each I/O pack includes a dedicated data acquisition board tailored to the input device type.
Communication: Dual 100 MB Ethernet ports provide stable and reliable connectivity for data transmission.
Diagnostics: Infrared transceiver simplifies I/O monitoring, programming host names, and error checking.
Environmental Resistance: Operates efficiently in harsh environments with temperature ranges from -30°C to 65°C.
Safety: Meets Class 1, Div 2 standards, ensuring safe use in hazardous locations.

Technical Specifications of GE DS6800CCID1D1D/DS6815PCDP1B1A

Specification	Details
Processor	32-bit RISC CPU, clocked at 266 MHz
Ethernet	Dual 100 MB full-duplex Ethernet ports
Power	Operates on 28 V DC for energy efficiency
Physical Design	Compact, rugged design for tough industrial settings
Software Support	Windows-based diagnostic tools for configuration
Temperature Range	-30°C to 65°C, designed for harsh environments
Safety Certification	Meets Class 1, Div 2 standards for hazardous areas

Description of GE DS6800CCID1D1D and GE DS6815PCDP1B1A

The GE DS6800CCID1D1D and GE DS6815PCDP1B1A I/O interfaces are optimized for industrial automation systems, ensuring efficient data acquisition and processing. These devices are equipped with dual Ethernet ports for reliable communication and robust diagnostic features, including an infrared transceiver for easy monitoring. The I/O packs integrate local processing capabilities, which enhance real-time data handling and reduce reliance on the main control system.

These interfaces support various industrial applications, including machine control, process control, and robotics. The compact yet rugged design makes them suitable for operation in environments with extreme temperatures, ranging from -30°C to 65°C. Additionally, their Class 1, Div 2 certification makes them suitable for use in hazardous locations.

Applications of GE DS6800CCID1D1D/DS6815PCDP1B1A

Industrial Automation Systems: Provide precise control for automation systems, enhancing efficiency.
Process Control: Ensure effective data acquisition and control of various industrial processes.
Machine Control: Support fast, local data processing, ideal for machine control systems.
Robotics: Enable high-performance data processing in robotic systems, ensuring reliability.

Benefits of GE DS6800CCID1D1D/DS6815PCDP1B1A

Flexibility: Easily configurable with different I/O packs, adapting to various application needs.
Performance: Local processing ensures real-time data acquisition and fast control execution.
Reliability: Rugged design and certifications ensure long-term performance in challenging environments.
Diagnostics: Infrared transceiver simplifies diagnostics, making troubleshooting faster and reducing maintenance costs.
