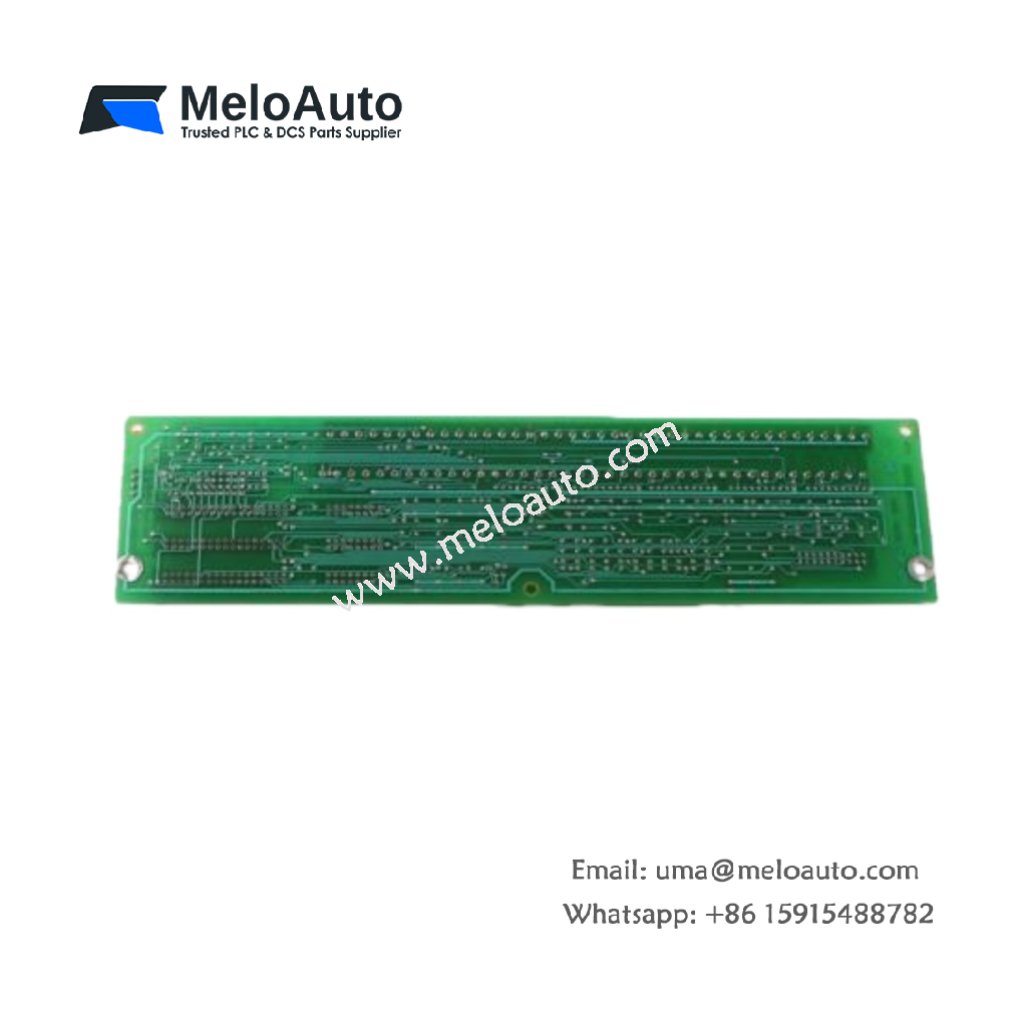

GE DS200TBQBG1ACB Analog I/O Termination Board

The GE DS200TBQBG1ACB is a critical Analog I/O Termination Board designed for use in the GE Mark V Gas Turbine Control System. It facilitates the seamless termination of analog signals coming from the turbine, transmitting them efficiently to the control system for processing. With its robust design and advanced features, this board ensures reliable, high-quality signal transmission, playing a pivotal role in the turbine’s operational efficiency.

Key Features of the GE DS200TBQBG1ACB

• Part Number: DS200TBQBG1ACB
• Manufacturer: General Electric
• System: GE Mark V Gas Turbine Control System
• Type: Analog I/O Termination Board
• Signal Transmission: Transmits analog signals from the turbine to the control system for processing.
• Design: Engineered to provide durability and reliable signal integrity in industrial environments.
• Customization: Configurable with 15 jumpers, allowing system-specific adjustments.
• Signal Quality: Provides enhanced signal conditioning to improve the quality of analog signals.

Technical Specifications

Description

The GE DS200TBQBG1ACB serves as a crucial component in the GE Mark V Gas Turbine Control System, offering seamless signal termination for analog inputs. This board is designed to efficiently process signals from the turbine, ensuring optimal transmission to the control system. It features 154 terminals, along with multiple connectors, including three 34-pin and three 16-pin connectors, providing excellent connectivity options for complex systems.

With 15 configurable jumpers, the DS200TBQBG1ACB offers enhanced flexibility, allowing customization based on specific operational needs. The built-in signal conditioning technology improves the integrity and clarity of analog signals, minimizing noise and ensuring accuracy. Additionally, it features a dedicated grounding point, safeguarding against electrical interference and ensuring optimal signal performance.

Applications

• Turbine Control Systems: Integral to the GE Mark V Gas Turbine Control System for processing analog signals from turbines.
• Signal Conditioning: Ideal for improving signal integrity in industrial automation and control systems.
• Industrial Automation: Ensures reliable signal transmission in harsh industrial environments where accuracy is critical.

Advantages

• Customizable: Offers 15 jumpers to tailor configurations to specific system requirements.
• High Signal Integrity: Advanced signal conditioning ensures the reliable transmission of analog signals.
• Robust Design: Built for long-term durability in demanding industrial environments.
• Grounding: Provides dedicated grounding to minimize signal interference and enhance overall performance.
