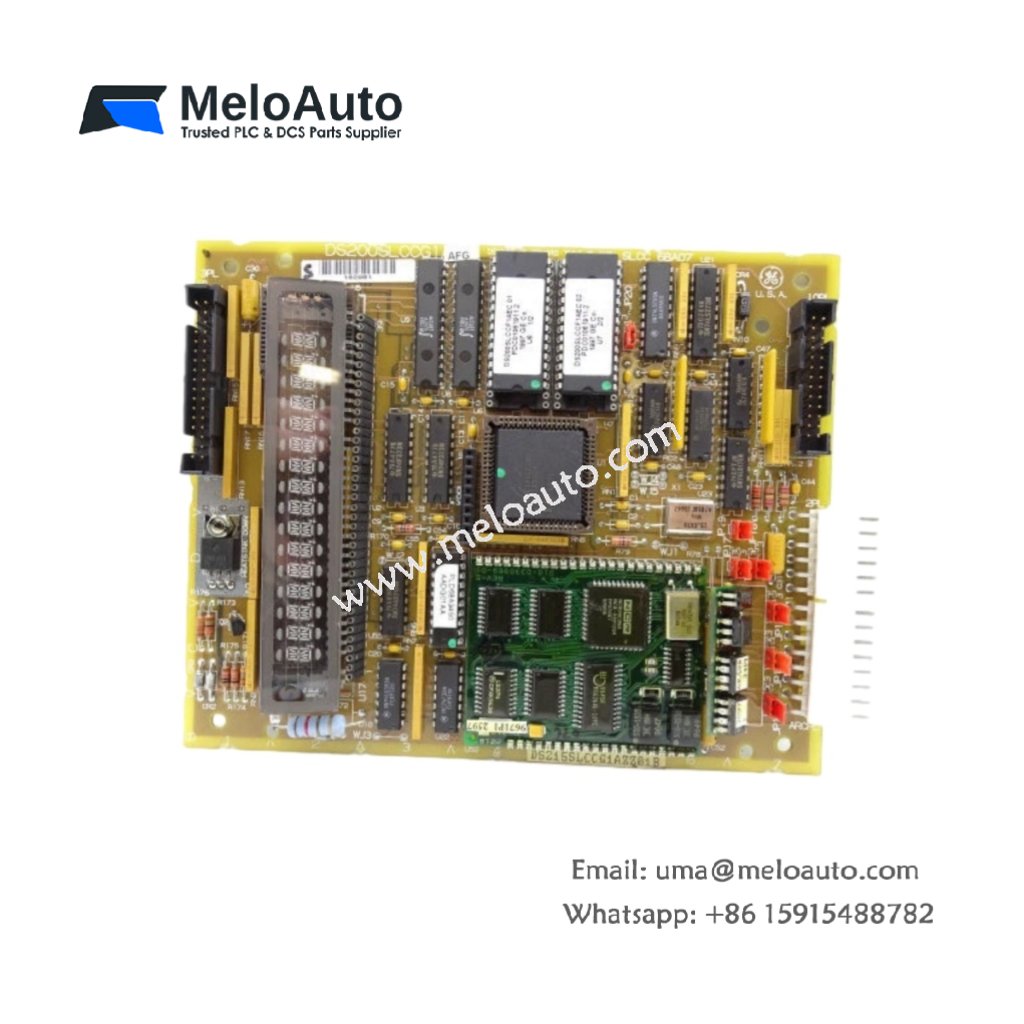

GE DS200SLCCG1AFG LAN Communication Board

The GE DS200SLCCG1AFG is a replacement LAN Communication Board designed specifically for the Mark V Turbine Control System. This board is a part of a legacy product line developed by General Electric for managing industrial gas and steam turbine systems. Although now considered obsolete, the DS200SLCCG1AFG remains an essential component for existing Mark V systems that are still in operation.

Key Features and Specifications:

• Brand: General Electric (GE)
• Model Number: DS200SLCCG1AFG
• Series: Mark V Turbine Control System
• Type: LAN Communication Board
• Function: Replacement for original LAN communication card
• Revisions: Includes three significant product revisions
• Mounting: Attaches to standoffs located on the SDCC board
• Connectors: Interfaces with the keyboard via the KPPL connector
• PCB Coating: Normal-style coating for daily wear protection
• Voltage Suppression: Handled by internal assembly with capacitors, resistors, and transistors
• Dimensions: Standard Mark V Series PCB dimensions
• Weight: Approx. 0.5 kg (weight estimate)

Description:

The GE DS200SLCCG1AFG serves as a replacement LAN Communication Board for GE’s Mark V turbine control systems. This board plays a key role in managing the communication processes between various components of the turbine control system. Though part of an older series, the DS200SLCCG1AFG still offers vital support in maintaining operations for legacy turbine systems.

It is important to note that the DS200SLCCG1AFG does not include software in the U6 and U7 EPROMs by default. These sockets are left empty, so customers must either move EPROMs from their old board or order a replacement that comes pre-installed with the necessary EPROMs (such as the DS215 level board).

The DS200SLCCG1AFG mounts securely to the SDCC board, connecting seamlessly with the system’s keyboard via the KPPL connector. The board is built using the same Mark V Series hardware components, including various capacitors, resistors, transistors, and integrated circuits, ensuring compatibility and optimal performance in turbine control applications.

Moreover, the DS200SLCCG1AFG features a robust PCB coating, providing essential protection to the board’s components. This layer shields the components from daily wear and tear, prolonging the lifespan of the device and enhancing its reliability in industrial environments.

Hardware Specifications:

• Terminal Type: Connects to the SDCC board via standoffs
• EPROM Compatibility: Empty U6 and U7 EPROM sockets (order with EPROMs if needed)
• Voltage Suppression: Handled by internal assembly components
• Connector: Interfaces with the system’s keyboard via the KPPL connector
• Protection: Coated with a standard Mark V Series PCB coating for added durability
• Revision Information:
  • A-rated primary functional revision
  • F-rated secondary functional revision
  • G-rated artwork configuration revision

Features and Benefits:

• Legacy Compatibility: Ideal for replacing Mark V turbine control boards in older systems.
• Seamless Integration: Easy installation with SDCC board mounting and KPPL connector interface.
• Durable Protection: Coated with a robust layer to resist daily wear and environmental factors.
• Customizable EPROM Configuration: Allows customers to either transfer EPROMs from old boards or order pre-installed versions.
• Proven Technology: Built with the same components as other Mark V Series boards, ensuring reliable performance.
