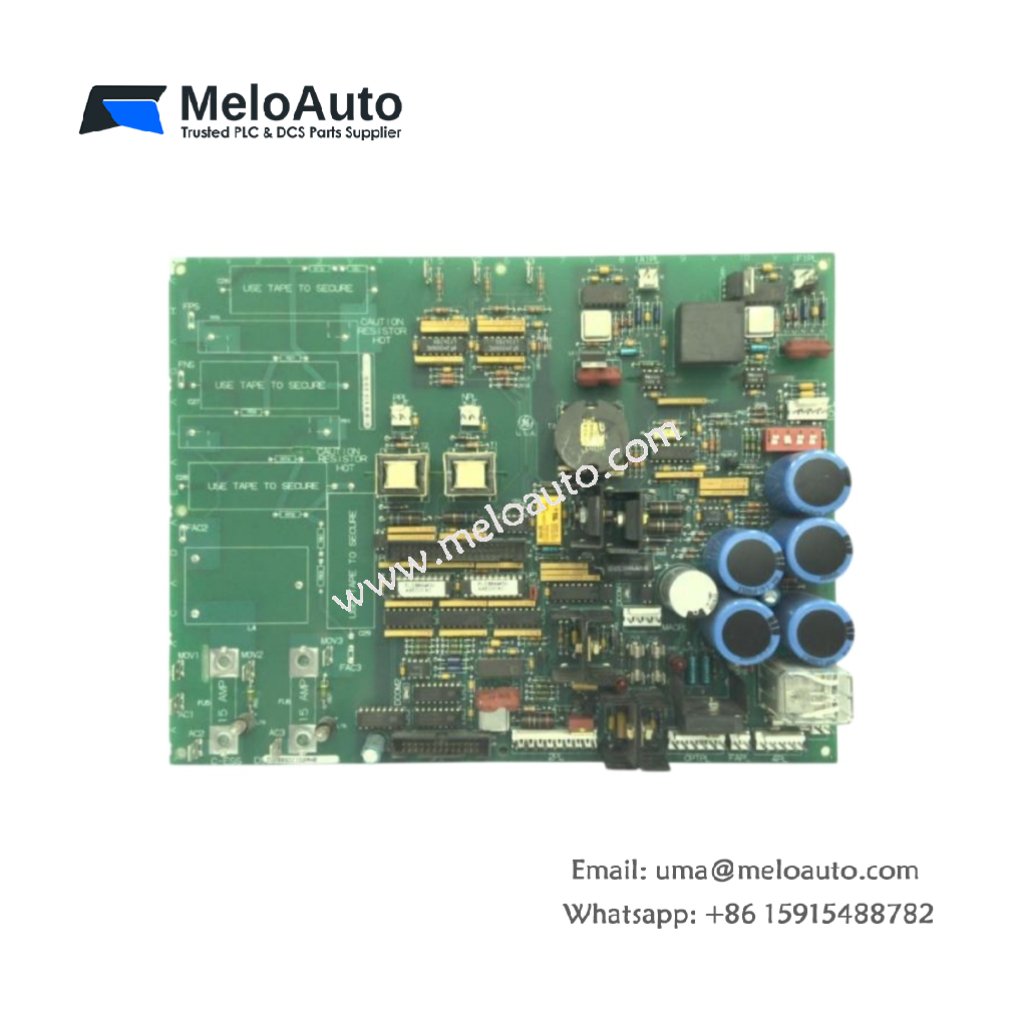

GE DS200SDCIG2A DS200SDCIG2AFB | Power Supply Control

The GE DS200SDCIG2A DS200SDCIG2AFB belongs to the Mark V series. General Electric designed this board as a power supply control unit. This component regulates voltage output from the main supply. It also monitors current levels for protection.

Technical Specifications

The table below lists all key parameters for the GE DS200SDCIG2A DS200SDCIG2AFB.

Parameter	Specification
Manufacturer	General Electric (GE)
Full Model	DS200SDCIG2A / DS200SDCIG2AFB
Product Type	Power Supply Control Board
Series	Mark V
Width	10.0 inches (25.4 cm)
Height	7.0 inches (17.8 cm)
Weight	1.0 lb (0.45 kg)
Component Count	Over 145 surface-mount devices
Main Interface	One 64-pin male DIN connector
Voltage Monitor Channels	4 differential inputs
Current Monitor Channels	2 shunt-based inputs
PWM Control Outputs	4 channels for regulation
Energy Storage	Ceramic and electrolytic capacitors
Status Indicators	Three LEDs (power, regulate, fault)

Power Regulation Features

The GE DS200SDCIG2A DS200SDCIG2AFB uses a rugged four-layer PCB. Over 145 resistors, capacitors, and op-amps monitor power conditions. A single 64-pin DIN connector links this board to the backplane. Consequently, regulation commands reach the power stage instantly. Three onboard LEDs show power, regulate, and fault status. Moreover, electrolytic capacitors store energy for stable feedback loops.

Monitoring and Control Capabilities

You get four differential voltage monitor channels on this board. These channels measure output voltages continuously. The GE DS200SDCIG2A DS200SDCIG2AFB also provides two shunt-based current monitor inputs. Four PWM control outputs adjust the power stage for stable regulation. Therefore, this board maintains tight voltage and current control for sensitive loads.

Power and Energy Storage

You must install this board inside a protected Mark V cabinet. The backplane supplies 5 VDC and 24 VDC to the GE DS200SDCIG2A DS200SDCIG2AFB. Ceramic capacitors filter high-frequency noise on analog inputs. Electrolytic capacitors store energy for short hold-up during transients. As a result, the board delivers accurate regulation consistently.

Mechanical Layout

This power supply control board measures exactly 25.4 cm in width. Its height reaches 17.8 cm. The total weight equals just 0.45 kg. As a result, this board saves valuable rack space. The lightweight design also reduces stress on the backplane connector. Always handle this control board by its edges. This precaution prevents electrostatic discharge damage.

Installation Context

This board works alongside other Mark V power supply and I/O cards. Its compact size allows easy placement near the main regulator. The robust design handles continuous industrial monitoring. Choose the GE DS200SDCIG2A DS200SDCIG2AFB for your power supply regulation needs.
