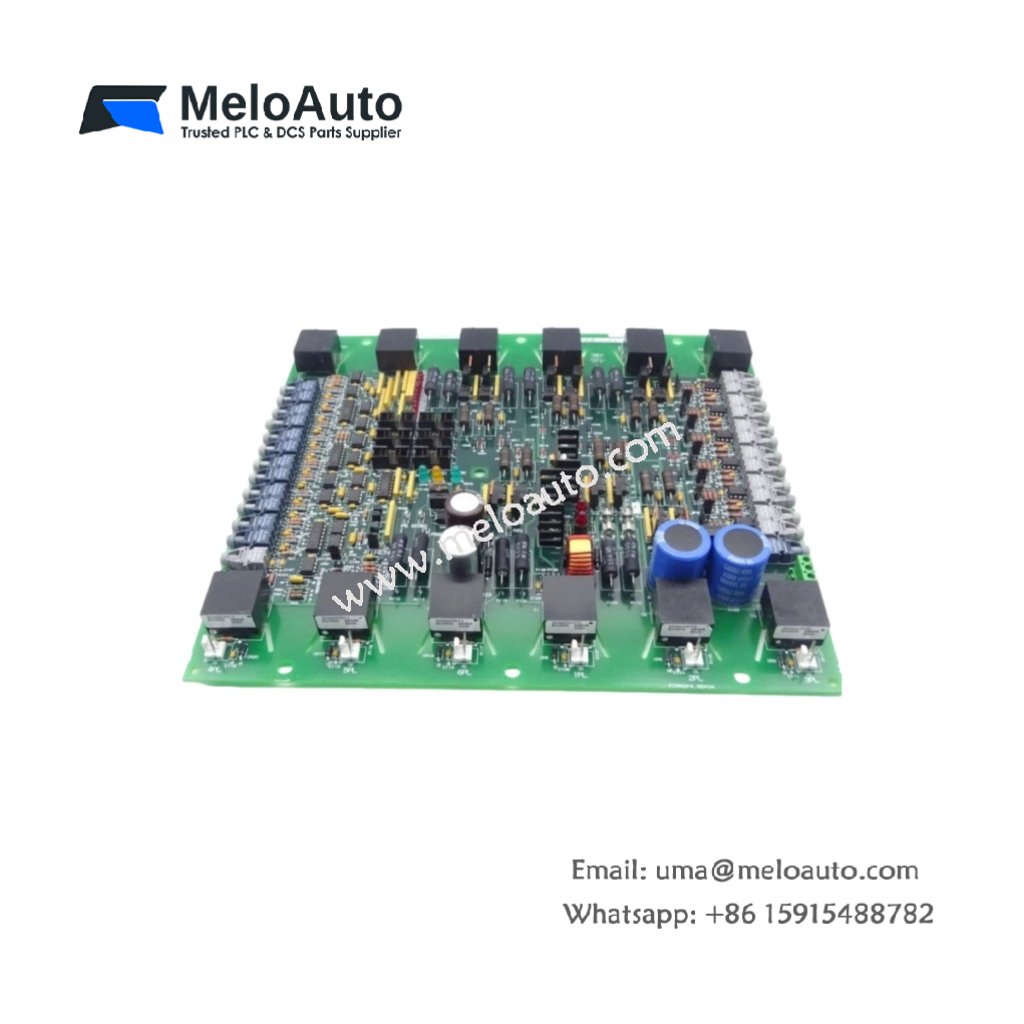

GE DS200FCRRG1AKD Firing Circuit Control Board

The GE DS200FCRRG1AKD is a critical component in the Mark V turbine control system. This firing circuit control board is designed to ensure precise firing control and efficient conduction management for power conversion. By maintaining stable turbine operation, the DS200FCRRG1AKD enhances the performance and reliability of your turbine system.

Key Features and Specifications

• Brand: General Electric (GE)
• Model Number: DS200FCRRG1AKD
• Series: Mark V Turbine Control
• Type: Firing Circuit Control Board
• Functional Acronym: FCRR
• PC Board Coating: Normal coating
• Revisions: Multiple revisions available (3 documented)
• Terminal Block: 1 block supporting up to 95 signal wires
• Connectors: 10 two-pin connectors (labeled PLxx)
• Ribbon Cables: 2 integrated flat cables for system integration
• Programmable Logic Device: Built-in, offering flexible application support
• Dimensions: Standard PCB size (approx. 330 x 200 mm)
• Weight: 0.9 kg (approx.)

Description:

The GE DS200FCRRG1AKD is an essential part of the Mark V turbine control system, offering precise firing control and conduction management. It ensures efficient power conversion, which is critical for the stable operation of turbines. The module features an integrated programmable logic device (PLD), providing enhanced flexibility for various turbine applications.

This control board is designed to be easily integrated into the Mark V turbine control architecture. It includes a terminal block that supports up to 95 signal wires, and 10 two-pin connectors (PLxx), making it highly adaptable to diverse system requirements. Two integrated flat ribbon cables simplify system integration, reducing installation time and effort.

Manufactured with durable materials, the DS200FCRRG1AKD is built to withstand the harsh conditions of industrial environments. This makes it a reliable and long-lasting component for turbine control systems. The board also offers ease of replacement, directly fitting into existing Mark V systems and minimizing downtime during maintenance.

Features and Benefits:

• Precise Control: The DS200FCRRG1AKD ensures accurate firing and conduction management, optimizing turbine performance.
• System Integration: Designed specifically for GE Mark V turbine control architecture, ensuring seamless operation.
• Flexible Connectivity: Equipped with multiple connectors and ribbon cables, it supports easy integration into existing setups.
• Programmable Logic: The built-in programmable logic device (PLD) offers adaptability for different turbine applications.
• Durable Construction: Built for industrial environments, ensuring reliability and longevity.
• Ease of Replacement: Direct fit for Mark V systems, minimizing downtime and simplifying system upgrades.
• OEM Quality: Genuine GE component, ensuring compatibility and superior performance.

Technical Specifications:
