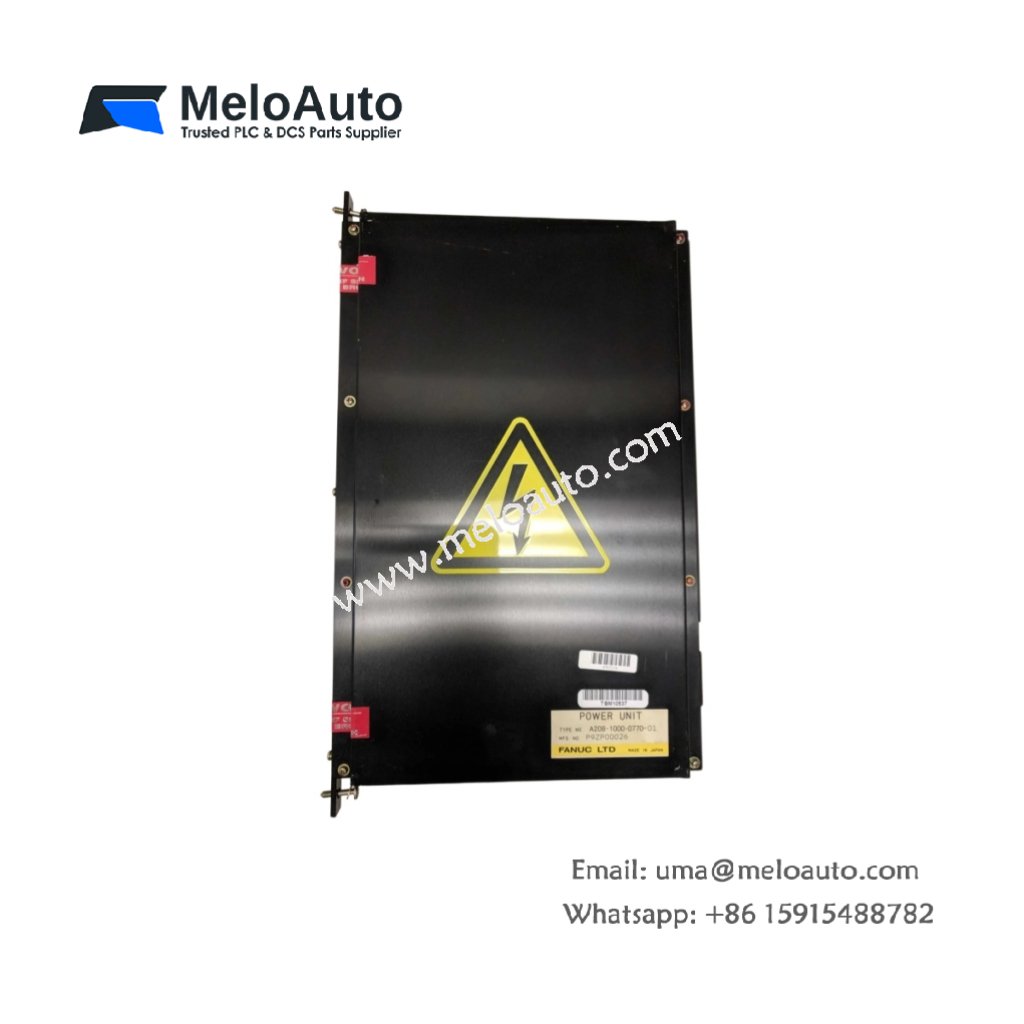

GE A20B-1000-0770-01 Power Unit for GE Fanuc CNC Systems

The GE A20B-1000-0770-01 supplies regulated DC power to GE Fanuc CNC control racks. You can install this unit into the dedicated power slot of Series 0 or Series 10 controllers. It converts 200 V AC or 230 V AC into stable DC outputs. This unit supports CNC processors, servo cards, and I/O modules reliably.

Technical Specifications and Hardware Configuration

This power unit measures 260 mm in height. Its width reaches 140 mm, and the depth equals 180 mm. The GE A20B-1000-0770-01 weighs approximately 2.8 kilograms. A single internal PCB carries all rectification, filtering, and regulation circuits. The unit contains five electrolytic capacitors for bulk energy storage. These capacitors provide 40 milliseconds of hold-up time during input dips. One 4-pin screw terminal block accepts AC input wiring. A dedicated 12-pin connector delivers multiple DC outputs to the backplane.

Electrical Ratings and Performance Characteristics

The GE A20B-1000-0770-01 accepts input voltages from 180 V AC to 253 V AC. It operates at line frequencies of 50 Hz or 60 Hz automatically. This unit delivers +5 V DC at 12 A, +12 V DC at 2 A, and -12 V DC at 1 A. Output ripple stays below 25 mV peak-to-peak at full load. Efficiency reaches 84 percent under typical operating conditions. Consequently, this unit powers small to medium CNC configurations effectively. Overvoltage protection clamps each output at safe levels. Short-circuit protection shuts down individual outputs during wiring faults.

Installation and Operational Guidelines

You must slide this unit into the leftmost slot of the CNC rack. Transitioning to wiring, use 2.5 mm² stranded wire for the AC terminals. A green front LED indicates normal output voltage presence. The internal fan requires 25 mm of free space at the intake vents. For safety, disconnect mains power before removing the unit. The operating temperature range sits between 0°C and 45°C reliably.
