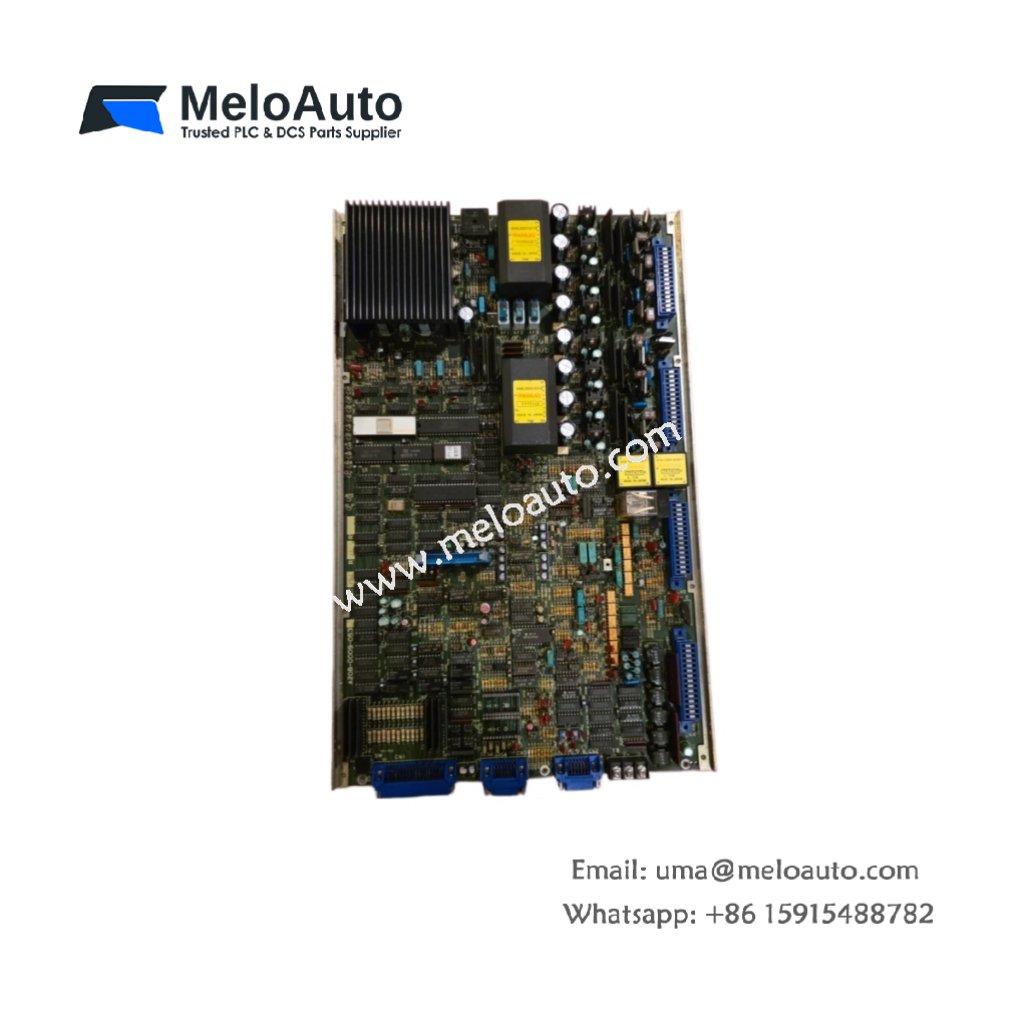

GE A20B-0009-0530 AC Spindle Control Board

The GE A20B-0009-0530 AC Spindle Control Board is designed to deliver high-precision control for spindle drives in CNC machines. This advanced spindle drive board ensures smooth operation and enhanced performance for various CNC applications. Engineered to be compatible with the A06B-6044-HXXX series spindle drives, it guarantees seamless integration and reliable performance in demanding industrial environments.

Key Features of the GE A20B-0009-0530 AC Spindle Control Board

The GE A20B-0009-0530 provides essential functions for AC spindle drive control. It offers precise control over spindle motors, allowing CNC machines to operate at optimal speeds with minimal vibration. Designed for the A06B-6044-HXXX series spindle drives, this board delivers reliable and consistent power to the spindle drive system, ensuring maximum efficiency in high-speed machining operations.

Its high-quality construction ensures long-lasting durability, making it ideal for both light and heavy-duty industrial applications. The GE A20B-0009-0530 also offers interchangeability with 0530-0539 models, enhancing flexibility and reducing maintenance complexity.

Technical Specifications

Feature	Description
Model	GE A20B-0009-0530
Type	AC Spindle Control Board
Compatibility	A06B-6044-HXXX Series Spindle Drives
Dimensions (L x W x H)	200 mm x 120 mm x 60 mm
Weight	0.9 kg
Input Voltage	220 VAC
Current Consumption	1.5 A
Mounting Type	PCB Mountable
Operating Temperature	0°C to 60°C
Compliance	UL, CE, RoHS Certified

Why Choose the GE A20B-0009-0530 AC Spindle Control Board?

The GE A20B-0009-0530 provides precise control over the spindle drive system, making it an excellent choice for CNC applications. With its 220 VAC input voltage and 1.5 A current consumption, it ensures stable and efficient operation while minimizing power loss.

This spindle drive board is designed to fit seamlessly with the A06B-6044-HXXX series spindle drives, offering a high level of compatibility. Additionally, its ability to interchange with 0530-0539 models allows for easy replacement, reducing downtime during maintenance.

The GE A20B-0009-0530 offers a durable design that can withstand varying environmental conditions, with an operating temperature range of 0°C to 60°C. Whether you are working with light or heavy machining, this control board ensures smooth and precise spindle operation.

Applications

The GE is perfect for a wide range of industrial applications, including:

CNC machining centers
Precision spindle drive systems
High-speed machining operations
Automated manufacturing processes

Installation and Maintenance

Installing the GE is simple due to its PCB mountable design, which allows for easy integration into existing systems. The board’s modular nature also makes it easy to replace, reducing system downtime during maintenance or repairs.

With its high-quality construction and compliance with UL, CE, and RoHS standards, the GE A20B-0009-0530 ensures reliable and safe operation, reducing the need for frequent maintenance.

Conclusion

In conclusion, the GE AC Spindle Control Board is an essential component for high-performance CNC machining systems. Its precise spindle control, compatibility with the A06B-6044-HXXX series, and interchangeability with 0530-0539 models make it a reliable and efficient solution for demanding industrial applications. Choose the GE A20B-0009-0530 for smooth, reliable spindle operation and optimal machining performance.
