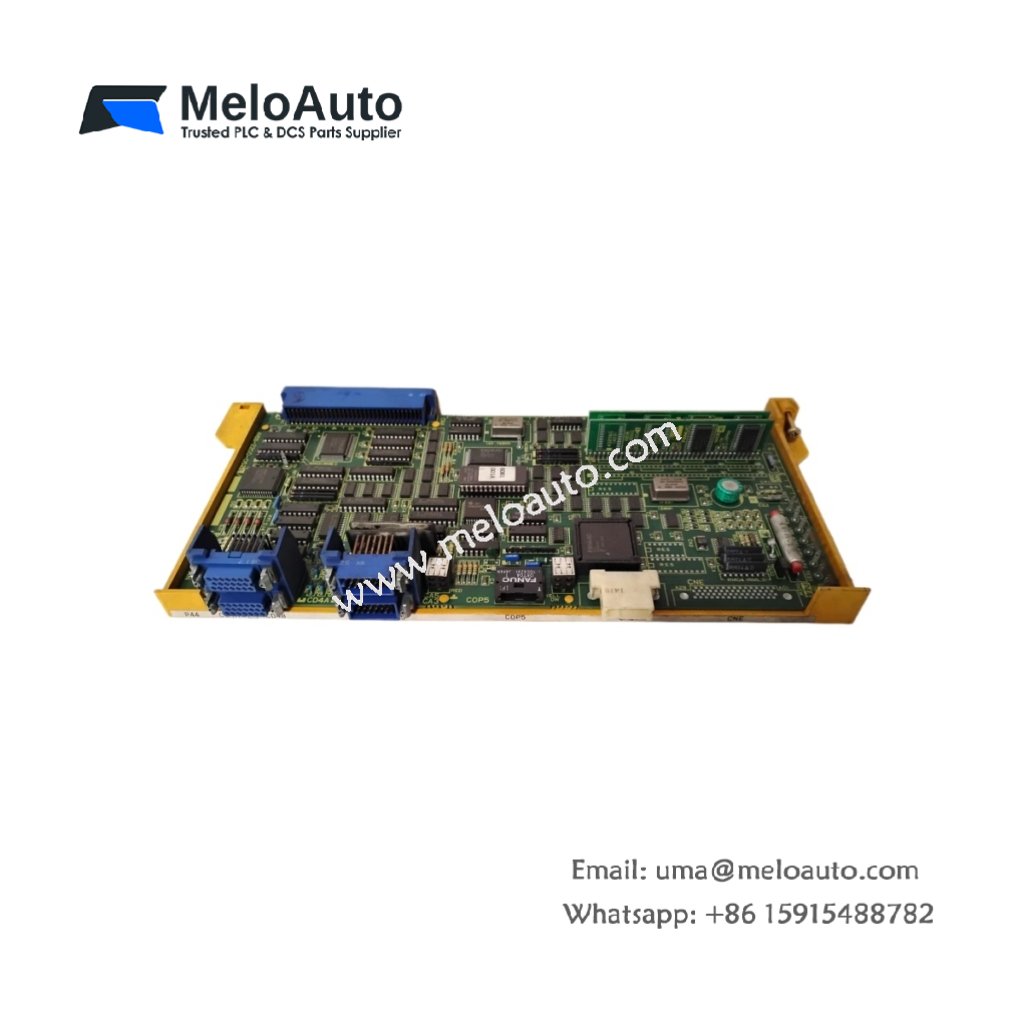

The GE A16B-2200-0524 serves as a control circuit board for GE Fanuc CNC systems. You can install this board into the main rack of Series 15 or 16 controllers. It processes axis motion commands and servo feedback signals. This PC board suits machining centers, lathes, and robotic applications.
Technical Specifications and Hardware Layout
This PC board measures 260 mm in height. Its width reaches 210 mm, and the depth equals 35 mm. The GE A16B-2200-0524 weighs approximately 0.55 kilograms. A single multilayer PCB holds all processing and interface circuits. The board contains no energy storage capacitors or batteries. Four 34-pin ribbon connectors provide encoder feedback inputs. Two 50-pin headers handle servo command outputs to amplifiers. Six test points allow signal monitoring with oscilloscope probes.
| Parameter | Specification |
|---|---|
| Model | GE A16B-2200-0524 |
| Category | PC Board |
| Dimensions (H x W x D) | 260 mm x 210 mm x 35 mm |
| Weight | 0.55 kg |
| PCB Layers | 6 |
| Energy Storage | None |
| Encoder Connectors | 4 x 34-pin ribbon |
| Servo Outputs | 2 x 50-pin headers |
| Test Points | 6 |
| Temperature Range | 0°C to 55°C |
Processing Capabilities and Compatibility
The GE A16B-2200-0524 controls up to four axes of simultaneous motion. It interfaces with AC or DC servo amplifiers from GE Fanuc. This board reads encoder feedback at frequencies up to 500 kHz. Consequently, it supports high-speed machining and precise positioning. The board generates analog command voltages from -10 V to +10 V. A built-in watchdog circuit disables outputs during processor faults. The board stores configuration parameters in onboard EEPROM memory.
Installation and Diagnostic Features
You must insert this board firmly into a dedicated CNC rack slot. Transitioning to wiring, route encoder cables away from motor power cables. The board includes LED indicators for axis enable and fault status. For troubleshooting, use the six test points with a multimeter. Always power off the system before removing or inserting the board. The operating temperature range spans from 0°C to 55°C reliably.
