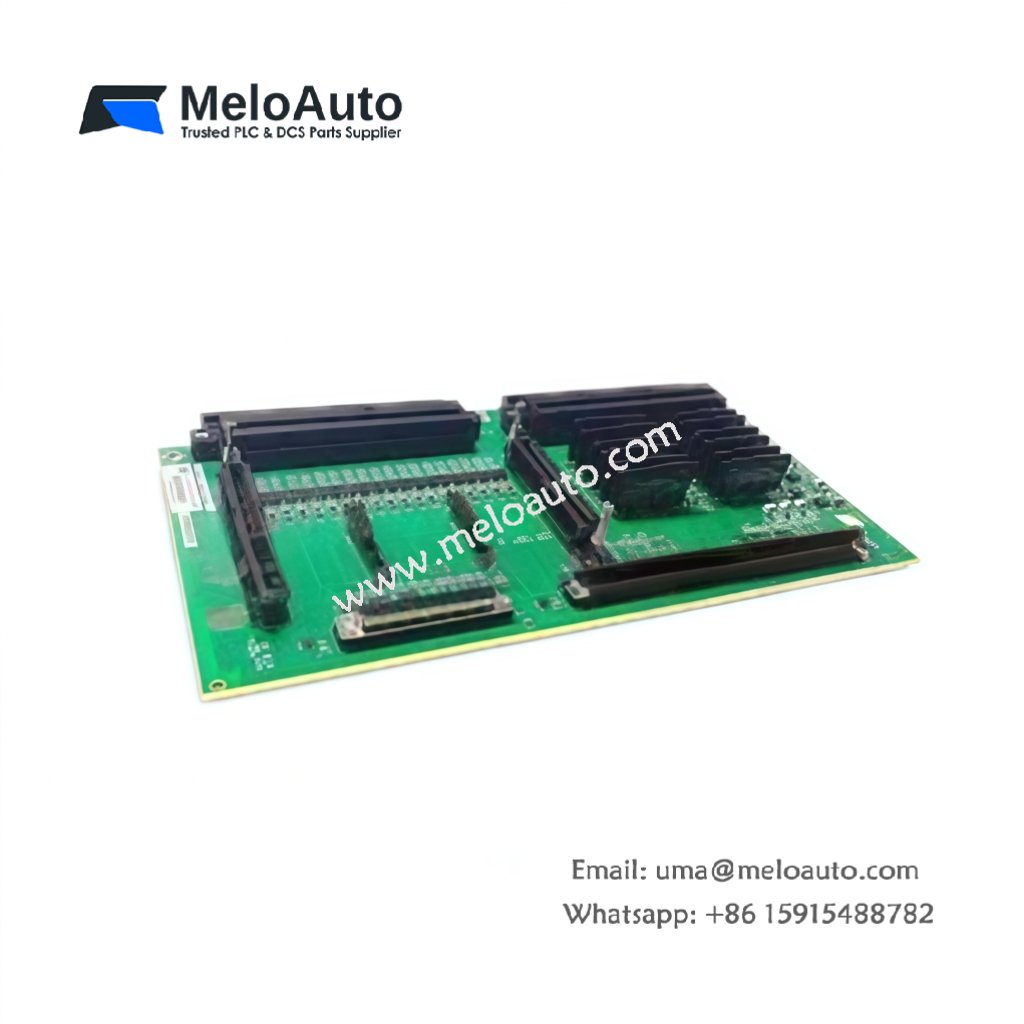

GE A16B-2200-0210/04A: Multi-Channel Serial Port Board for CNC Systems

Core Function of This Serial Port Board

The GE A16B-2200-0210/04A provides additional serial communication channels for CNC controllers. This serial port board expands the host system’s connectivity for peripheral devices. It handles data exchange with programmers, printers, and barcode readers. Consequently, the module enables flexible integration with factory data collection systems.

Physical Dimensions and Board Construction

This serial port board measures 210 mm in total length. Its width reaches 175 mm for a mid-size PCB form factor. The board thickness stands at 20 mm including all component heights. You will find 267 discrete components on this four-layer fiberglass substrate. These include UART controllers, line drivers, and isolation circuits. The GE A16B-2200-0210/04A weighs approximately 295 grams for secure mounting.

Serial Port Configuration and Channels

The GE A16B-2200-0210/04A offers four independent RS-232 serial ports. Each port uses a standard 9-pin D-sub male connector. The board also includes two RS-422 ports for long-distance communication. All ports support full-duplex data transmission simultaneously. A configuration header allows individual port enable or disable settings.

Communication Parameters and Baud Rates

This serial port board supports baud rates from 300 to 115.2 kbps. Each port features independent baud rate generators. The UART controllers include 16-byte FIFO buffers for each direction. Data formats include 7 or 8 data bits with parity options. The board handles 1 or 2 stop bits per character. Flow control supports both hardware (RTS/CTS) and software (XON/XOFF) methods.

Connector Types and Pin Assignments

The GE A16B-2200-0210/04A uses four 9-pin D-sub connectors for RS-232 ports. Two 9-pin D-sub connectors serve the RS-422 ports. A single 34-pin ribbon cable header connects to the main CNC controller. The board also includes a 4-pin power header for auxiliary supply. Gold-plated contacts resist corrosion and ensure signal integrity. Each D-sub connector includes threaded inserts for secure cable locking.

Driver Circuits and Signal Levels

This serial port board uses dedicated line driver ICs per port. The RS-232 drivers produce ±12 V output signals for reliable transmission. Receiver inputs withstand ±25 V without damage to the board. The RS-422 ports use differential drivers for noise immunity. These drivers support cable runs up to 1,200 meters in length. All ports include electrostatic discharge protection on the connector pins.

Status Indicators and Diagnostic Features

The GE A16B-2200-0210/04A provides six LED status indicators. Four green LEDs show data activity on each RS-232 port. Two yellow LEDs indicate RS-422 port transmission status. The board also includes a red power LED for supply verification. A set of eight test points allows oscilloscope monitoring of critical signals. The module performs loopback self-tests during system power-up.

Energy Storage and Power Requirements

The GE A16B-2200-0210/04A draws 180 mA from a 5 V DC logic supply. It also requires 80 mA from a ±12 V DC supply for RS-232 drivers. The board incorporates six 22 µF tantalum capacitors for voltage filtering. Total stored energy reaches approximately 0.03 joules at nominal voltage. The module dissipates 1.8 W of heat during normal operation.

Installation and Configuration Notes

You must install this board in an available CNC rack slot. Always configure the port enable jumpers before inserting the board. Then, connect each peripheral device with a shielded serial cable. The module requires address assignment through the CNC configuration software. Regular verification of connector screws prevents intermittent communication failures over time.
