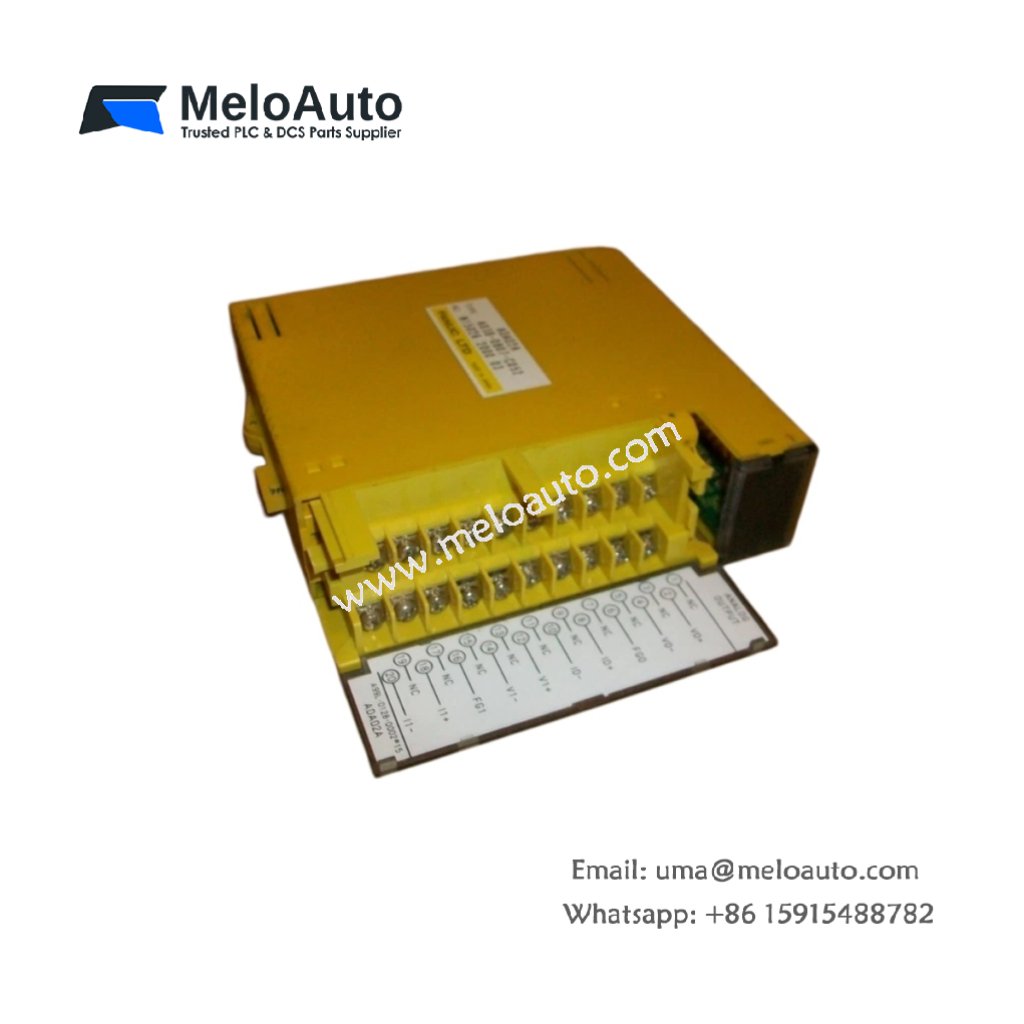

GE A03B-0807-C052 Analog Output Module

This module delivers reliable analog signal conversion for automated systems. It bridges the gap between digital controllers and field actuators seamlessly. Consequently, it ensures smooth operation in demanding manufacturing environments.

Technical Specifications and Physical Parameters

The GE A03B-0807-C052 features a compact yet robust housing design. Its dimensions measure 12.5 cm in width and 15 cm in depth. The unit weighs approximately 0.45 kg for easy handling. It uses a single, high-density 20-pin terminal block interface. This design simplifies wiring during field installation or replacement.

Parameter	Specification
Product Model	A03B-0807-C052
Product Type	Analog Output Module
Dimensions (W x H x D)	12.5 cm x 7.6 cm x 15 cm (4.9″ x 3.0″ x 5.9″)
Weight	0.45 kg (1.0 lbs)
Interface Type	1 x 20-pin Removable Terminal Block
Number of Components	Single PCB Assembly with Heat Sink
Output Channels	4 Isolated Analog Channels
Output Signal Range	4-20 mA or 0-10 VDC (Configurable)
Resolution	14-Bit (0.006% of Full Scale)
Power Consumption	2.5 W Max (from Backplane)
Internal Energy Storage	220 µF @ 35V Filter Capacitor
Operating Temperature	0°C to 60°C (32°F to 140°F)

Functional Integration and Energy Storage

The module draws all required power directly from the backplane without external supplies. Internal capacitors store enough energy to maintain signal integrity during brief power dips. This feature prevents output spikes during system startup or shutdown cycles. Moreover, the GE A03B-0807-C052 supports hot-swappable installation for minimal downtime.
