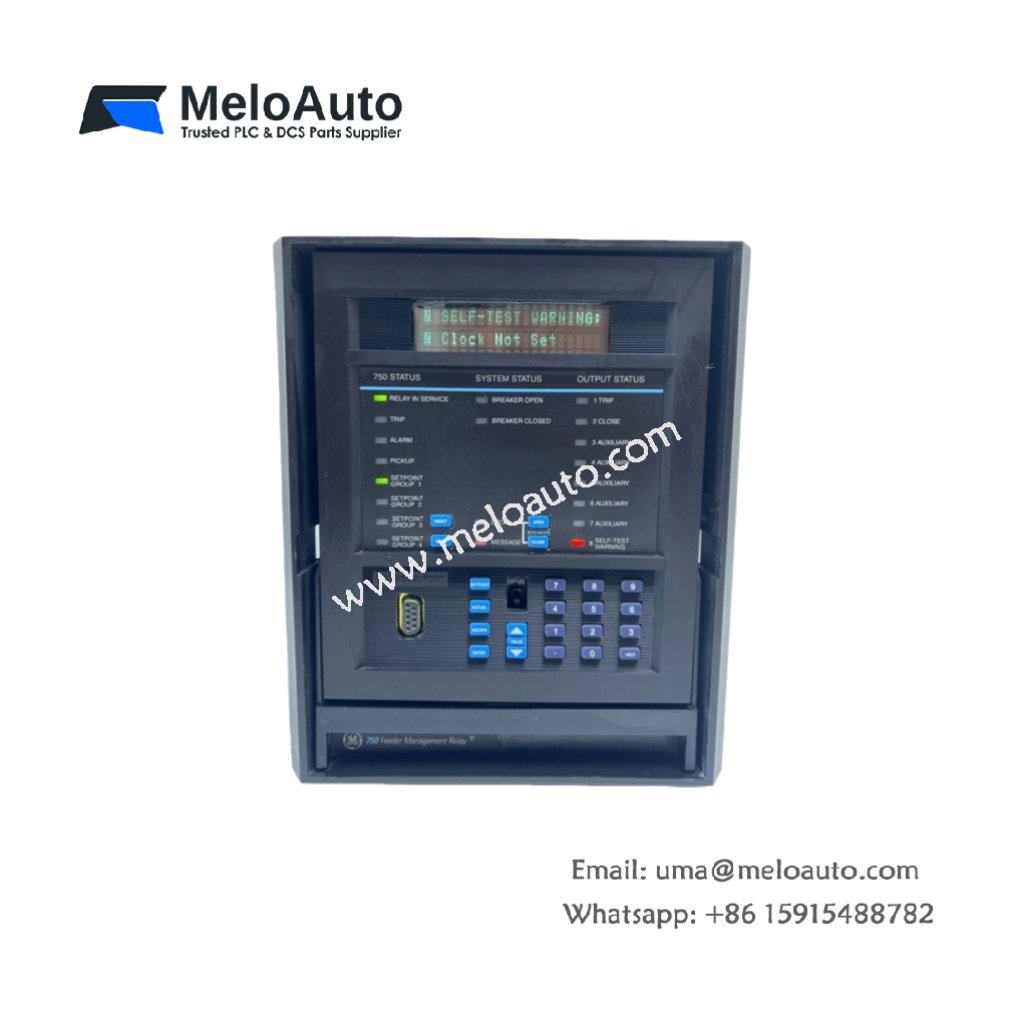

GE 750-P5-G5-S5-HI-A1-R-E Feeder Management Relay

The GE 750-P5-G5-S5-HI-A1-R-E is an advanced feeder management relay designed to offer comprehensive protection, control, and monitoring for electrical feeders. It supports a wide range of protection functions, such as overcurrent, ground fault, and sensitive ground fault protection, ensuring consistent and reliable system operation across various applications.

Key Features & Specifications

Specification	Details
Manufacturer	GE Multilin
Model	750-P5-G5-S5-HI-A1-R-E
Module Type	Feeder Management Relay
Protection Functions	Phase, ground, and sensitive ground fault protection
Autoreclose Capability	Multi-shot autoreclosing
Monitoring	Breaker wear monitoring, event recording, waveform capture
Output Control	Eight (8) analog outputs (0-1 mA)
Breaker Status Indication	Red LED for closed breaker indication
Display	Large LCD for improved visibility and control
Power Supply Range	88-300VDC / 70-265VAC, 48-62 Hz
Communication	Supports multiple protocols for SCADA system integration

Product Description

The GE relay is engineered for efficient feeder protection and control in industrial electrical systems. It offers phase, ground, and sensitive ground fault protection, safeguarding your system from critical failures. The relay supports multi-shot autoreclosing, ensuring that any temporary faults in the feeder system are automatically cleared without human intervention.

Additionally, this relay features advanced monitoring capabilities, including breaker wear monitoring, event recording, and waveform capture. These features allow operators to quickly identify issues and take appropriate action, enhancing system reliability. The large LCD display offers improved visibility for easier monitoring and control.

With eight analog outputs (0-1 mA), the GE 750-P5-G5-S5-HI-A1-R-E provides flexible output control, making it suitable for integration into complex automation systems. The relay also features a red LED indicator for clear feedback on the breaker’s status, ensuring quick troubleshooting during system maintenance.

Designed with a wide power supply range (88-300VDC / 70-265VAC), the relay is adaptable to various power conditions. It supports multiple communication protocols, facilitating seamless integration into SCADA systems for centralized monitoring and control.

Applications

The GE 750-P5-G5-S5-HI-A1-R-E relay is used across multiple industries to protect and manage electrical feeders. It is ideal for applications such as:

Industrial Automation: Provides protection and control for electrical feeders in industrial plants.
Energy Distribution: Ensures reliable protection of feeder systems in energy distribution networks.
Facility Management: Monitors and controls electrical feeders in commercial and industrial facilities.
Power Generation: Protects feeders in power plants, ensuring smooth operation during fault conditions.

Advantages

Comprehensive Protection: Safeguards against phase, ground, and sensitive ground faults.
Autoreclose Capability: Automatically clears temporary faults, reducing downtime.
Advanced Monitoring: Offers breaker wear monitoring and waveform capture for proactive system maintenance.
Flexible Output Control: Eight analog outputs provide precise control over system performance.
Enhanced Display: Large LCD improves visibility and ease of use.
Wide Power Supply Range: Works with various voltage levels (88-300VDC / 70-265VAC).
SCADA Integration: Supports multiple communication protocols for seamless system integration.

Conclusion

The GE relay delivers exceptional protection, control, and monitoring for electrical feeders in diverse industrial environments. With advanced features such as multi-shot autoreclosing, breaker wear monitoring, and sensitive ground fault protection, it ensures the reliability and safety of your electrical systems. Its broad power supply compatibility and SCADA integration make it an ideal solution for various applications, including energy distribution, industrial automation, and facility management.
