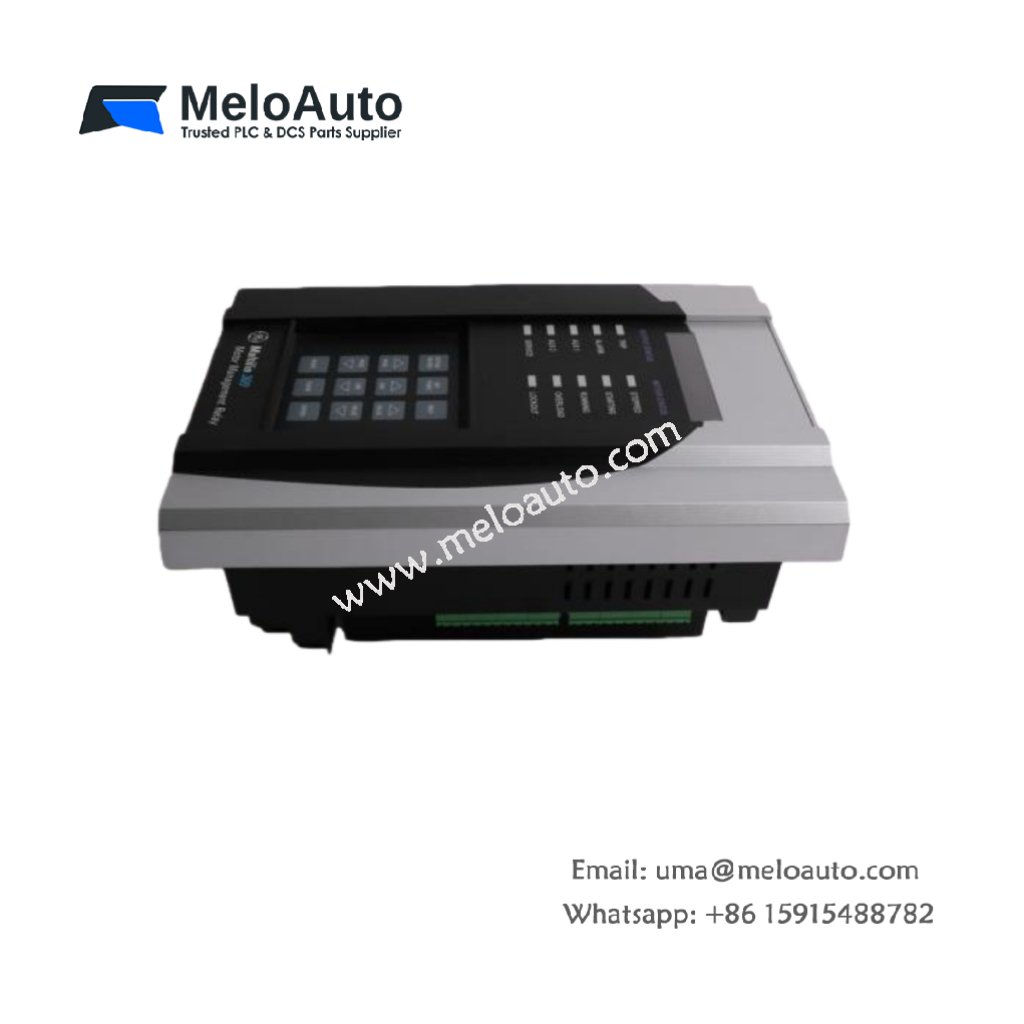

GE 369-HI-R-M-0-0-H-E Motor Management Relay

The GE 369-HI-R-M-0-0-H-E Motor Management Relay offers essential motor protection and advanced management features. Designed by GE Multilin, it enhances motor control with real-time diagnostics and built-in RTD inputs, making it ideal for diverse industrial applications.

Key Features and Specifications

Manufacturer: GE Multilin
Product Type: 369 Motor Management Relay

Technical Specifications

Specification	Details
Control Power	HI – 50-300 VDC / 60-265 VAC
RTD Inputs	R – 12 RTD inputs (built-in)
Metering Package	M – Optional metering package
Fiber Optic Port	0 – No optional fiber optic port
Protocol Interfaces	0 – No optional protocol interfaces
Harsh Environment Option	0 – No harsh environment option
Diagnostics	E – Enhanced diagnostics with enhanced faceplate
Dimensions (HxWxD)	29.6 cm x 10.7 cm x 20.5 cm
Weight	10 lbs (4.5 kg)

Description

The GE Motor Management Relay delivers motor protection and real-time diagnostics for optimal performance. With its 12 RTD inputs, it continuously monitors motor temperature. The built-in metering package allows users to track important parameters such as current, voltage, and power, ensuring efficient motor management.

This relay operates with a broad control power range of 50-300 VDC and 60-265 VAC, making it adaptable to multiple electrical configurations. It also features enhanced diagnostics, providing a comprehensive view of motor conditions through its upgraded faceplate. This allows operators to identify and resolve issues before they lead to costly failures.

Weighing only 10 lbs (4.5 kg) and measuring approximately 29.6 cm x 10.7 cm x 20.5 cm, the relay fits into tight spaces within industrial environments. Its simplified design excludes optional protocol interfaces and fiber optic ports, making it a straightforward solution for most motor control needs.

The GE 369-HI-R-M-0-0-H-E relay is the perfect tool for industrial motor protection, enabling both real-time monitoring and comprehensive diagnostics to improve system uptime and efficiency.
