Board Overview

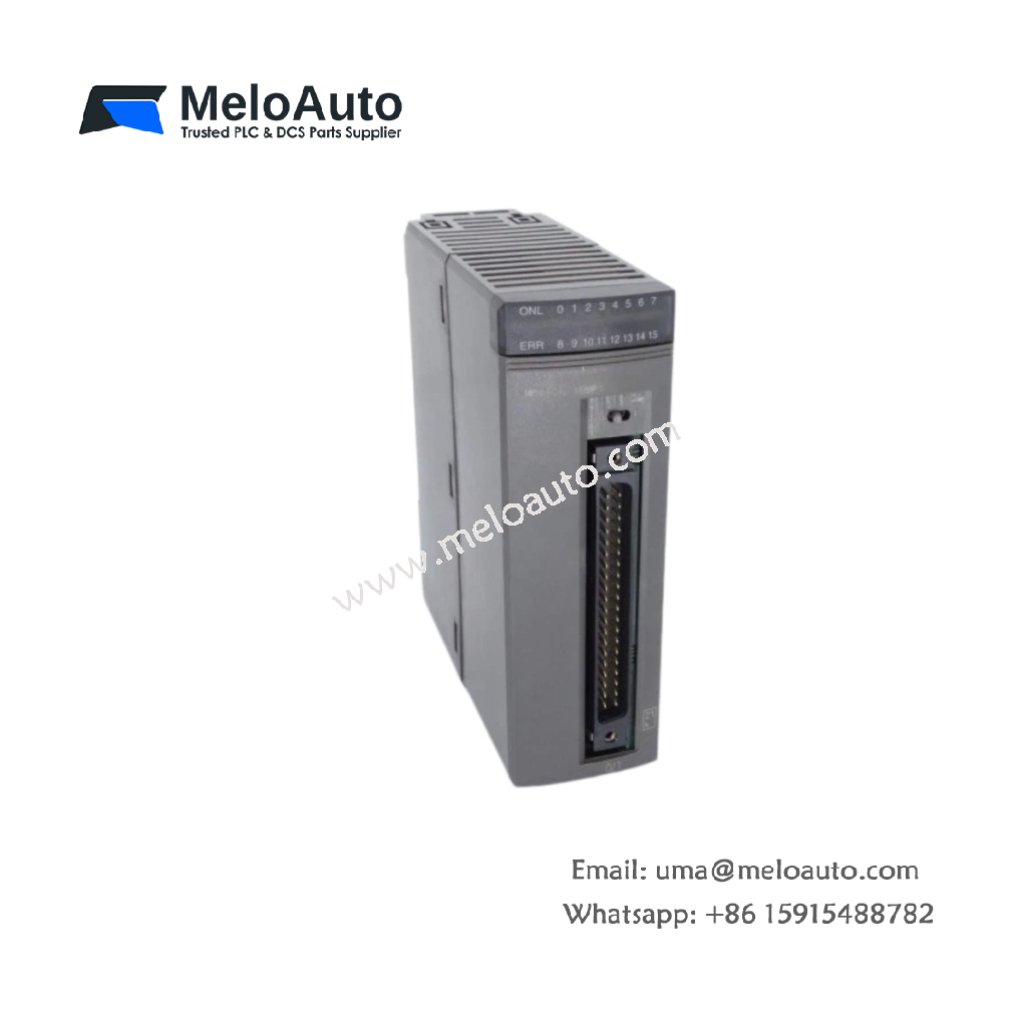

This SPH series module provides 32 high-current digital output points. You can install FUJI NU2Y32T09P6 directly into any FUJI SPH PLC rack. The unit delivers reliable switching for solenoids, relays, and indicator lamps. It suits applications requiring many outputs in a compact footprint.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions (W x H x D) | 70 mm x 100 mm x 85 mm |
| Weight | 0.34 kg |
| Number of digital outputs | 32 points |
| Output type | Transistor (NPN sink type) |
| Output current rating | 0.5 A per point |
| Total output current | 4 A maximum per module |
| Output voltage rating | 12 to 24V DC |
| Output response time | 1 ms typical |
| Short-circuit protection | Yes (self-resetting) |
| Interface to controller | SPH backplane connector |
| Field wiring interface | Two 20-pin headers (ribbon cable) |
| Total onboard components | 186 discrete parts |
| Energy storage type | Ceramic and aluminum capacitors |
| Energy storage rating | 220 µF at 35V DC |
| Operating temperature | 0°C to +55°C |
Board Layout and Components
The PCB organizes 32 output channels into four banks of eight. Each output includes a dedicated transistor and protection diode. Moreover, 186 discrete components provide isolation and current limiting for every channel. Aluminum capacitors filter the main power rail entering the board. Consequently, outputs maintain stable switching even during heavy simultaneous loads.
Installation Process
You can mount FUJI NU2Y32T09P6 into any standard SPH series rack slot. The backplane connector supplies power and receives output data from the CPU. Furthermore, two 20-pin headers connect to external terminal blocks via ribbon cables. Status LEDs on the front panel show each output’s on/off condition clearly.
Performance Advantages
This module switches up to 0.5 A per output with a 1 ms response time. The self-resetting short-circuit protection prevents damage from wiring mistakes. Therefore, field faults do not destroy the output transistors. The 32-point density also saves valuable rack space for additional functions.
Safety and Compliance
FUJI NU2Y32T09P6 meets CE and RoHS industrial standards. The board discharges stored energy below 4V within six seconds. Hence, technicians face minimal electrical risk during installation or removal.
