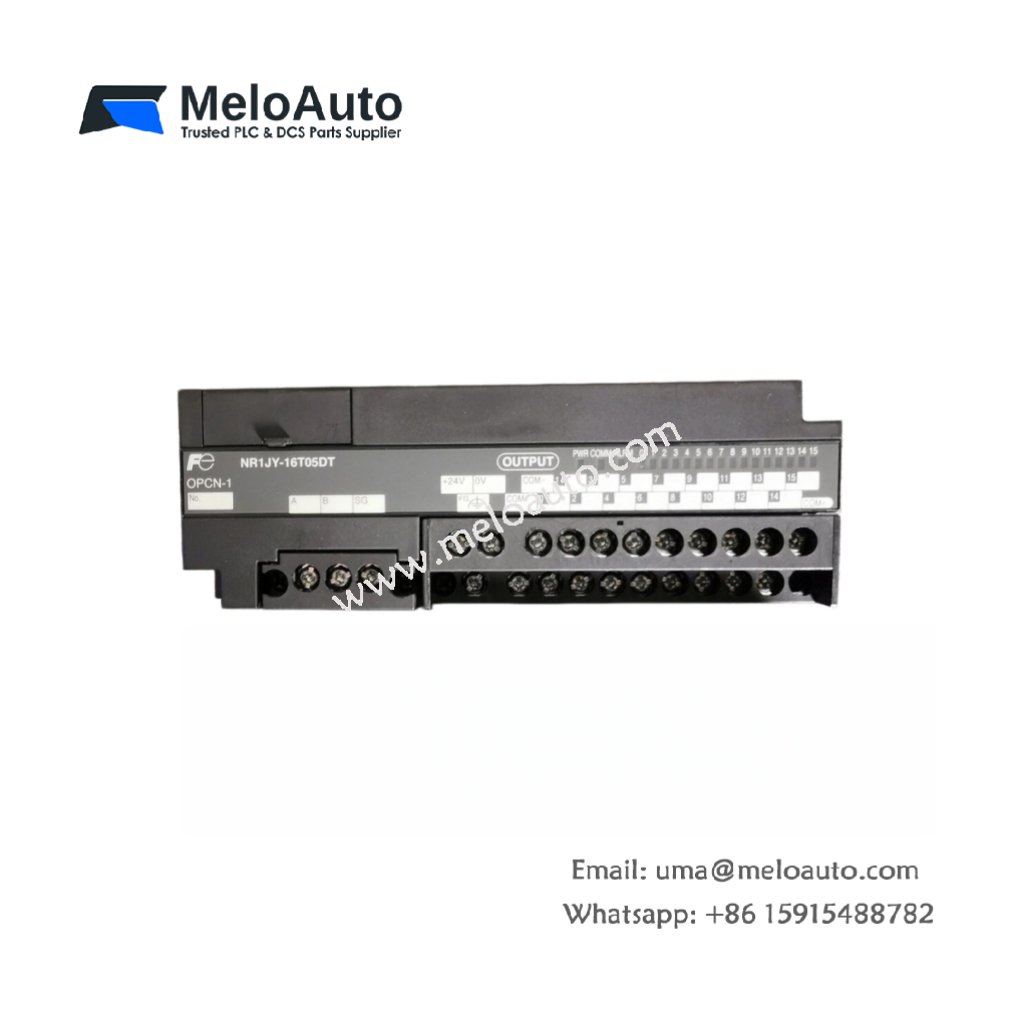

Fuji NR1JY-16T05DT PLC Module

High-Density Transistor Output for Remote I/O

This output module provides 16 transistor outputs for controlling field devices remotely. The Fuji NR1JY-16T05DT connects to a T-Link network as a slave station. It switches 24V DC loads directly without intermediate relays. A built‑in status LED indicates normal communication with the master module. Consequently, this module reduces panel space and wiring costs for distributed systems.

Output Specifications & Network Features

The Fuji NR1JY-16T05DT accepts control signals from the master CPU over the T-Link network. You can mount this module up to 200 meters away from the main controller. A rotary switch on the side sets the slave station address easily. The module automatically synchronizes its output data during network startup. Therefore, installation requires no complex configuration or special tools.

Parameter	Detailed Specification
Operating Temperature	0°C to +55°C
Storage Temperature	-25°C to +70°C
Humidity Range	20% to 95% RH (no condensation)
Digital Outputs	16 points (transistor, sourcing)
Output Voltage	24V DC (20V to 28V range)
Output Current	0.5A per point (2A common)
Total I/O Points	16 outputs
Network Type	T-Link (remote I/O slave)
Communication Distance	200 meters maximum
Transmission Speed	1 Mbit/s
Address Setting	Rotary switch (1 to 64)
Status LEDs	4 (POWER, LINK, ERROR, OUTPUT)
Output Protection	Short circuit and overload
Response Time	0.5 ms typical
Power Supply	24V DC (external + network)
Current Draw	80 mA typical
Energy Storage	None (no battery or capacitor)

Installation & Field Wiring

You mount the Fuji NR1JY-16T05DT on a standard DIN rail inside a control cabinet. Connect the 24V DC power supply to the dedicated power terminals. Wire your actuators to the 16 output terminals on the front panel. Then connect the T-Link network cable to the communication port. Finally, set the station address using the side rotary switch.

Operational Advantages & Remote Deployment

The Fuji NR1JY-16T05DT operates reliably in harsh industrial environments. You can place this module near conveyors, packaging machines, or sorting stations. Transistor outputs switch silently without relay contact wear or noise. The OUTPUT LED illuminates when each channel activates its connected load. Therefore, this remote output module provides a maintenance‑free solution for distributed control systems.
