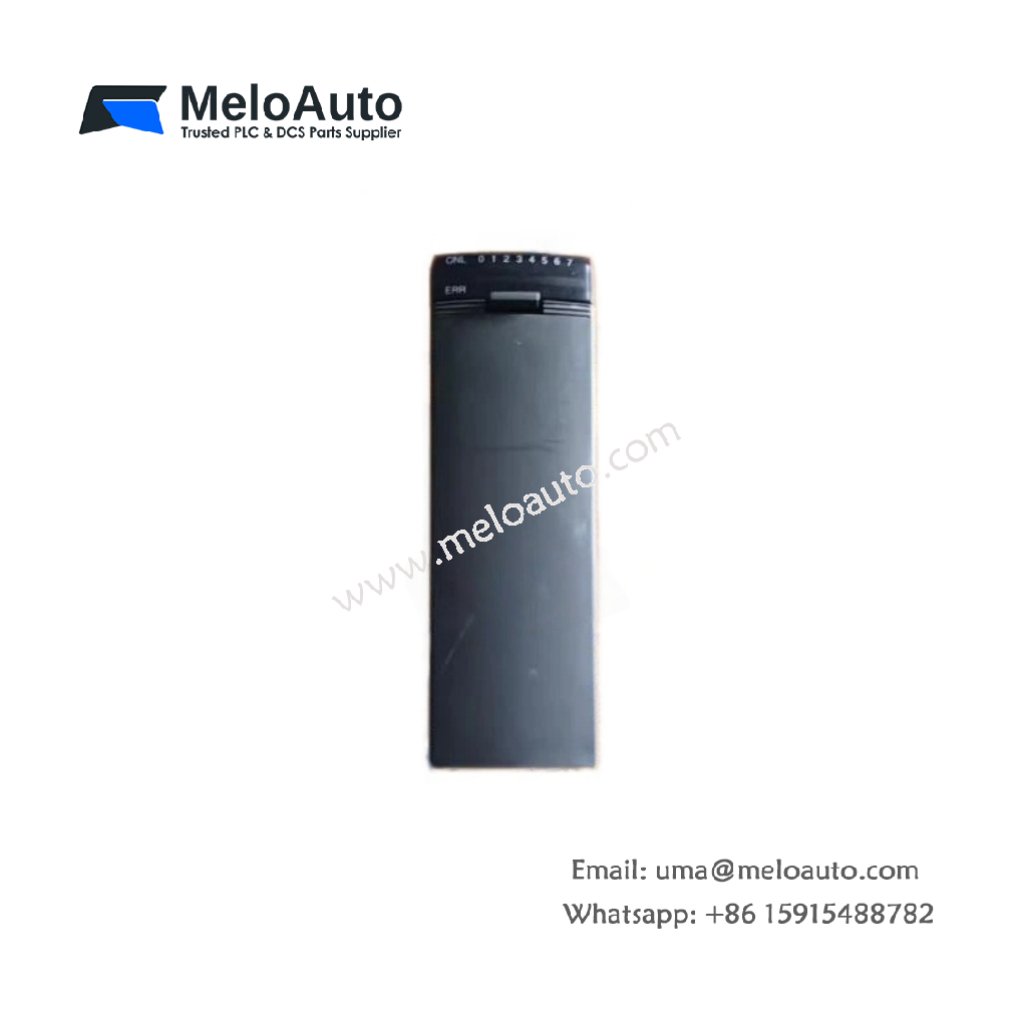

Fuji NP1Y08T0902 Digital Output Module

The Fuji NP1Y08T0902 provides eight transistor outputs for load switching. This compact module drives solenoids, relays, and indicator lamps reliably. It connects directly to the NP1 series backplane for fast response. Panel builders trust this unit for space‑saving output applications.

Complete Technical Specifications

Parameter	Specification
Dimensions (W x H x D)	68 mm x 110 mm x 85 mm
Weight	0.28 kg
Number of Output Points	8 channels
Output Type	Transistor, NPN
Output Current per Channel	0.5 A at 24V DC
Total Output Current	3 A maximum (per common)
Internal Energy Storage	220 µF capacitor
Operating Voltage	24V DC ±20%
Power Consumption	2 W typical
Isolation Method	Optocoupler per channel
Response Time	0.3 ms maximum
Terminal Type	18‑pin spring clamp
LED Indicators	8 green status LEDs
Protection	Short circuit, overcurrent

Physical Layout and Connection Details

The Fuji NP1Y08T0902 weighs only 0.28 kilograms for lightweight mounting. Its 68 mm width occupies a single slot on the base board. Eight output channels appear on an 18‑pin spring clamp terminal block. Each channel includes a green status LED for visual confirmation. A 220 µF capacitor filters supply voltage transients effectively. The module uses optocouplers to isolate every output from the backplane.

Output Characteristics and Switching Performance

Each channel delivers 0.5 amperes continuously at 24V DC. The total common current reaches 3 amperes maximum. Therefore, this module suits small solenoid banks and LED panels. The response time stays under 0.3 milliseconds. Consequently, you can use it for high‑speed sorting and counting applications. All outputs feature short‑circuit and overcurrent protection internally.

Installation and Wiring Guidelines

Mount the Fuji NP1Y08T0902 into any NP1 series base slot. First, disconnect system power completely before handling. Then connect each load wire to the designated terminal. Wire the common 0V return to the COM terminal. Use an external fuse on the common line for safety. After wiring, apply power and test each channel individually. Verify each green LED turns on with the corresponding output.

System Integration and Application Notes

This output module works with all NP1 series CPUs and power supplies. It occupies one slot regardless of the 8 channel count. Typical applications include pilot light control and small valve actuation. The unit also suits alarm annunciators and signal lamps. For loads exceeding 0.5 amperes, add external interposing relays. The compact design allows dense cabinet layouts.
