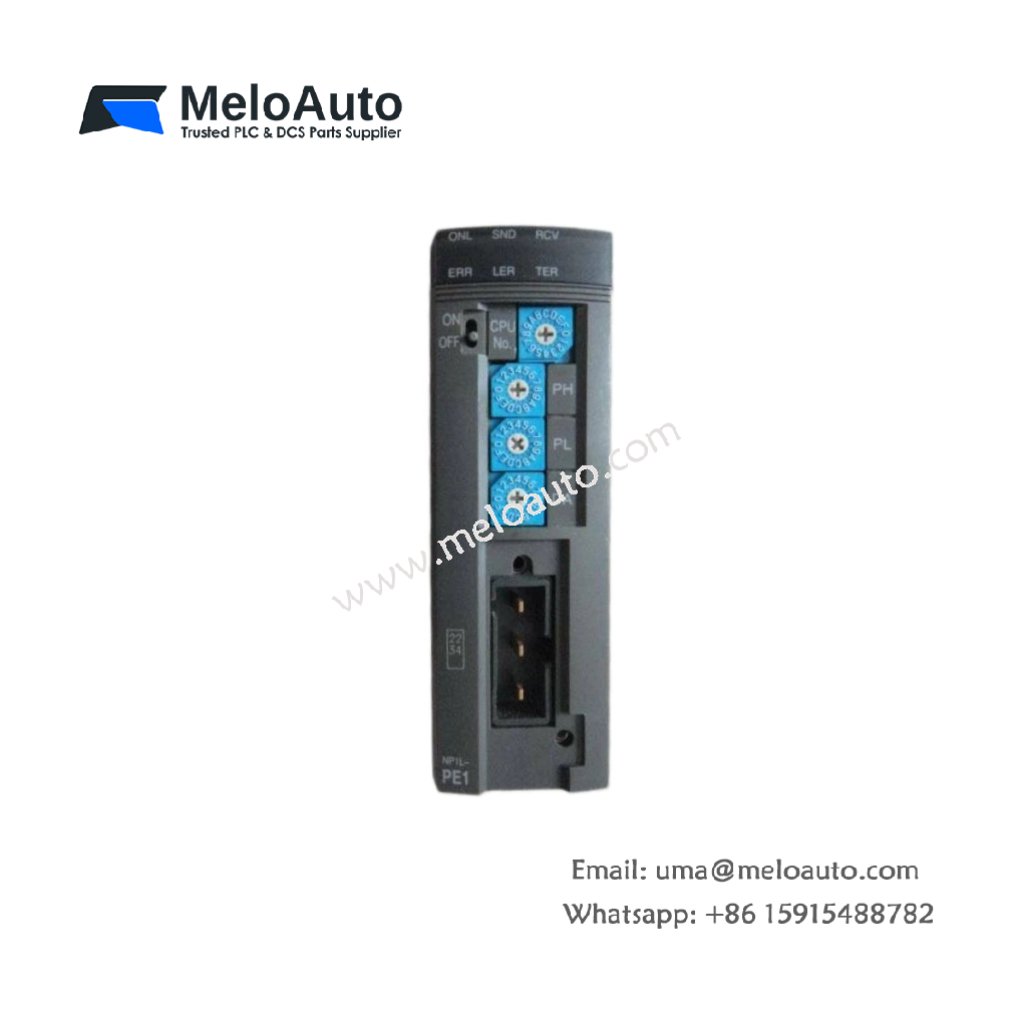

FUJI NP1L-PE1 PE Link Module

This PE Link module provides dedicated optical communication for Fuji Electric automation systems. The FUJI NP1L-PE1 establishes a single-channel fiber optic connection between controllers and remote I/O stations. Its design prioritizes noise immunity and long-distance signal integrity.

Key Technical Specifications

Reliable Optical Communication

The FUJI NP1L-PE1 transmits signals using optical fiber technology for superior noise rejection. This single-channel configuration connects one master unit to remote slave devices without signal degradation. Furthermore, the module eliminates electrical interference concerns common in industrial environments. Manufacturers often deploy this solution in facilities with high electromagnetic noise from welding or variable frequency drives.

The optical interface supports both plastic and glass fiber cabling options. Engineers can select the appropriate cable type based on distance and application requirements. Additionally, the FUJI NP1L-PE1 maintains consistent data integrity across extended cable runs. This reliability ensures stable communication between controllers and field devices.

Compact Form Factor

This PE Link module measures 110 millimeters in height with a shallow depth profile. Its lightweight construction at approximately 0.28 kilograms allows easy installation and handling. The housing fits seamlessly into standard Fuji Electric I/O racks without requiring additional mounting hardware. Technicians can insert or remove the unit quickly during system maintenance procedures.

System Integration and Application

The FUJI NP1L-PE1 integrates directly with Fuji Electric programmable controllers. This module creates a dedicated PE Link network for distributed I/O configurations. Furthermore, the single-channel design suits applications requiring isolation between control zones. Industries such as automotive assembly, steel processing, and chemical manufacturing frequently utilize this optical communication solution.

The module features status indicators for link verification and error detection. These LEDs provide immediate visual feedback on network health. Consequently, operators can identify communication issues without connecting diagnostic equipment.
