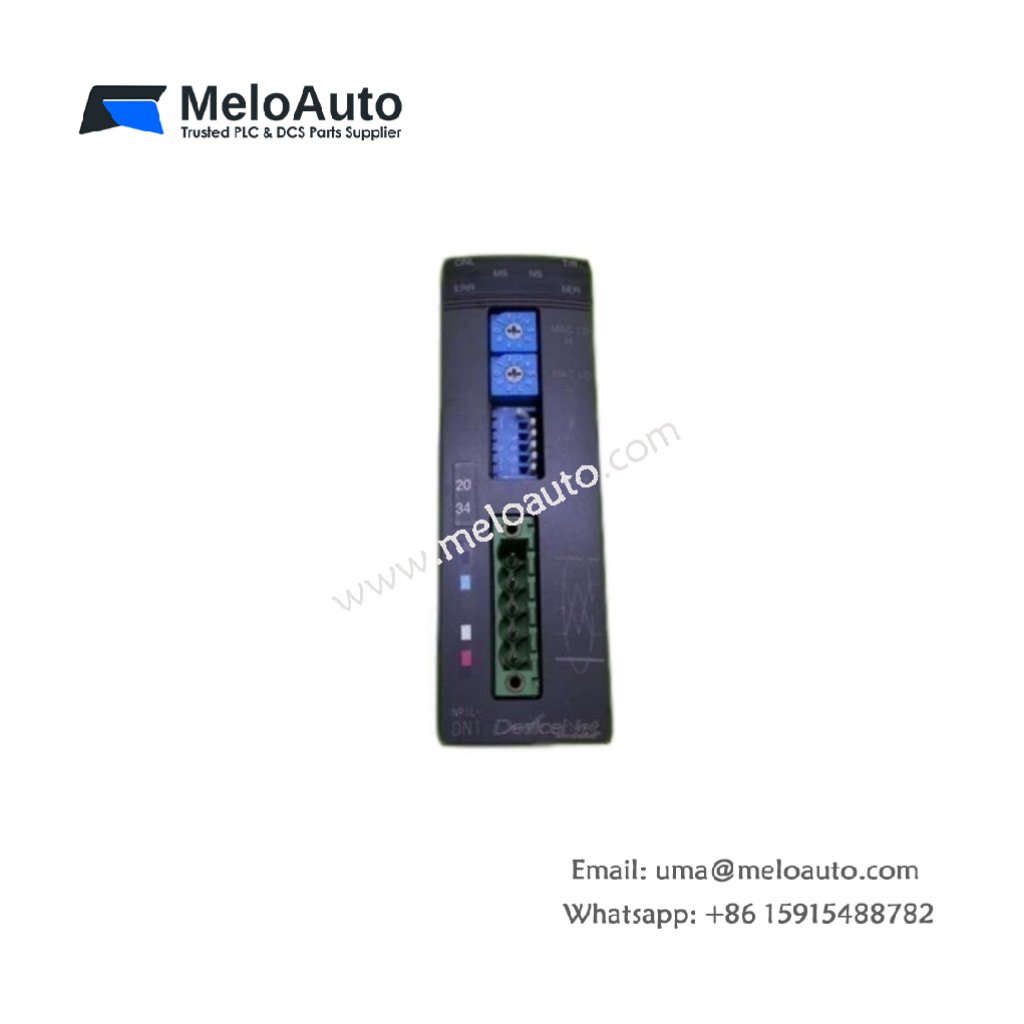

FUJI NP1L-DN1 DeviceNet Master Module

Module Overview

This DeviceNet master interface module manages communication with slave devices on DeviceNet networks. You can install FUJI NP1L-DN1 directly into any FUJI SPH series PLC rack. The unit acts as the bus master for up to 64 slave nodes. It handles polling and bit-strobe services without CPU intervention.

Technical Specifications

Parameter	Value
Dimensions (W x H x D)	70 mm x 100 mm x 85 mm
Weight	0.32 kg
Communication protocol	DeviceNet (master)
Interface type	5-pin open-style connector
Maximum slave nodes	64 devices
Baud rates	125 kbps, 250 kbps, 500 kbps
Maximum cable length	500 meters at 125 kbps
I/O data size	512 bytes input + 512 bytes output
Communication modes	Polling, bit-strobe, change-of-state
Interface to controller	SPH backplane connector
Total onboard components	148 discrete parts
Energy storage type	Ceramic and tantalum capacitors
Energy storage rating	260 µF at 16V DC
Operating temperature	0°C to +55°C

Module Layout and Components

The PCB integrates a dedicated DeviceNet controller chip for bus management. A 5-pin connector provides CAN_H, CAN_L, and power for the network. Additionally, 148 discrete components include isolation circuits and transceivers. Tantalum capacitors filter the internal power rails for stable operation. Consequently, the module communicates reliably even on long DeviceNet trunk lines.

Installation Process

You can mount FUJI NP1L-DN1 into any standard SPH series rack slot. The 5-pin connector interfaces directly with DeviceNet trunk cables. Furthermore, configuration software sets node addresses and I/O mapping easily. LED indicators show network status, module health, and communication activity clearly.

Performance Advantages

This module selects baud rates from 125 kbps to 500 kbps automatically. It supports polling, bit-strobe, and change-of-state communication modes. Therefore, you can optimize network traffic for different slave device types. The 512-byte I/O buffer also handles large data exchanges with remote stations.

Safety and Compliance

FUJI NP1L-DN1 meets CE and RoHS industrial standards. The board discharges stored energy below 3V within five seconds. Hence, technicians face minimal electrical risk during installation or replacement.
