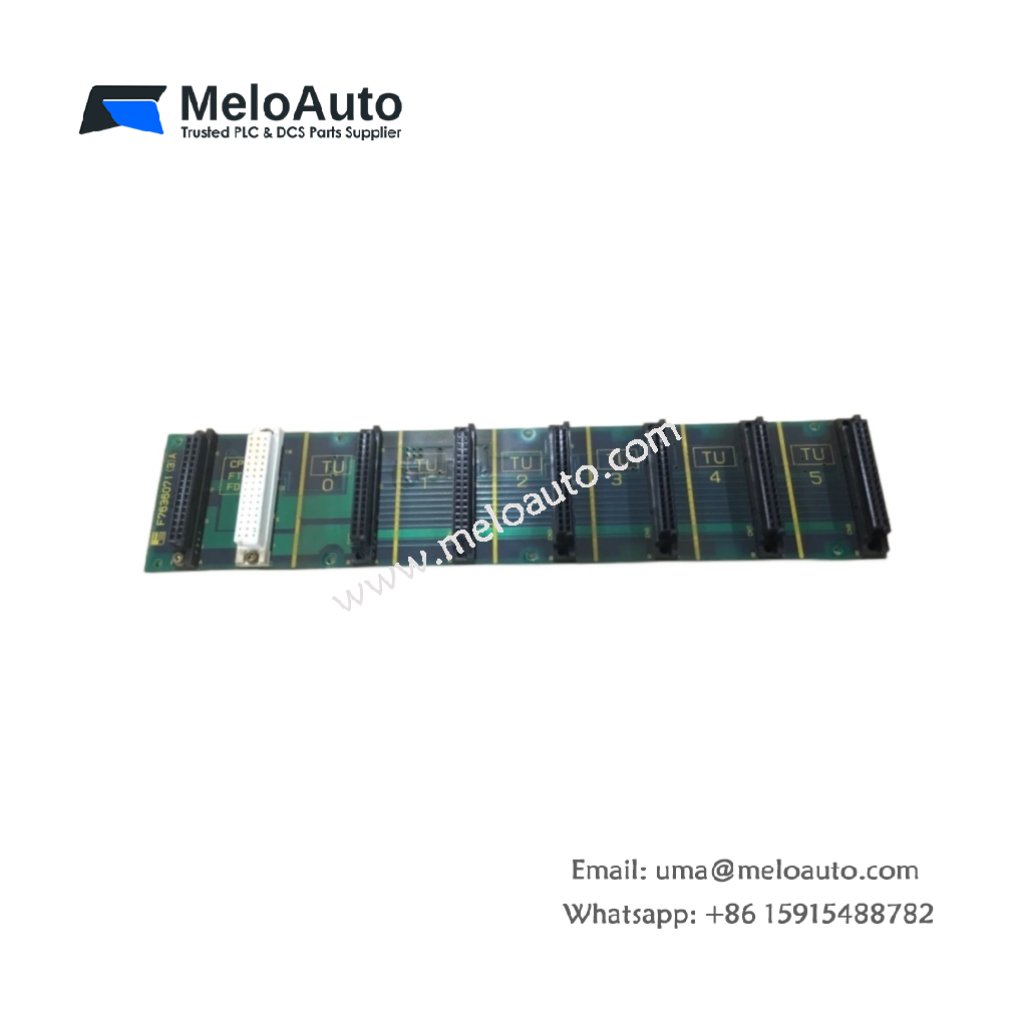

Fuji FSB086H MICREX-SX 5-Slot Mount Board

Expandable Rack for Additional I/O Modules

This mount board unit provides five slots for MICREX-SX I/O modules. The Fuji FSB086H connects to a main CPU rack via a simple interface cable. It allows you to add up to five additional modules to your existing system. A built‑in backplane distributes power and communication to all inserted cards. Consequently, this expansion rack accommodates growing automation needs without replacing your controller.

Physical Design & Slot Configuration

The Fuji FSB086H accepts any standard MICREX-SX I/O or function module. You can mix digital inputs, digital outputs, analog cards, and specialty modules freely. A passive backplane design contains no active components for maximum reliability. The unit mounts vertically on a DIN rail or directly on a panel. Therefore, this mount board suits both new installations and retrofit projects.

Installation & System Integration

You mount the Fuji FSB086H on a DIN rail near your main CPU rack. Connect the interface cable between the CPU rack and this expansion unit. Insert your I/O modules into the five slots and secure them with locking screws. The system automatically recognizes all modules after power‑up. No additional configuration or addressing steps are necessary.

Operational Advantages & System Expansion

The Fuji FSB086H allows you to position I/O modules away from noisy equipment. For example, place this rack near sensors to reduce wiring distances significantly. The five slots support a mix of up to 160 digital I/O points or 20 analog channels. A passive backplane means no moving parts or batteries to replace. Therefore, this Fuji mount board provides reliable expansion for your MICREX-SX system.
