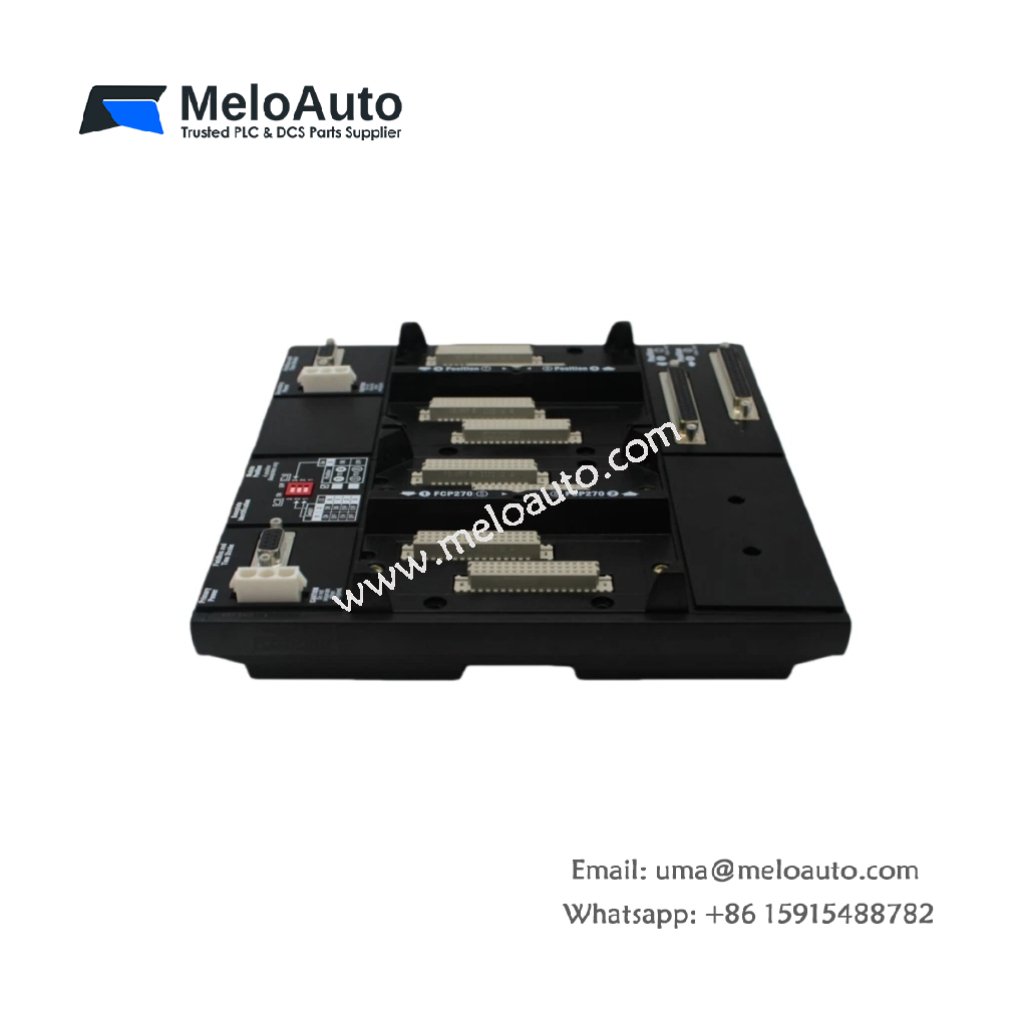

Foxboro P0926HF Horizontal Baseplate

Overview

The Foxboro P0926HF is a horizontal baseplate designed for use within the Foxboro Evo system. This baseplate serves as a mounting platform and communication backplane for DIN rail-mounted modules. It supports distributed control for both small and large systems, accommodating various Foxboro Evo modules. Whether for field control or communication processing, the P0926HF ensures a robust and flexible system design.

Key Features

Flexible Module Support: The P0926HF accommodates up to 8 modules with options for 2, 4, or 8 module positions, offering flexible system configurations.
Multiple Mounting Options: This baseplate supports both horizontal and vertical DIN rail mounts, giving you versatility in installation. It can remain in a horizontal orientation even with a vertical DIN rail mount.
Communication Backplane: As a passive backplane, the P0926HF ensures increased system reliability by minimizing signal interference.
Power and Communication Connections: It includes primary and secondary 24 V DC power and communication connections, facilitating seamless integration within the control system.
Compatibility: The baseplate is backward-compatible with existing IO subsystems, ensuring easy upgrades and integration with older systems.
Time Strobe Connection: The P0926HF features a connection for an optional GPs time strobe (for FCP280/FCP270, FDC280, and FCM100E baseplates), providing precise synchronization across devices.

Supported Modules

The Foxboro P0926HF is compatible with a wide range of Foxboro Evo system modules:

Field Control Processor 280 (FCP280): Available in fault-tolerant and non-fault-tolerant configurations.
Field Device Controller 280 (FDC280): Available in fault-tolerant and non-fault-tolerant versions.
Field Control Processor 270 (FCP270): Available in fault-tolerant and non-fault-tolerant configurations.
Field Communication Modules (FCM100E, FCM100Et), including other FCMs.
Fieldbus Expansion Modules (FEM100E).
Fieldbus Isolator/Filter Modules (FBI200, FB1100).
Standard Fieldbus Modules (FBMs), including 100 Series FBMs.

Technical Specifications

Parameter	Specification
Model	Foxboro P0926HF
Module Positions	2, 4, or 8 positions available for flexible configuration
Mounting Configuration	Horizontal and vertical DIN rail mounts
Power Connections	Primary and secondary 24 V DC
Communication Connections	Communication backplane for Foxboro Evo modules
Compatibility	Backwards compatible with existing IO subsystems
Optional Features	Connection for GPs time strobe (for FCP280/FCP270, FDC280, FCM100Et)
Backplane Type	Passive backplane for increased system reliability

Applications

The Foxboro P0926HF baseplate is ideal for various Foxboro Evo systems, including:

Industrial Process Control: Supporting both small and large-scale industrial control systems.
Field Communication Systems: Ensuring reliable communication across field devices.
Upgrades and System Integrations: Seamlessly integrating with older IO subsystems.

Conclusion

The Foxboro P0926HF Horizontal Baseplate offers exceptional flexibility, compatibility, and reliability. It supports a wide range of modules and provides various mounting options, making it a versatile choice for process control and automation systems. Whether for field control or communications, this baseplate ensures reliable and efficient operation in demanding environments.
