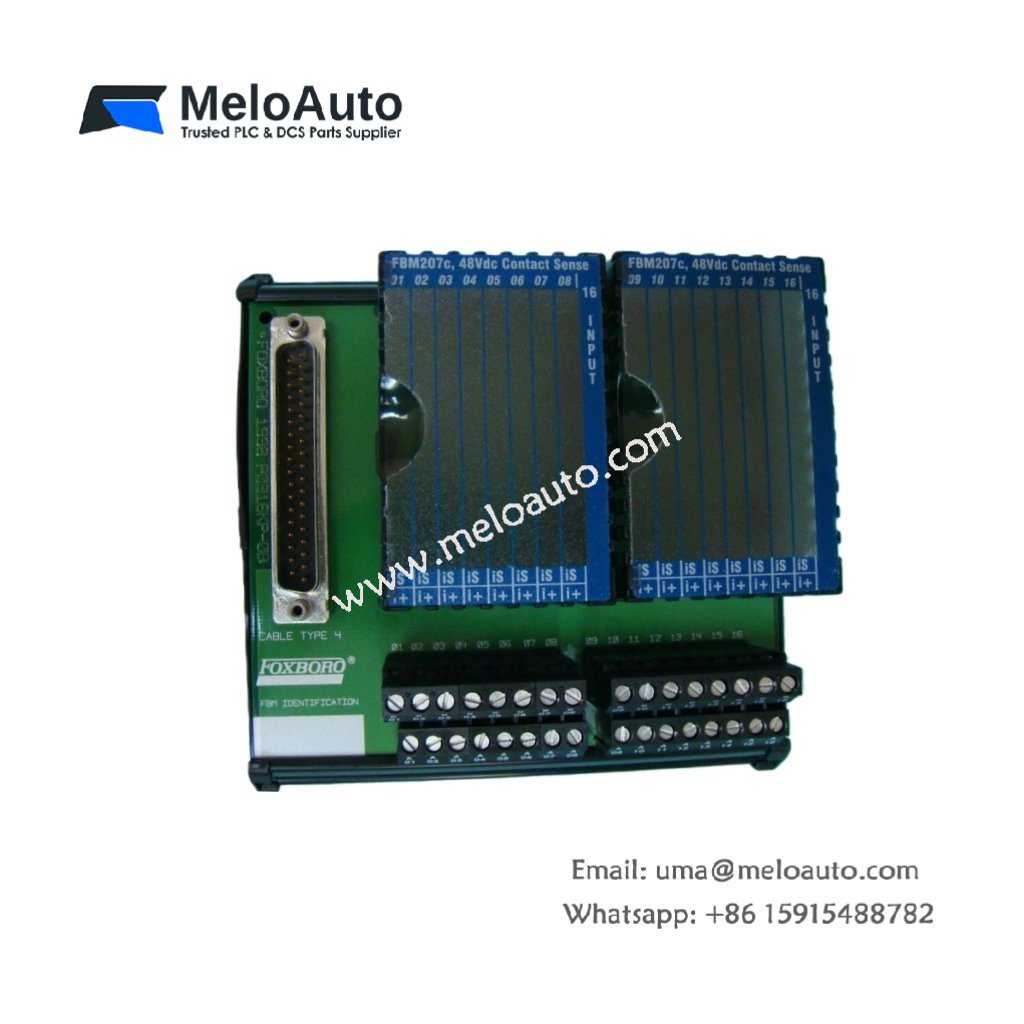

Foxboro P0917MF Module | 16-Channel Signal Transmission

The Foxboro P0917MF module is engineered for seamless and secure communication between field devices and the Foxboro I/A Series baseplates. This module ensures accurate signal transmission and stable system operation in demanding industrial environments.

Key Features

16 Channels: The P0917MF supports up to 16 channels, offering versatile signal transmission capabilities for both analog and digital signals.
Wide Voltage Range: Operates with a rated voltage of up to 30 VDC, making it adaptable to different system requirements.
High Current Handling: Supports up to 2 A rated current per channel, ensuring reliable power distribution to connected devices.
Robust Design: The polycarbonate housing provides excellent protection, making the module suitable for harsh industrial conditions.

Technical Specifications

Specification	Details
Model	P0917MF
Number of Channels	16
Signal Types	Analog or Digital
Rated Voltage	Up to 30 VDC
Rated Current	Up to 2 A
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% RH, non-condensing
Vibration Resistance	5 g peak-to-peak, random
Shock Resistance	30 g, half-sine wave, 11 ms duration
EMC Compliance	IEC electromagnetic compatibility standards
Housing Material	Polycarbonate for robust protection
Dimensions	100 mm x 60 mm x 25 mm (3.94 in x 2.36 in x 0.98 in)
Weight	0.1 kg (0.22 lbs)

Applications

The Foxboro P0917MF module is ideal for industrial control systems where precise and stable signal transmission is essential. Typical applications include:

Automation Systems: Ensures accurate signal handling between field devices and control systems.
Manufacturing: Used in critical control applications for machinery and equipment monitoring.
Oil & Gas: Provides reliable connections in hazardous and extreme environments.
Energy: Facilitates smooth operation of power generation and distribution systems.

Overview

The Foxboro P0917MF is a versatile and reliable module designed to integrate seamlessly with Foxboro I/A Series baseplates. It ensures consistent signal transmission and stability in industrial systems, supporting both analog and digital signal types. With its robust construction, wide operating temperature range, and high shock and vibration resistance, the P0917MF module delivers high performance even in the most demanding environments.
