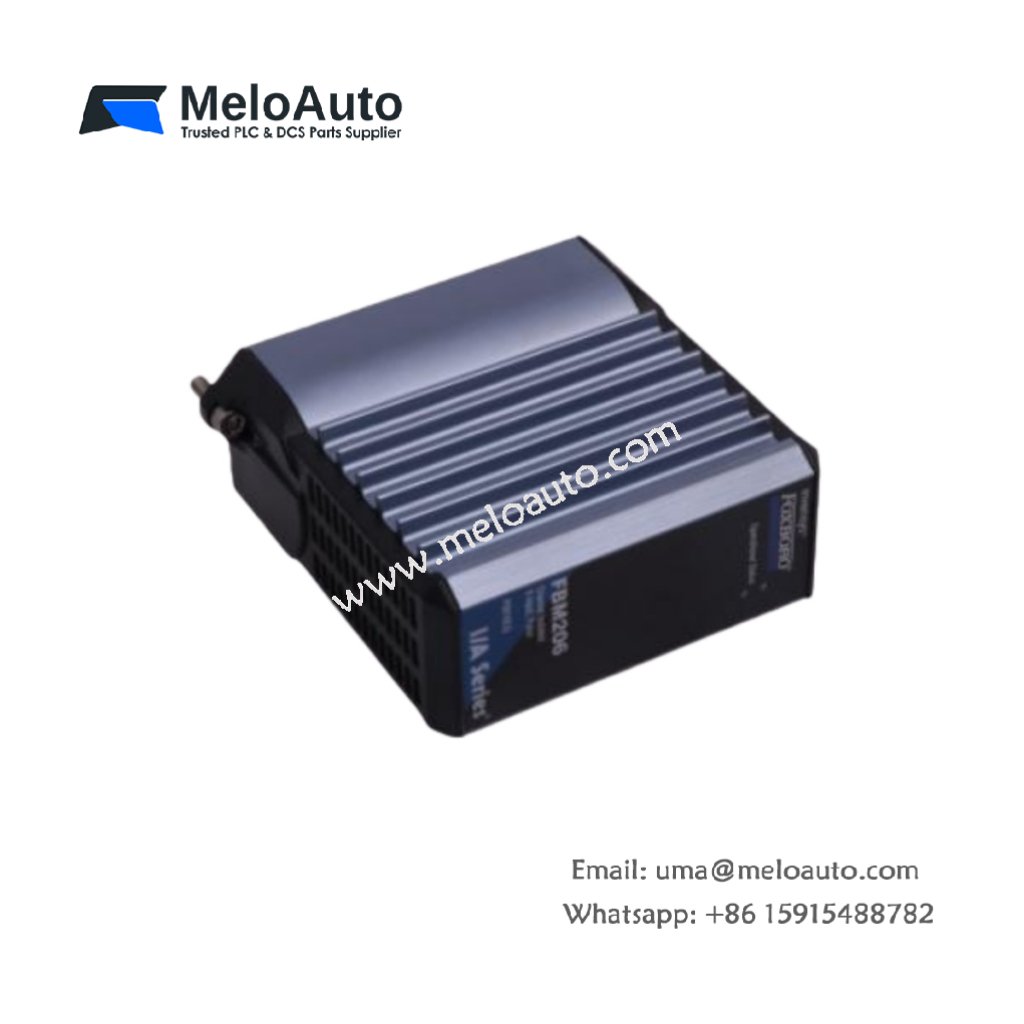

Foxboro FBM206 Isolated Pulse Input Module

Overview

The Foxboro FBM206 is an isolated pulse input module designed for integration into the Foxboro I/A Series distributed control system. It offers eight isolated pulse inputs, which are crucial for accurate frequency and rate measurements across various process variables. This module is ideal for applications such as flow measurement, speed measurement, and event counting. The FBM206 ensures both precision and reliability, even in harsh industrial environments.

Key Features

Eight Independent Pulse Inputs: This module provides eight pulse input channels, allowing simultaneous measurement of multiple process variables.
Wide Input Range: It supports an input range of 0.5 Hz to 20 kHz, offering flexibility for various applications.
High Accuracy: With an accuracy of ±0.5% of full scale, the FBM206 consistently delivers precise data.
Superior Isolation Voltage: The module provides 2,500 Vrms isolation, effectively preventing electrical interference and ensuring system reliability.
Low Power Consumption: Consuming just 2.5 W, the FBM206 remains energy-efficient during continuous operation.
Wide Operating Temperature Range: It operates effectively from -40°C to 85°C, making it suitable for diverse industrial conditions.
Humidity Tolerance: The module functions reliably in environments with humidity ranging from 0% to 95% RH, without condensation.

Applications

The Foxboro FBM206 excels in several key industrial applications, such as:

Flow Measurement: It provides accurate measurements of liquid and gas flow in pipes and other systems.
Speed Measurement: The module tracks the speed of rotating machinery, conveyors, and other moving components.
Event Counting: It counts events like machine cycles, material movements, or system operations.

Technical Specifications

Parameter	Specification
Model	Foxboro FBM206
Number of Channels	8
Input Type	Pulse
Input Range	0.5 Hz to 20 kHz
Input Impedance	100 kΩ
Accuracy	±0.5% of full scale
Isolation Voltage	2,500 Vrms
Power Consumption	2.5 W
Operating Temperature	-40°C to 85°C
Humidity	0 to 95% RH, non-condensing
Dimensions	6.25 x 4.25 x 1.0 inches (160 x 108 x 25 mm)
Weight	1.0 lb (0.45 kg)

Conclusion

The Foxboro FBM206 offers precision and versatility in measuring pulse input signals across a wide range of industrial applications. By providing accurate data for flow, speed, and event counting, it plays a crucial role in automation systems. Thanks to its compact design, wide temperature range, and high isolation voltage, it is well-suited for use in demanding environments.
