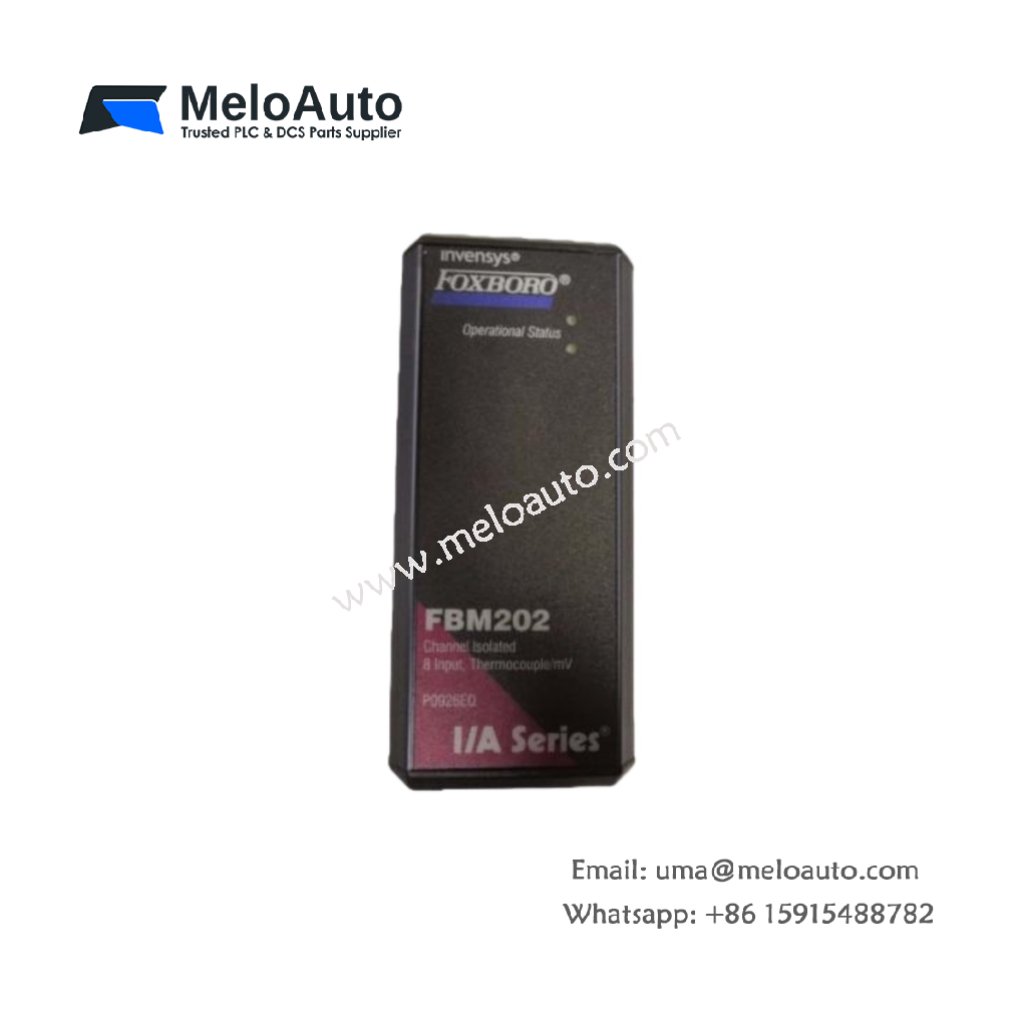

Foxboro FBM202 P0926EQ - Input Module

Overview

The Foxboro FBM202 P0926EQ is a high-performance 8-channel thermocouple/mV input interface module, specifically designed for use with the Foxboro FBM200 Series I/O modules. This module provides reliable, precise, and cost-effective solutions for various industrial automation applications. It is ideal for scenarios requiring accurate temperature measurement and control in demanding environments.

Key Features

8 Thermocouple/MV Input Channels: Supports both thermocouple and mV inputs with high accuracy.
Cold Junction Compensation: Features either RTD or fixed cold junction compensation for consistent performance.
Isolated Inputs and Outputs: Provides 2500V RMS isolation between channels and ground, reducing noise and interference.
High Accuracy: Achieves accuracy of ±0.1% of reading for reliable and precise measurements.
Compact Design: Compact size of 7.87 x 4.21 x 1.26 inches (200 x 107 x 32 mm) makes it ideal for tight spaces.
Low Power Consumption: Powered by 24 VDC, ensuring efficient operation without excessive energy use.

Technical Specifications

Specification	Details
Model Number	FBM202 P0926EQ
Product Type	8-Channel Thermocouple/mV Input Module
Manufacturer	Foxboro (Schneider Electric)
Input Type	Thermocouple or mV
Number of Channels	8 channels
Input Range	-200 to +2000 mV
Accuracy	±0.1% of reading
Cold Junction Compensation	RTD or fixed
Output	4-20 mA
Isolation	2500V RMS
Power Supply	24 VDC
Operating Temperature	-40°C to +80°C
Dimensions	7.87 x 4.21 x 1.26 inches (200 x 107 x 32 mm)
Weight	1.8 kg (3.97 lb)

Benefits

Enhanced Accuracy and Reliability: Achieves precise readings through sigma-delta data conversion.
Versatile Input Range: Supports a wide range of temperature measurements with thermocouple and mV inputs.
Rugged and Durable: Designed to withstand harsh industrial environments, making it ideal for challenging conditions.
Space-Saving Design: Compact dimensions allow easy integration into systems with limited space.
Low Power Consumption: Operates efficiently with minimal power usage, ideal for energy-conscious applications.

Applications

The Foxboro FBM202 P0926EQ is suitable for a variety of industrial applications, including:

Power Generation: Monitors temperature in power plants and ensures reliable performance.
Oil and Gas Production: Used for accurate temperature measurement in critical processes.
Chemical Processing: Ideal for process control in chemical plants requiring high-accuracy temperature data.
HVAC Systems: Controls temperature in heating, ventilation, and air conditioning systems.
Food & Beverage Processing: Ensures consistent temperature control in food manufacturing processes.
Pharmaceutical Manufacturing: Monitors and regulates temperature in pharmaceutical production to ensure compliance with industry standards.

Conclusion

The Foxboro FBM202 P0926EQ is an essential component in temperature measurement and control for industrial automation. Its 8 thermocouple/mV input channels, high accuracy, and galvanic isolation make it ideal for a wide range of applications. Whether for power generation, chemical processing, or HVAC systems, this module delivers precision and reliability in demanding environments.
