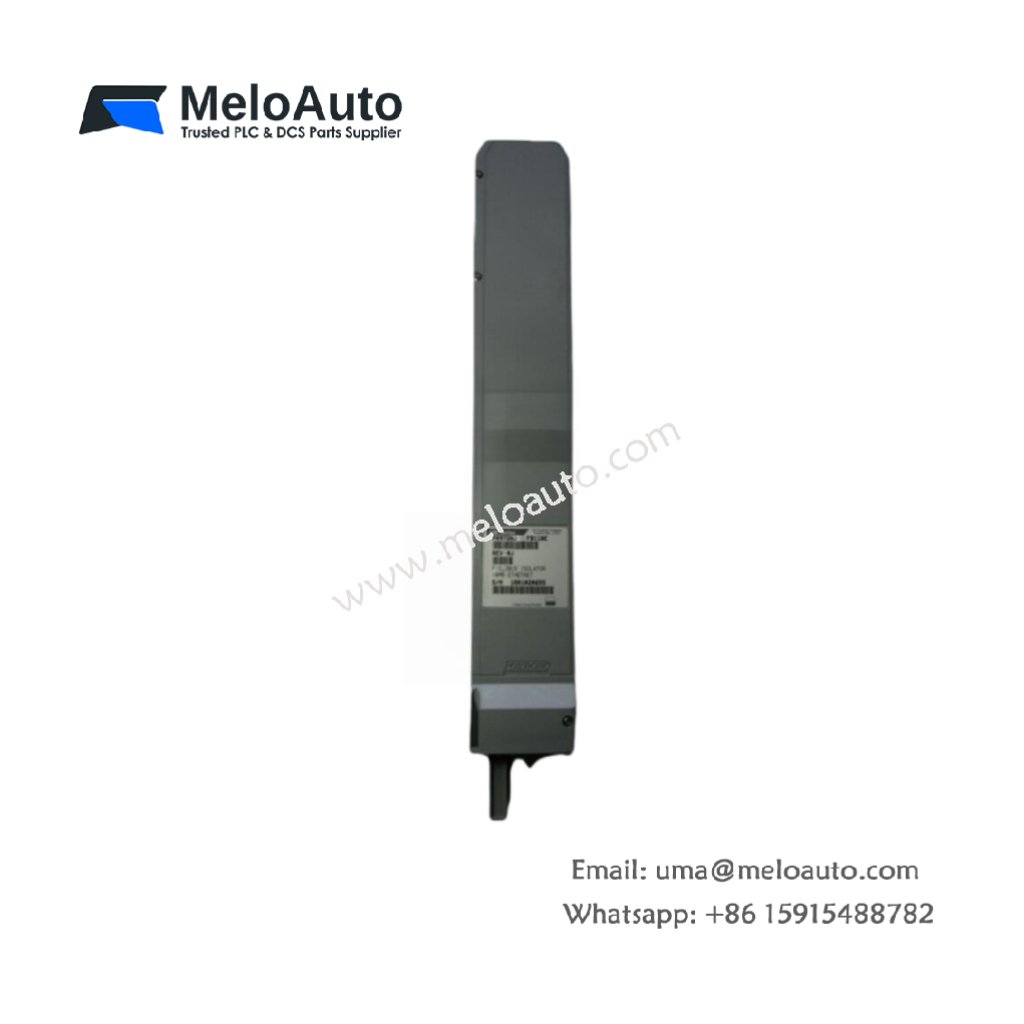

Foxboro FBI10E Fieldbus Isolator

The Foxboro FBI10E Fieldbus Isolator provides seamless communication between the Ethernet Fieldbus and Fieldbus Modules (FBMs). This module supports up to 24 FBMs and offers galvanic isolation, ensuring high signal integrity and protection from electrical interference. Its flexible design allows installation in various enclosures, making it ideal for industrial automation systems.

Key Features:

Supports Up to 24 FBMs: The FBI10E can integrate with up to 24 Fieldbus Modules, ensuring scalability and smooth communication in large control systems.
Galvanic Isolation: It provides galvanic isolation between the Ethernet Fieldbus and FBMs, safeguarding the system from electrical noise and cross-interference.
Flexible Mounting Options: This module comes in a half-size Y-Module form factor, making it easy to install in a Field Enclosure 4, 1×8 FBM, or 1×12 FBM mounting structure. Additionally, it supports installation via a Y-adapter in Industrial Enclosures 16 and 32.
Visual Status Indicators: The module is equipped with LEDs that show real-time status information, simplifying maintenance and troubleshooting.
Redundant Configuration Support: For improved reliability, the FBI10E can operate in redundant configurations. This ensures continuous operation even in the event of a failure, with one module handling the “A” side and another for the “B” side.
Protocol Conversion: The FBI10E enables communication between the Control Processor 60 (CP60) and Y-Module form factor FBMs. It efficiently converts Ethernet Fieldbus (10 Mbps) signals into HDLC signals used by the Fieldbus Modules.

Technical Specifications:

Specification	Details
Product Type	Fieldbus Isolator
Model Number	FBI10E
Manufacturer	Foxboro
Maximum FBM Support	24 FBMs
Galvanic Isolation	Yes, between Ethernet Fieldbus and FBMs
Form Factor	Half-size Y-Module
Mounting Options	Field Enclosure 4, 1×8 FBM, 1×12 FBM, Industrial Enclosures 16 and 32
Visual Indicators	LEDs for status monitoring
Redundant Configuration	Yes, supports “A” and “B” sides
Input Power	Voltage: 26 V DC to 42 V DC
Operating Current at 26 V DC	350 mA, maximum
Power Dissipation at 42 V DC	7.5 W, maximum
Battery Backup Power	Typical: 18 V DC, Minimum: 15 V DC, Maximum under battery: 21 V DC

Why Choose the Foxboro FBI10E?

The Foxboro FBI10E combines high performance with flexibility, offering reliable isolation and communication for Ethernet Fieldbus systems. You can easily integrate it with up to 24 FBMs, benefiting from robust galvanic isolation and redundant configurations. Moreover, the inclusion of visual status indicators and support for battery backup further enhances its reliability.

Whether you’re installing in harsh industrial environments or working with complex automation systems, the FBI10E guarantees continuous operation and seamless communication.
