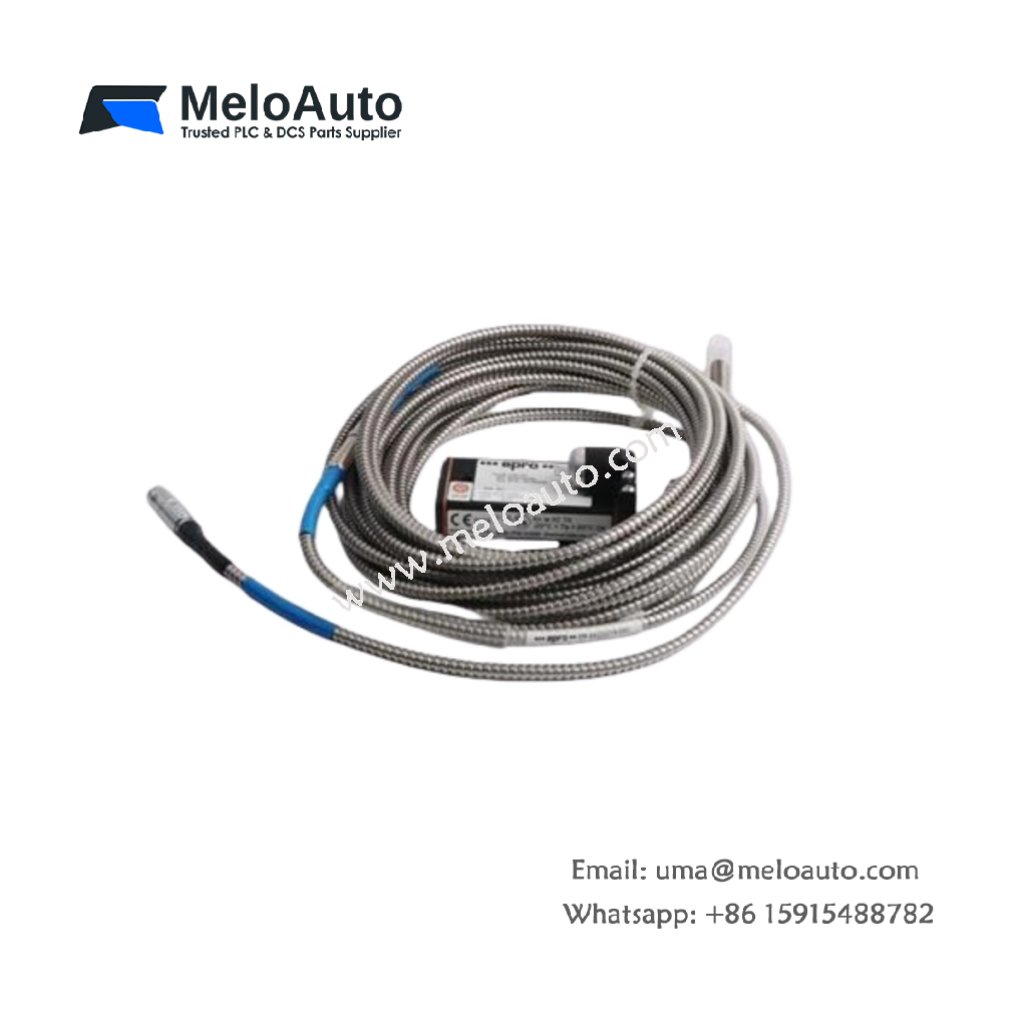

EPRO PR6423/268-110 Eddy Current Transducer

Overview

The EPRO PR6423/268-110 eddy current transducer system accurately measures mechanical parameters such as displacement and vibration. Thanks to its contactless measurement principle, this system offers precise performance in tough environments. Additionally, its small size and rugged design make it perfect for integration into various industrial applications, including turbomachinery. As a result, industries such as power generation, aerospace, and research laboratories rely on the EPRO PR6423/268-110 for critical measurement tasks.

Key Applications

The EPRO PR6423/268-110 is versatile and ideal for monitoring key parameters in rotating machinery. Some common applications include:

Clearances between rotating and stationary parts
Vibration of rotating and stationary machine components
Dynamic motion and eccentricity of shafts
Deformation or bending of rotating or stationary parts
Axial and radial shaft movements
Thrust bearing positions and wear detection
Oil film thickness measurement
Differential expansions between parts
Housing expansions and valve positions

This transducer provides valuable data, helping to optimize performance and prevent mechanical failures.

How It Works

The EPRO PR6423/268-110 operates in conjunction with a signal converter, forming a complete oscillator circuit. As a metallic object approaches the transducer, the amplitude of oscillation decreases. This damping effect is directly proportional to the distance between the transducer face and the object. Furthermore, the EPRO PR6423/268-110 system comes pre-calibrated, so users only need to adjust the gap between the transducer and the object to get accurate results. As a result, no on-site calibration is necessary.

Benefits

Contactless measurement: The EPRO PR6423/268-110 measures parameters without physical contact, extending component life and reducing maintenance.
Compact and durable: The small form factor and rugged build make it perfect for harsh environments.
Ease of use: The system requires minimal adjustment for optimal performance. Pre-calibration ensures a simple setup.
Versatility: This transducer is capable of measuring a variety of parameters, offering broad industrial application.

Technical Specifications

Parameter	Specification
Model	EPRO PR6423/268-110
Measurement Principle	Eddy current, contactless
Sensitivity/Linearity	4V/mm (101.6mV/mil) ±1.5%
Air Gap (Center)	Approx. 2.7mm (0.11”) nominal
Long-Term Drift	<0.3%
Frequency Range (-3dB)	0 to 20,000Hz
Rise Time	<15 µs
Protection Class	IP67 (dust-tight, waterproof)
Operating Temperature	-35°C to +150°C (-31°F to 302°F)
Material (Sleeve)	Stainless Steel
Material (Cable)	PTFE
Weight (Sensor + 1m Cable)	~320 grams (11.29 oz)
Mounting	4 screws M5x20 (included)
Power Supply	-23V to -32V (output range: -4V to -2V)
	-21V to -32V (output range: -2V to -18V)
Signal Output	Self-locking Lemo plug for transducer, screw terminal for power/output
Max Surface Speed	2,500 m/s (98,425 ips)

Conclusion

The EPRO PR6423/268-110 provides a highly reliable solution for measuring mechanical parameters in rotating machinery. Its contactless measurement method ensures accurate results while reducing maintenance costs. Furthermore, its compact design and robust construction make it an excellent choice for industrial environments. With its ability to measure a variety of parameters, the EPRO PR6423/268-110 is a versatile and essential tool for modern automation and machinery monitoring.
