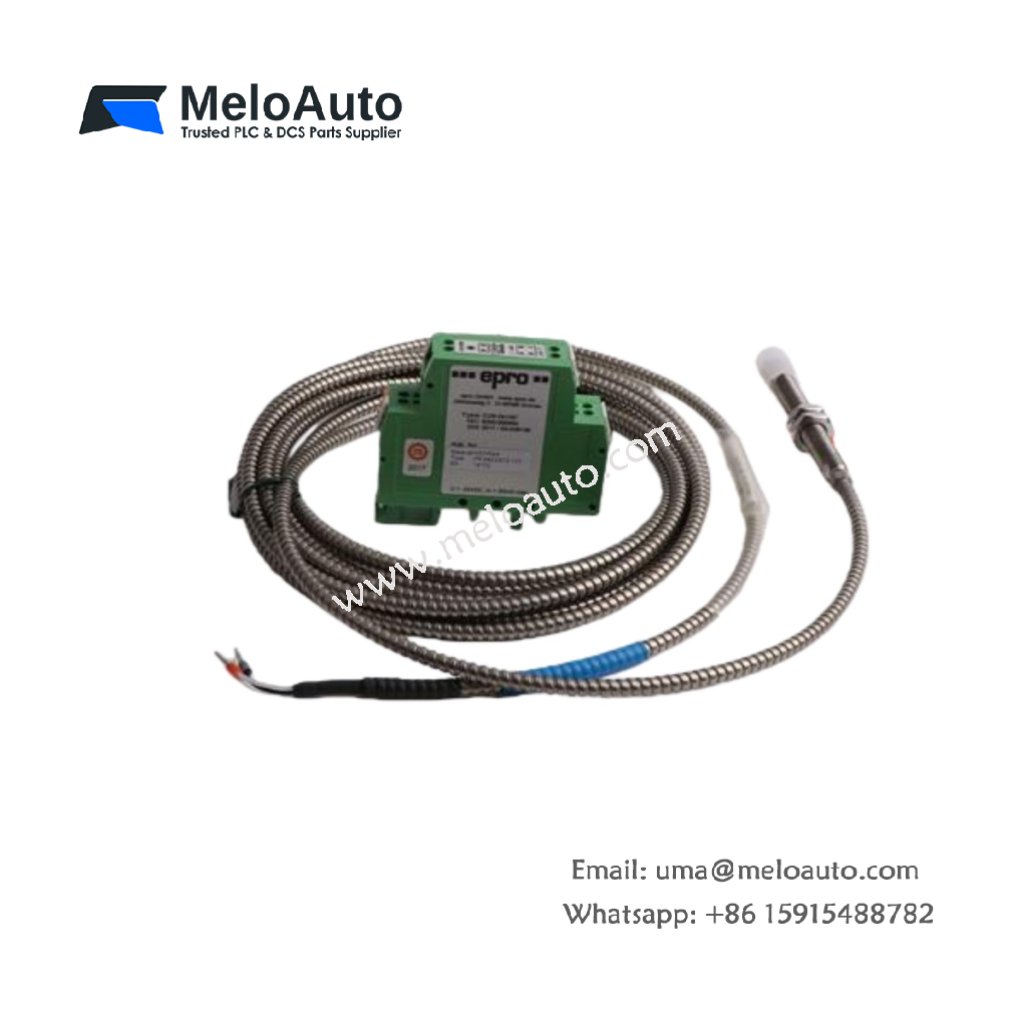

EPRO PR6423/244-110 Eddy Current Transducer System

Overview

The EPRO PR6423/244-110 is a highly versatile eddy current transducer system specifically designed to measure crucial mechanical parameters, such as displacement and vibration. Using a contactless measurement principle, this system offers reliable and precise results. Its compact size, rugged design, and resistance to harsh environments make it the ideal solution for a wide range of industrial applications, particularly in turbomachines.

Moreover, the EPRO PR6423/244-110 provides consistent performance across various industries and laboratories. It helps monitor multiple parameters effectively, ensuring the smooth operation of critical machinery.

Key Features

• Contactless Measurement: The system employs advanced eddy current technology, allowing for highly accurate measurements without physical contact. This feature eliminates wear and enhances durability.
• Versatility in Applications: The EPRO PR6423/244-110 effectively measures key parameters such as displacement, vibration, and dynamic motion. It is ideal for monitoring rotating and stationary parts in machinery.
• Compact & Durable: Despite its small size, this transducer is built to withstand extreme conditions. Its rugged construction ensures reliable performance even in aggressive environments.
• Pre-Adjusted Setup: Delivered pre-adjusted, the system eliminates the need for on-site calibration. Simply adjust the gap between the transducer and the object to obtain accurate measurements.
• Real-Time Monitoring: This system continuously monitors the machine components in real-time, offering essential insights to prevent machine failures and enhance operational efficiency.

Applications

The EPRO PR6423/244-110 is suitable for monitoring various parameters in turbomachines and similar equipment:

• Clearance Monitoring: Measures the distance between rotating and stator parts to ensure proper alignment.
• Vibration Detection: Tracks vibrations in rotating components and other machine parts to identify potential issues.
• Dynamic Motion: Monitors the dynamic motion and eccentricity of shafts, ensuring smooth operation.
• Deformation Detection: Identifies bending or deformation in rotating or stator components.
• Axial & Radial Shaft Movements: Measures both axial and radial movements of shafts, crucial for precise operation.
• Thrust Bearing Monitoring: Tracks the position and wear of thrust bearings to prevent failure.
• Oil Film Thickness: Measures the thickness of the oil film to ensure proper lubrication.
• Differential & Housing Expansion: Monitors differential expansions and housing expansions, ensuring the machine operates optimally.

How It Works

The EPRO PR6423/244-110 transducer, along with its signal converter, forms an oscillator circuit. As a metallic object approaches the transducer, the amplitude of oscillation decreases, which directly correlates with the distance between the object and the transducer. This setup eliminates the need for on-site calibration. Only the gap between the transducer and the measuring object needs to be adjusted to achieve accurate readings.

Technical Specifications

Advantages

• Reduced Maintenance: Thanks to its contactless measurement, the system eliminates mechanical wear. This feature significantly reduces maintenance needs and extends the transducer’s lifespan.
• Easy Integration: The system integrates seamlessly with existing monitoring setups. The pre-adjusted configuration further simplifies the installation process.
• High Accuracy: The EPRO PR6423/244-110 provides exceptional precision, with a resolution of 12 bits. This level of accuracy ensures reliable measurements in critical applications.
• Reliable in Harsh Environments: Designed to withstand tough conditions, this transducer delivers stable performance, even in the most demanding environments.

Conclusion

The EPRO PR6423/244-110 eddy current transducer system is the ideal solution for precise measurement of mechanical parameters such as displacement, vibration, and shaft movements. Its contactless design, rugged build, and ease of integration make it perfect for use in turbines and similar machinery. With its high accuracy, reduced maintenance requirements, and pre-adjusted configuration, this system ensures smooth operation in a variety of industrial applications.
