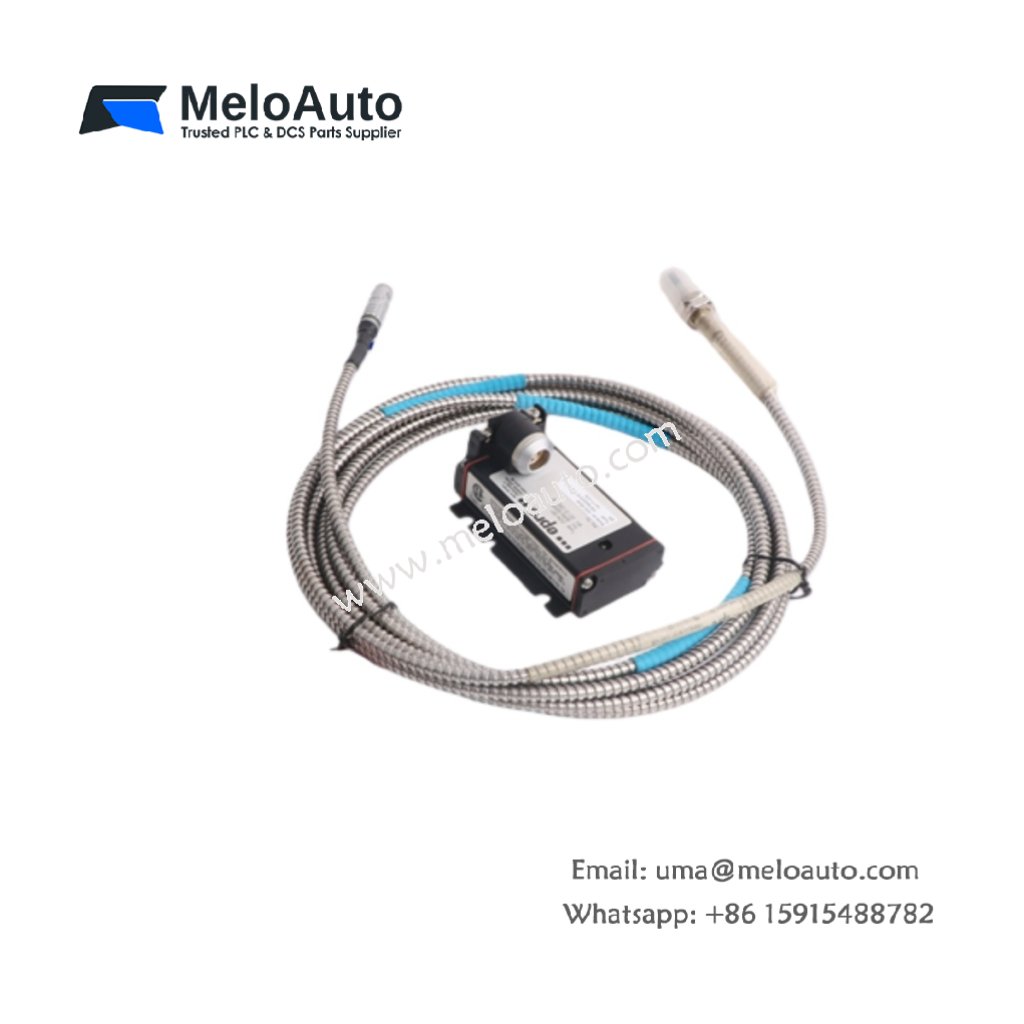

EPRO PR6423/10R-111 Eddy Current Sensor

Overview

The EPRO PR6423/10R-111, developed by Emerson EPRO, is a highly precise eddy current sensor designed to monitor vibration in rotating machinery, particularly in smaller shafts such as those found in turbines, gearboxes, and pumps. By utilizing the principle of eddy currents, this sensor accurately detects the distance between its tip and the shaft surface. This non-contact measurement ensures consistent performance and reliability even in the most demanding industrial environments.

Key Features

Non-Contact Measurement: The EPRO PR6423/10R-111 operates without physical contact, ensuring minimal wear and long-lasting accuracy.
High Accuracy and Sensitivity: This sensor delivers precise vibration readings, crucial for effective machinery monitoring and maintenance.
Wide Temperature Range: With a range from -40°C to 200°C (-40°F to 392°F), it performs reliably in extreme conditions.
Compact and Reverse Mount Design: Ideal for tight spaces, this design makes installation easy, even in hard-to-reach locations.
IP67 Protection: The EPRO PR6423/10R-111 features an IP67-rated enclosure, making it resistant to dust and water ingress for added durability.
CE and RoHS Certified: This sensor complies with European safety and environmental standards, ensuring high-quality performance in any industrial setting.

Technical Specifications

Specification	Details
Model	EPRO PR6423/10R-111
Sensor Type	Eddy Current (Non-Contact)
Sensor Tip Diameter	8 mm
Measurement Range	0 to 10 mm
Linearity	± 0.25%
Resolution	0.1 µm
Operating Temperature Range	-40°C to +200°C (-40°F to 392°F)
Process Pressure	Up to 20 bar (290 psi)
Electrical Connection	M12 Connector
Output Signal	4-20 mA DC
Operating Voltage	24 V DC
Input Channels	1
Communication Protocol	HART
Accuracy	± 0.025 mm (0.001 inches)

Applications

The EPRO PR6423/10R-111 is designed for critical vibration monitoring and shaft displacement measurement in industrial machinery. Key applications include:

Turbomachinery: For precise vibration and eccentricity measurements in turbines.
Gearboxes and Pumps: Monitoring of bearing wear and shaft alignment.
Shaft Runout and Eccentricity: Detecting shaft movement to prevent system failures.
Condition Monitoring: Continuous tracking of machine health to predict potential failures.
Bearing Wear and Gearbox Monitoring: Ensuring smooth operation by detecting early signs of wear or misalignment.
