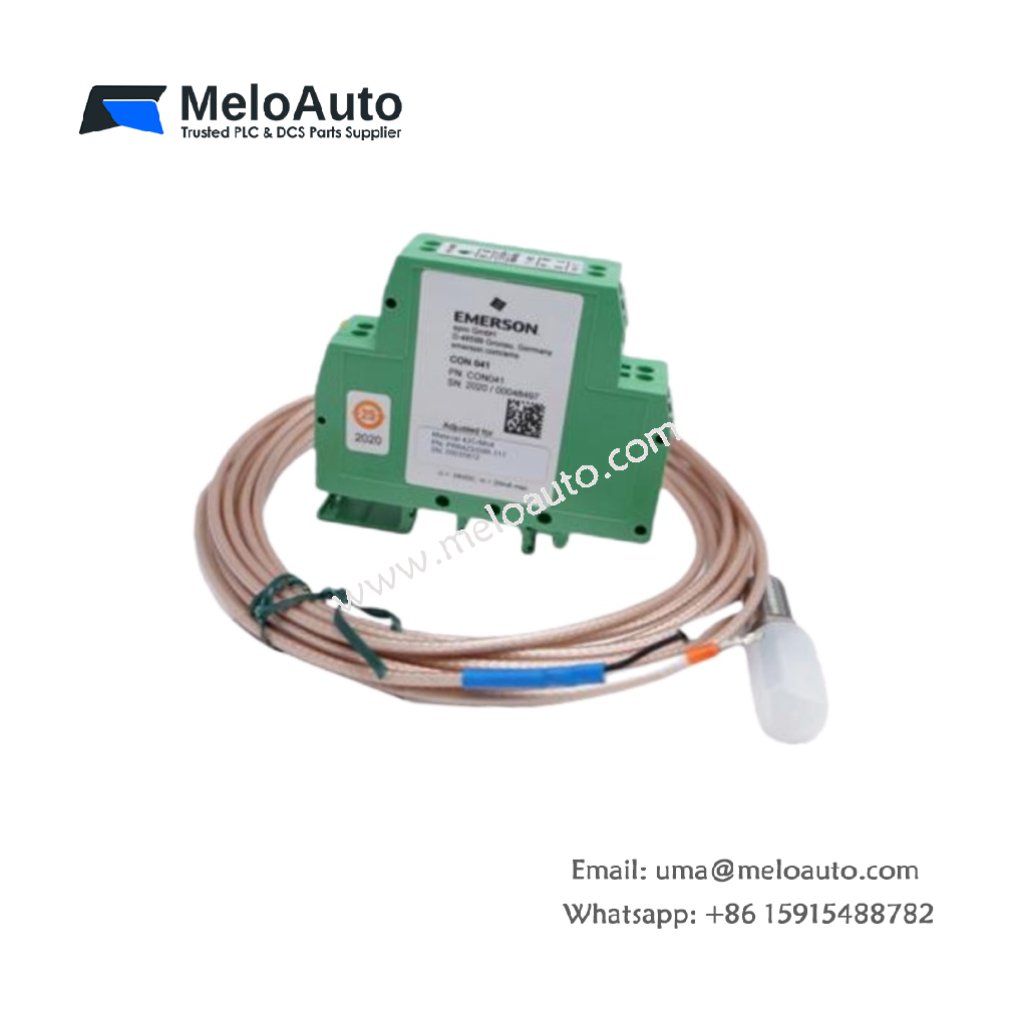

EPRO PR6423/099-110 Eddy Current Transducer System

Overview

The EPRO PR6423/099-110 eddy current transducer system is specifically designed to measure mechanical parameters like displacements, vibrations, and dynamic behaviors. It serves various industries, including turbomachines, laboratories, and manufacturing. Thanks to its contactless measurement technology, this system ensures reliable and precise performance in harsh environments.

Key Features

Contactless Measurement: The system uses eddy current technology to measure parameters without physical contact, increasing its durability and reliability in demanding environments.
Compact and Rugged Design: The small size and robust design enable it to withstand tough industrial conditions. It is perfect for turbomachines and other high-precision applications.
High Precision: With a deviation as low as ± 0.025 mm, this system ensures accurate measurements across a wide temperature range.

Applications

The EPRO PR6423/099-110 transducer system is ideal for the following measurements:

Clearances between rotating and stator components
Vibrations of rotating and other machine parts
Dynamic motion and eccentricity of shafts
Deformation or bending of rotating or stator elements
Axial and radial shaft movements
Thrust bearing positions and wear
Oil film thickness
Differential expansions
Valve positions
Housing expansions

Technical Specifications

Parameter	Value
Linear Measurement Range	2 mm (80 mils)
Initial Air Gap	0.5 mm (20 mils)
Incremental Scale Factor (ISF)	ISO: 8 V/mm (203.2 mV/mil) ± 5% @ 0 to 45°C
Deviation from Best Fit Line (DSL)	± 0.025 mm (± 1 mil) @ 0 to 45°C
Measuring Target	Ferromagnetic Steel
Minimum Shaft Diameter	25 mm (0.79”)
Target Material	42CrMo4 (AISI/SAE 4140) Standard
Protection Class	IP66, IEC 60529
Operating Temperature Range	Sensor: -35 to +180°C (-31 to +356°F)
	Cable & Connector: -35 to +150°C (-31 to +302°F)
Materials	Sensor Tip: PEEK (Polyether Ether Ketone)
	Case: Stainless Steel
	Cable: PTFE (Polytetrafluoroethylene)
	Connector: Brass, Nickel-plated
Weight (with 1m Cable)	Approx. 100 grams (3.53 oz)

How It Works

The EPRO PR6423/099-110 system forms an oscillator circuit with its signal converter. As a metallic object approaches the transducer, the amplitude of oscillation diminishes. This damping is directly related to the distance between the sensor and the object. The system allows for high-precision measurements, even in environments where physical contact is not possible.

Once the system is delivered, it comes fully calibrated, so no on-site adjustments are necessary. You only need to adjust the gap between the transducer and the target to achieve the specified signal output.

Conclusion

Thanks to its innovative design and advanced eddy current technology, the EPRO PR6423/099-110 transducer system excels in providing reliable, high-accuracy measurements in challenging environments. Its robustness, ease of integration, and precision make it the top choice for industries that require dependable measurement solutions for turbomachines and other critical systems.
