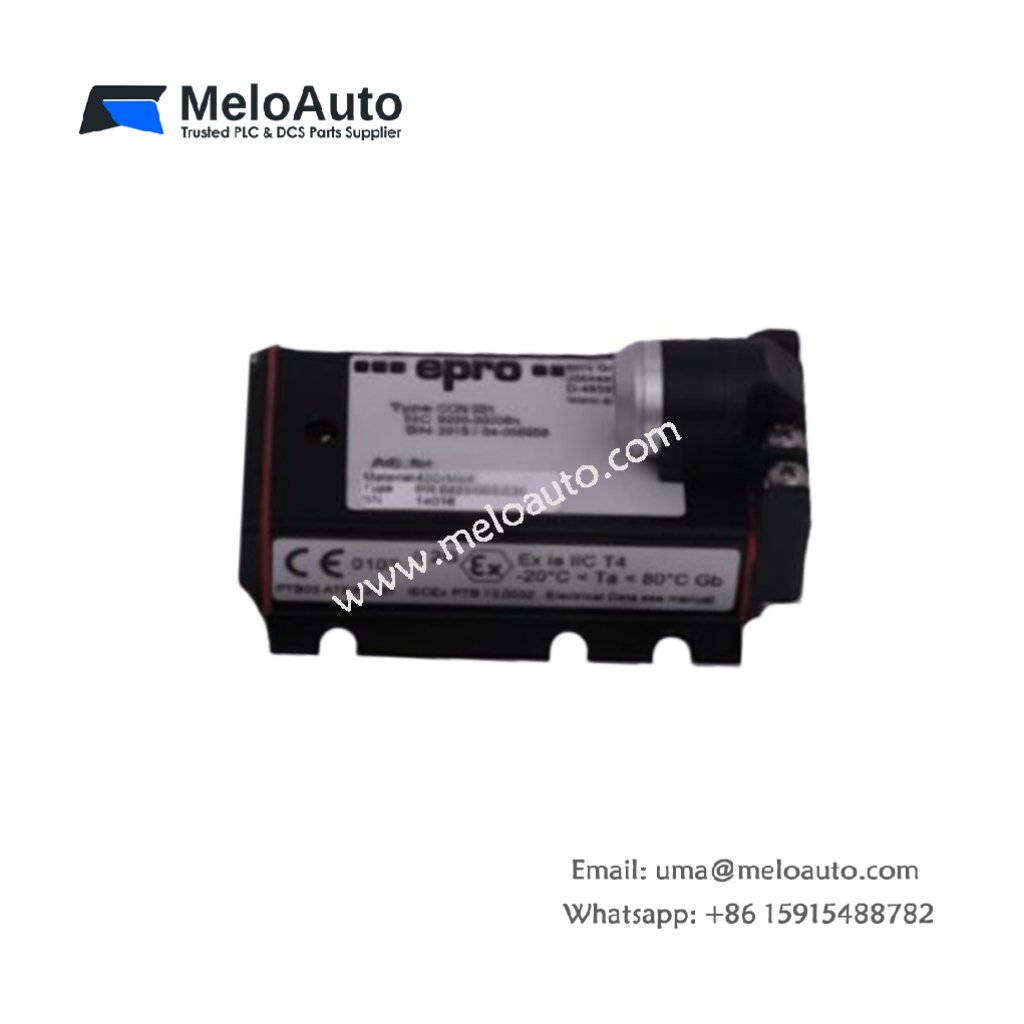

EPRO PR6423/00C-031-CN CON041-CN Eddy Current Sensor

The EPRO PR6423/00C-031-CN CON041-CN is a high-performance eddy current sensor built for precise measurements in critical turbomachinery applications. Designed to monitor dynamic displacement, position, eccentricity, and speed, this sensor delivers consistent, accurate results in demanding environments like steam turbines, gas turbines, compressors, gearboxes, pumps, and fans. The sensor’s non-contact technology ensures minimal wear, reducing the risk of damage to both the sensor and the machinery.

Key Features

Non-Contact Measurement: The EPRO PR6423/00C-031-CN CON041-CN employs an advanced non-contact measurement technique. This eliminates the need for physical contact, minimizing wear and preventing contamination of both the sensor and target.
High Sensitivity & Accuracy: With ±0.1 mm position measurement accuracy and +0.05 mm eccentricity accuracy, this sensor guarantees precise readings. Its high sensitivity ensures reliable performance even in challenging conditions.
Wide Temperature Range: The sensor operates effectively between -20°C and +80°C, making it suitable for use in various industrial environments with fluctuating temperatures.
Vibration & Shock Resistance: The EPRO resists 20 g peak-to-peak vibration (10 to 2,000 Hz) and 50 g shock (11 ms), providing stable performance in high-vibration machinery.
Rugged & Durable: Thanks to its IP65 protection rating, this sensor is built to withstand dust, moisture, and extreme conditions. Its robust construction ensures reliability even in harsh industrial settings.
Easy Installation & Maintenance: The EPRO is designed for quick installation and easy integration. It also requires minimal maintenance, reducing downtime and operational costs.

Technical Specifications

Specification	Details
Part Number	PR6423/00C-031-CN CON041-CN
Type	Eddy Current Sensor
Radial Measurement Range	+25 mm
Axial Measurement Range	+10 mm
Position Measurement Accuracy	±0.1 mm
Eccentricity Measurement Accuracy	+0.05 mm
Speed Measurement Accuracy	+1% full scale
Operating Temperature Range	-20°C to +80°C
Humidity Range	0 to 100% RH
Vibration Resistance	20 g peak-to-peak, 10 to 2,000 Hz
Shock Resistance	50 g peak, 11 ms
Protection Class	IP65
Power Supply Range	-23V to -32V DC
Housing Material	PA 6.6 (Polyamide)
Weight	~60 grams (2.12 oz)
Mounting	Din Rail
Connections	Screw Terminal (Max. 1.5 mm², wire-end sleeves)

Applications

The EPRO PR6423/00C-031-CN CON041-CN excels in applications that require accurate and reliable displacement and position measurements in high-performance machinery. Here are some common uses:

Steam Turbines: Monitors both radial and axial displacement, ensuring optimal performance and early issue detection.
Gas and Hydro Turbines: Measures eccentricity and dynamic displacement, helping to monitor turbine health and prevent potential failures.
Compressors: Tracks position, displacement, and speed for continuous performance monitoring, enabling proactive maintenance.
Gearboxes: Ensures precise measurement of displacement and eccentricity, safeguarding gear systems against failure.
Pumps & Fans: Measures speed and displacement, contributing to efficient operation and reducing maintenance costs.

Why Choose the EPRO PR6423/00C-031-CN CON041-CN?

When you choose the EPRO PR6423/00C-031-CN CON041-CN, you invest in a sensor designed for critical industrial applications. This sensor’s non-contact measurement principle reduces wear, enhancing durability and extending sensor life. Moreover, its high accuracy and wide operating range make it versatile across many industrial systems. Whether you’re monitoring turbines, compressors, or gearboxes, this sensor will deliver the precision required to ensure optimal performance and avoid costly downtime.
