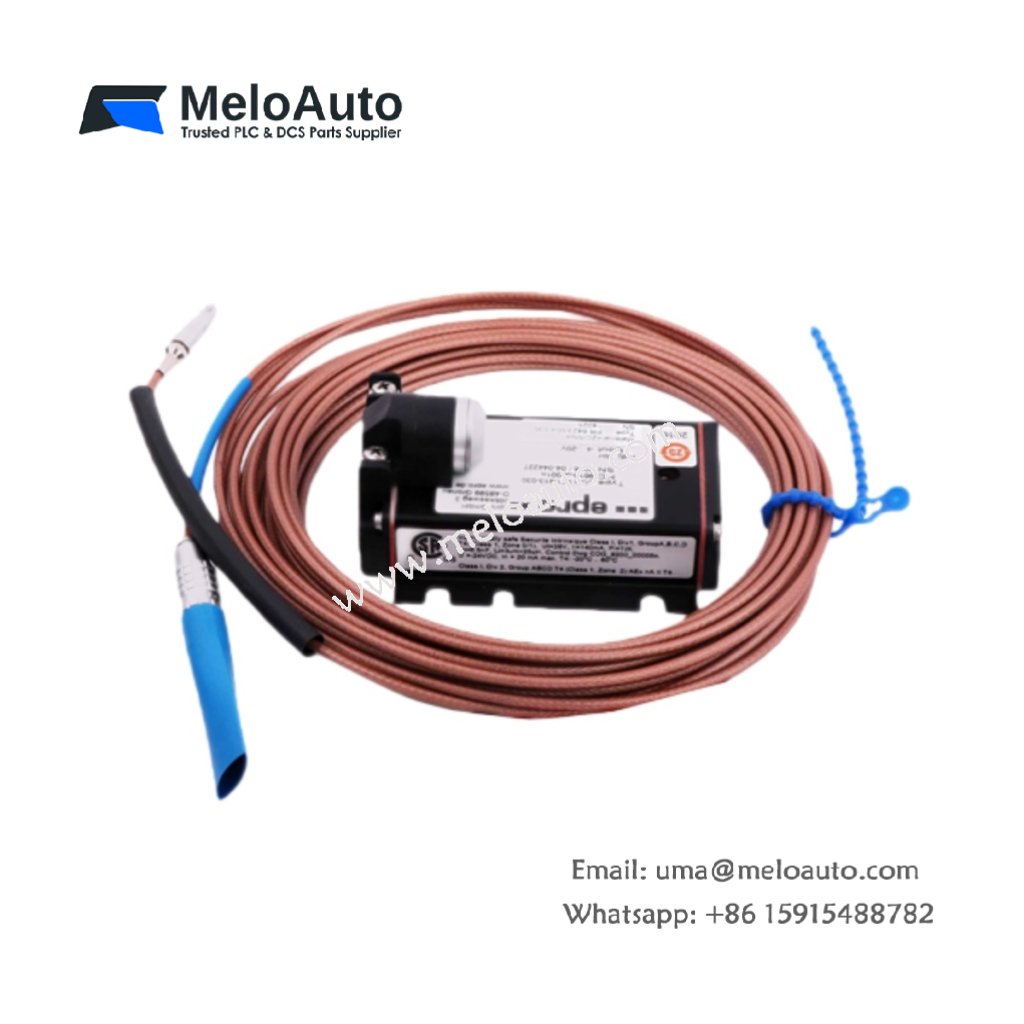

EPRO PR6423/004-030 CON021 Eddy Current Sensor

Overview

The EPRO PR6423/004-030 CON021 is a high-performance eddy current sensor designed to measure static and dynamic shaft displacement. This contactless sensor is ideal for various industrial applications, including monitoring axial and radial shaft displacement, eccentricity, vibration, abrasion of thrust bearings, and oil film thickness. Additionally, it is capable of detecting shaft cracks with high precision.

With its exceptional accuracy and wide operating range, the EPRO PR6423/004-030 CON021 meets stringent industrial standards, such as API 670, DIN 45670, and ISO 10817-1. Certified for use in explosive environments (Ex ib II C T6/T4), it is an excellent choice for integration into MMS 3000 and MMS 6000 machine monitoring systems.

Key Features

Contactless Measurement: The EPRO PR6423/004-030 CON021 offers non-contact measurement, reducing wear and tear and ensuring long-term reliability.
Wide Temperature Range: This sensor operates effectively within a temperature range of -40°C to +85°C, providing versatility across a broad spectrum of industrial environments.
Wide Humidity Range: The EPRO PR6423/004-030 CON021 can function in humidity conditions ranging from 0 to 95% RH, ensuring optimal performance in diverse applications.
Vibration and Shock Resistance: Built to withstand vibration (up to 20g pk-pk) and shock (up to 50g pk-pk), the sensor excels in harsh, dynamic environments.
Low Power Consumption: The sensor is energy-efficient with low power consumption, which minimizes operational costs.
High Output Signal: The EPRO PR6423/004-030 CON021 provides a strong and reliable output signal for easy integration with monitoring systems.
Easy Installation and Operation: This sensor is designed for straightforward installation and user-friendly operation, reducing setup time and simplifying maintenance.

Technical Specifications

Parameter	Value
Model Number	PR6423/004-030 CON021
Measurement Range	0 to 0.1 mm
Resolution	0.001 mm
Accuracy	±0.05%
Operating Temperature	-40°C to +85°C
Humidity	0 to 95% RH
Vibration Resistance	Up to 20g pk-pk
Shock Resistance	Up to 50g pk-pk
Power Consumption	Low
Output Signal	High
Mounting Type	Threaded or Flanged
Hazardous Area Certification	Ex ib II C T6/T4

Applications

Machine Protection: The EPRO PR6423/004-030 CON021 continuously monitors shaft displacement and vibration, protecting critical machinery from damage.
Condition Monitoring: It helps track machinery health, enabling early detection of potential problems before they cause significant failures.
Process Control: This sensor supports precise control in industrial processes by measuring key parameters such as shaft displacement and vibration.
Aerospace: Ideal for use in aircraft engines and other aerospace applications, where high precision is critical.
Automotive: Utilized in the automotive industry for monitoring engine components and other high-performance machinery.
Power Generation: Essential for monitoring rotating machinery such as turbines and generators.
Oil and Gas: Used in critical applications within the oil and gas industry for accurate shaft measurements in turbines and compressors.
Pulp and Paper: Supports equipment monitoring in the pulp and paper industry to ensure smooth operations.
Steel and Cement: In heavy industries like steel and cement, it helps monitor the condition of large rotating machinery.
Food and Beverage: Employed to monitor processing machinery in the food and beverage industry, ensuring continuous production.
