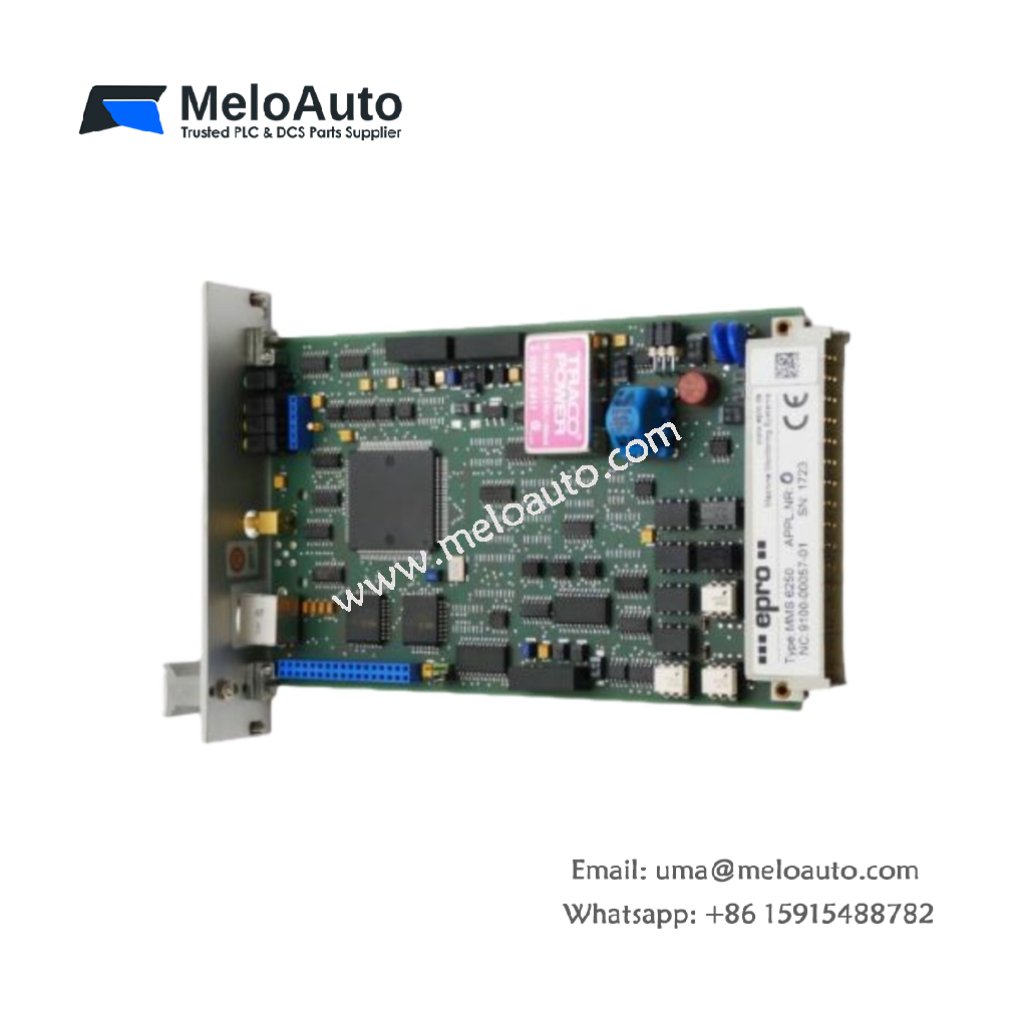

EPRO MMS6250/A6250 Multi-Channel Measurement System

Overview

The EPRO MMS6250/A6250 is an advanced microcontroller-based measuring system designed for precise measurement and monitoring of critical parameters in industrial automation. It features a three-channel configuration, with multiple safety features and output options for seamless integration into various systems. With its wide measurement range, high accuracy, and robust interfaces, the EPRO MMS6250/A6250 is ideal for use in industrial applications where reliability and flexibility are essential.

Key Features

Three-Channel Measurement System: The EPRO MMS6250/A6250 provides simultaneous monitoring of three channels, ensuring accurate measurements of different parameters at the same time.
High Safety Standards: The system incorporates password protection for each of its monitors, ensuring secure access and minimizing the risk of unauthorized adjustments or alterations.
Multiple Limit Values: Each channel can handle up to six limit values, enabling flexible configuration for various monitoring needs.
Redundant Power Supply: The EPRO MMS6250/A6250 supports redundant power supplies for both the monitors and backplane, ensuring continuous operation even in case of power failure.
Self-Test and Fault Detection: Built-in self-test functions for electronic circuits and sensors make troubleshooting easier. Additionally, the system simplifies fault detection with clear, plain-text display messages.
Electrical Isolation: The system features electrical isolation for binary input and output signals, enhancing protection against electrical interference.
RS 485 & RS 232 Interfaces: The EPRO MMS6250/A6250 includes both RS 485 and RS 232 interfaces, allowing for easy data exchange with host computers and parameter input.

Technical Specifications

Feature	Specification
Model	MMS6250/A6250
Manufacturer	EPRO
Measurement Range	0° to 360°
Accuracy	±0.10°
Resolution	12 bits
Output Signal	Analog (4-20mA) or Digital (RS485)
Power Supply	24 VDC
Operating Temperature	-20°C to 70°C
Limit Values per Channel	Up to 6
Current Outputs	Two per channel, one electrically isolated
Interfaces	PROFIBUS-DP (optional), RS 485, RS 232
Safety Features	Password protection, self-test functions, fault detection
Input/Output Isolation	Electrical isolation for binary signals
Redundant Supplies	Monitors and backplane

Applications

The EPRO MMS6250/A6250 system is designed to meet the needs of industries requiring reliable and accurate multi-channel measurement and monitoring. Its applications include:

Process Control: Real-time monitoring of multiple parameters in industrial processes.
Machine Safety: Monitoring limit values to ensure the safe operation of machinery.
Automation Systems: Integration into automation systems for continuous data exchange and parameter adjustments.
Environmental Monitoring: Used in systems that monitor environmental factors, such as temperature and pressure.

How It Works

The EPRO MMS6250/A6250 operates on a microcontroller-based system, processing input from three independent channels simultaneously. The system provides both analog and digital outputs, depending on user needs. With the ability to handle multiple limit values per channel, it allows for detailed and specific control of monitored parameters. The system’s high level of safety ensures that each monitor is protected by password controls, preventing unauthorized access and modifications.

Additionally, the EPRO MMS6250/A6250 offers simple fault detection, making it easier to identify and address issues through clear, plain-text messages. The system also includes self-test functions for both the electronic circuits and sensors, ensuring reliability over time.

Conclusion

The EPRO MMS6250/A6250 multi-channel measuring system is a versatile, reliable, and secure solution for industrial applications. With its high measurement accuracy, redundant power options, and robust interfaces, it ensures efficient and safe operation in demanding environments.
