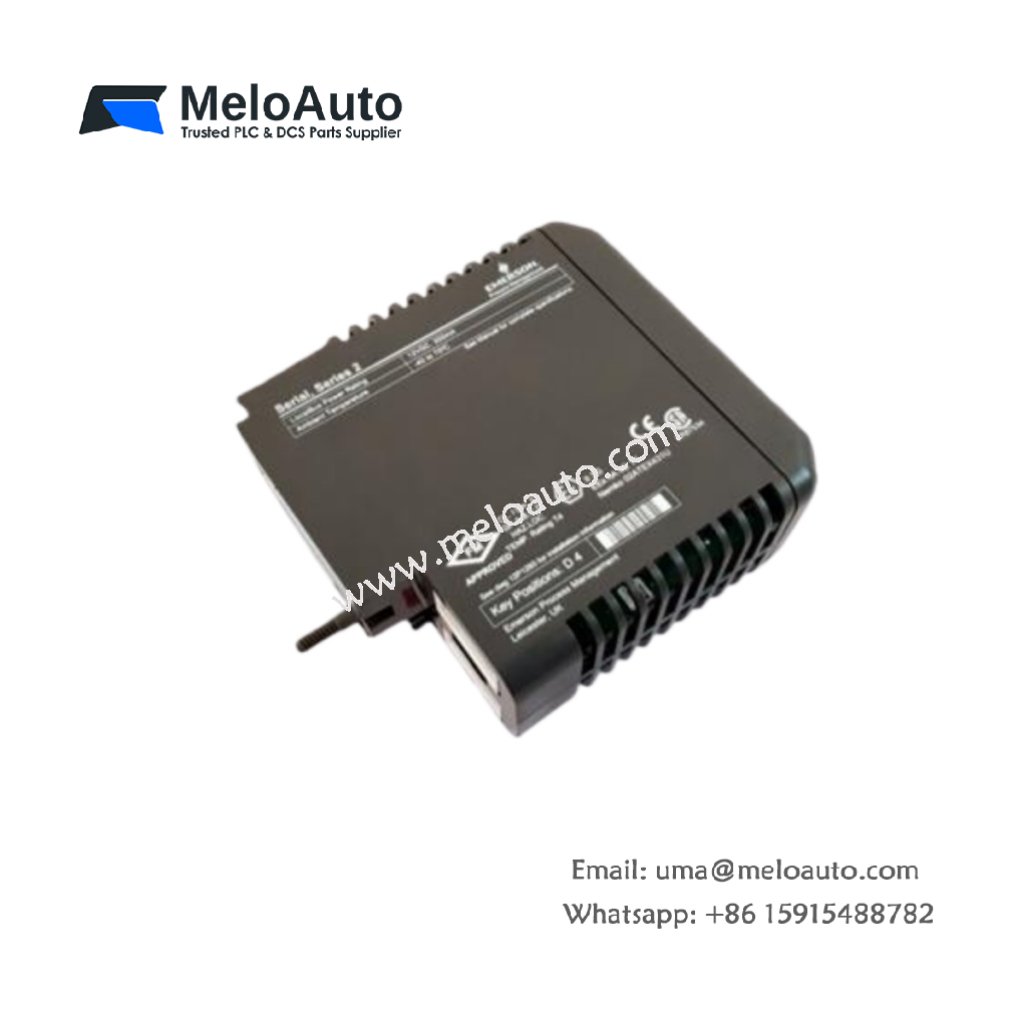

Emerson VE4006P2 KJ3241X1-BA1 12P2506X062 Interface Card

The Emerson VE4006P2 KJ3241X1-BA1 12P2506X062 is a high-performance redundant serial interface card designed for seamless integration with the Emerson DeltaV DCS. This module provides two serial ports to connect devices using RS-232 or RS-485 protocols, ensuring reliable and efficient communication for industrial automation systems.

Key Features

Redundant Design for High Availability
The VE4006P2 KJ3241X1-BA1 12P2506X062 features a redundant architecture that ensures continuous operation. This design significantly reduces the risk of downtime, making it ideal for critical applications where reliability is paramount.
Versatile Port Compatibility
With support for both RS-232 and RS-485 devices, this card provides flexible connectivity options. It can easily connect to a wide range of industrial devices, such as PLCs, RTUs, and other serial devices, offering greater versatility in industrial setups.
Easy Installation & Maintenance
The card supports plug-and-play installation, making setup quick and hassle-free. Additionally, it is hot-swappable, allowing for easy replacement or maintenance without system downtime. This feature improves operational efficiency in mission-critical environments.
High-Speed Data Transfer
The VE4006P2 KJ3241X1-BA1 12P2506X062 supports data rates of up to 115.2 kbps, ensuring fast and reliable data transfer for demanding industrial applications.

Technical Specifications

Specification	Details
Part Number	VE4006P2 KJ3241X1-BA1 12P2506X062
Brand	Emerson
Product Type	Redundant Serial Interface Card
Compatibility	Emerson DeltaV DCS
Number of Ports	2
Port Type	RS-232 / RS-485
Data Rate	Up to 115.2 kbps
Power Supply	12 VDC at 300 mA
Temperature Range	-40°C to +70°C
Shock Resistance	10g ½ Sinewave for 11msec
Vibration Resistance	1mm Peak to Peak (2 to 13.2Hz); 0.7g (13.2 to 150Hz)
Contaminants	ISA-S71.04 –1985 Class G3
Humidity Range	5% to 95% Non-Condensing
IP Rating	IP 20

Environmental Specifications

Ambient Temperature: -40°C to +70°C
Shock: 10g ½ Sinewave for 11 milliseconds
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Contaminants: ISA-S71.04 –1985 Class G3
Humidity: 5 to 95% Non-Condensing
IP Rating: IP 20

Applications

The VE4006P2 KJ3241X1-BA1 12P2506X062 card is ideal for industrial automation systems, offering a reliable solution for connecting to PLCs, RTUs, and other serial devices. It supports communication protocols such as Modbus and is widely used in SCADA applications. Whether you are working in industrial automation or process control, this redundant serial interface card ensures robust, high-speed communication.
