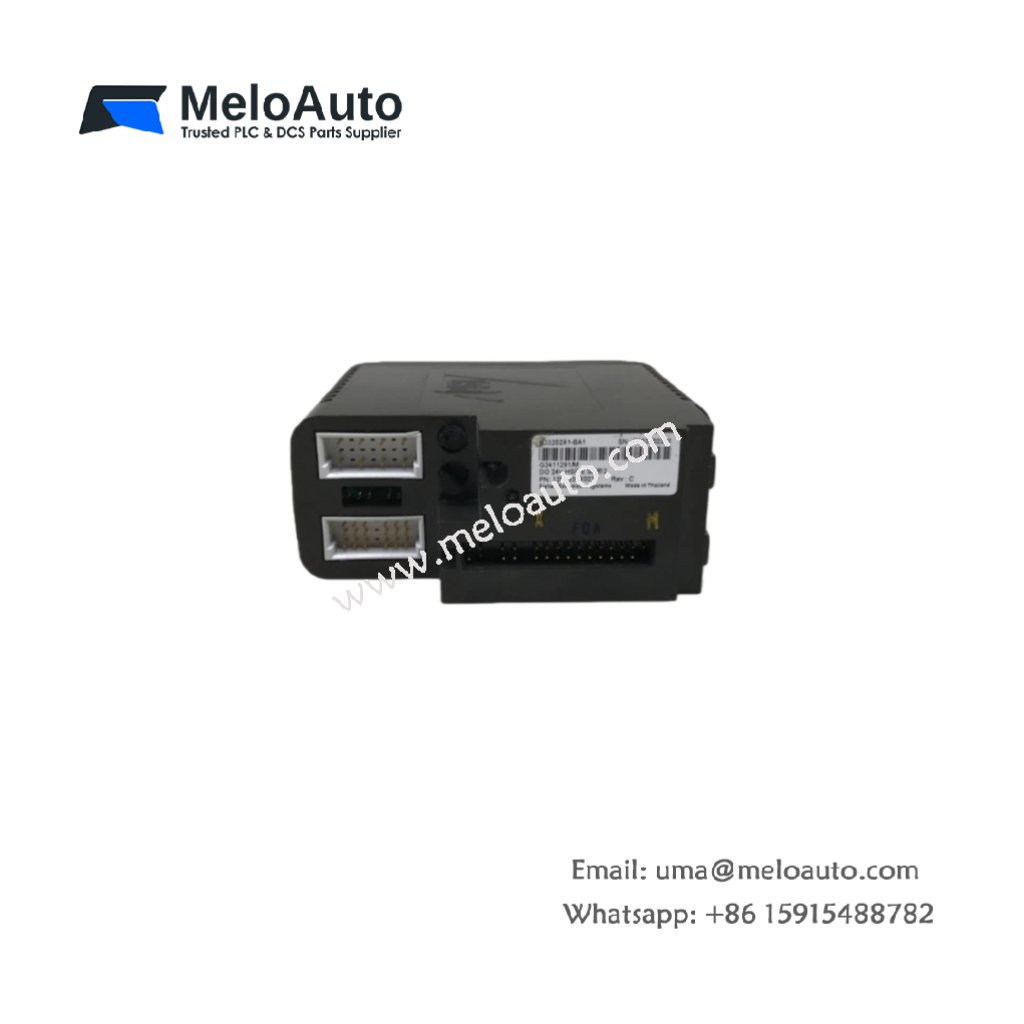

Emerson VE4003S2B1 12P3270X022 DeltaV Analog Input Card

Overview

The Emerson VE4003S2B1 12P3270X022 is a high-performance DeltaV Analog Input Card designed for precise measurement of various signals, including voltage, current, temperature, and resistance. With its 8-channel configuration, it provides flexibility for a wide range of industrial applications. The card supports universal input types, offering exceptional accuracy and resolution, making it ideal for industrial automation, process control, and scientific research.

Key Features

Universal Input Type
The VE4003S2B1 12P3270X022 is capable of measuring multiple signals, including voltage, current, temperature, and resistance, providing versatility across different applications.
High Accuracy and Resolution
With 16-bit resolution and an accuracy of ±0.1% of reading, this input card ensures precise data acquisition.
Fast Sample Rate
The card offers a sample rate of 100 samples per second, allowing for real-time monitoring and quick response times.
Isolated Inputs for Protection
The 1500V isolation ensures protection against electrical noise and prevents damage to the system.
Wide Ambient Temperature Range
With an operating temperature range of -40°C to 70°C, this card performs reliably in extreme environmental conditions.

Technical Specifications

Parameter	Details
Part Number	VE4003S2B1 12P3270X022
Brand	Emerson
Product Type	DeltaV Analog Input Card
Number of Channels	8
Input Type	Universal
Input Range	10V to +10V, 0 to 20mA, -20 to +60mA, 0 to 100mV, -5 to +5V, 0.05 to 1000Ω, 0 to 1000Ω, 0 to 5000Ω, 0 to 10000Ω
Resolution	16 bits
Accuracy	±0.1% of reading
Sample Rate	100 samples per second
Isolation Voltage	1500V
Ambient Temperature	-40°C to 70°C
Relative Humidity	0 to 95% Non-Condensing

Applications

Industrial Automation
Ideal for controlling and monitoring complex industrial processes.
Process Control
Perfect for precise process measurement in industries like oil & gas, manufacturing, and chemical processing.
Monitoring and Surveillance
The card is well-suited for continuous monitoring and data logging in remote or critical environments.
Scientific Research
Used for accurate data collection in various research and experimental setups.

Why Choose the Emerson VE4003S2B1 12P3270X022?

Versatile Inputs
With a universal input type, the card can handle a variety of signals, making it a highly adaptable solution for different applications.
Exceptional Precision
The card delivers high-resolution measurements with superior accuracy, making it ideal for applications where precision is critical.
Reliable Performance
Its fast sampling rate and isolation protection provide robust, real-time data acquisition in harsh environments.
