Emerson KJ3002X1-BG2 Thermocouple Module

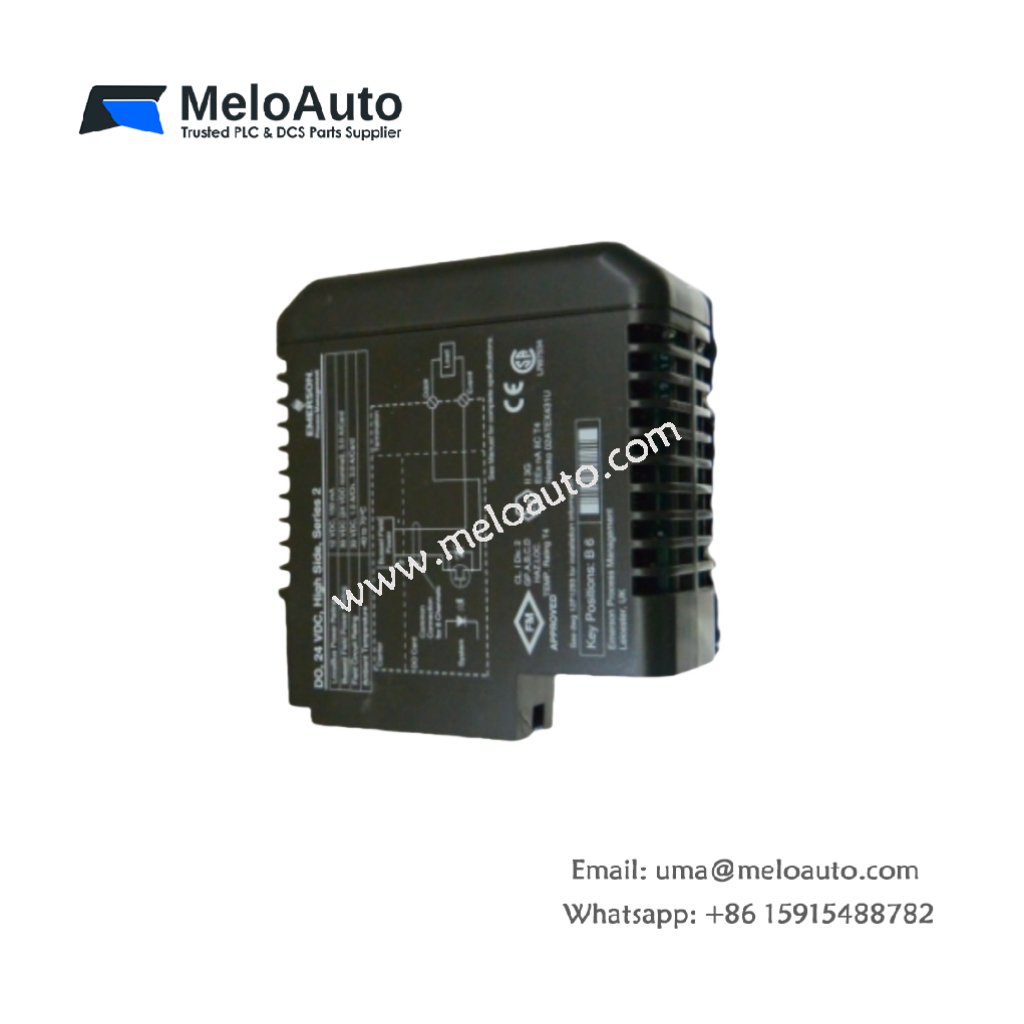

The Emerson KJ3002X1-BG2 12P1731X082 is a high-precision DeltaV Thermocouple mVCard module designed to measure temperature from thermocouples across twelve channels. Built for industrial applications, it delivers exceptional accuracy, reliability, and performance. This module is ideal for demanding environments where precision temperature monitoring is critical.

Key Features of the Emerson KJ3002X1-BG2 12P1731X082

12-Channel Input: The KJ3002X1-BG2 supports up to 12 thermocouple inputs, allowing simultaneous temperature measurements from multiple sensors.
High Resolution and Accuracy: It offers 16-bit resolution with an accuracy of +0.1% of reading, ensuring precise temperature readings.
Fast Sampling: With a sample rate of 100 samples per second, the module provides real-time data collection for dynamic applications.
Isolated Inputs: The module features 1500V isolation to protect against electrical noise and ensure stable performance.
Wide Ambient Temperature Range: Designed to operate in environments with temperatures ranging from -40°C to +70°C, this module can withstand challenging conditions.

Technical Specifications

Specification	Details
Model	KJ3002X1-BG2
Part Number	12P1731X082
Number of Channels	12
Input Type	Thermocouple
Input Range	-200°C to +1800°C
Resolution	16 bits
Accuracy	+0.1% of reading
Sample Rate	100 samples per second
Isolation Voltage	1500V
Ambient Temperature Range	-40°C to +70°C
Humidity	0% to 95% RH, non-condensing
Power Supply	12 VDC at 350 mA
Field Circuit Rating	5.5 VDC at 0.6 mA/channel

Environmental Specifications

Ambient Temperature: The KJ3002X1-BG2 operates in an ambient temperature range of 0°C to 60°C, ensuring flexibility across various industrial settings.
Shock Resistance: The module is capable of withstanding 10 g, ½ sinewave shock for 11 ms, providing durability in industrial environments.
Vibration Resistance: The module endures 1 mm peak-to-peak vibration from 5 to 16 Hz, with a 0.5 g rating from 16 to 150 Hz, making it suitable for environments with constant mechanical stress.
Airborne Contaminants: Rated for ISA-S71.04 – 1985 Airborne Contaminants Class G3, ensuring protection against environmental pollutants.
Humidity: The module is functional in 5 to 95% non-condensing humidity, guaranteeing reliable operation even in high-humidity conditions.

Applications of the Emerson KJ3002X1-BG2 12P1731X082

Industrial Automation: Perfect for controlling and monitoring temperature across complex industrial automation systems.
Process Control: Ensures precise temperature measurements in manufacturing and process control environments.
Monitoring and Surveillance: Ideal for applications that require constant temperature monitoring, ensuring system integrity.
Scientific Research: Provides reliable data for research where accurate temperature measurement is essential.

Why Choose the Emerson KJ3002X1-BG2 12P1731X082?

High Precision: With a 16-bit resolution and +0.1% accuracy, the KJ3002X1-BG2 ensures precise thermocouple measurements.
Real-Time Data Collection: The 100 samples per second sampling rate allows for real-time temperature monitoring, crucial for dynamic systems.
Industrial-Grade Reliability: Designed to operate under harsh conditions, it offers 1500V isolation, temperature resilience, and shock/vibration resistance.
Versatile Integration: It integrates easily into DeltaV™ systems, providing scalable solutions for industrial automation and process control.
