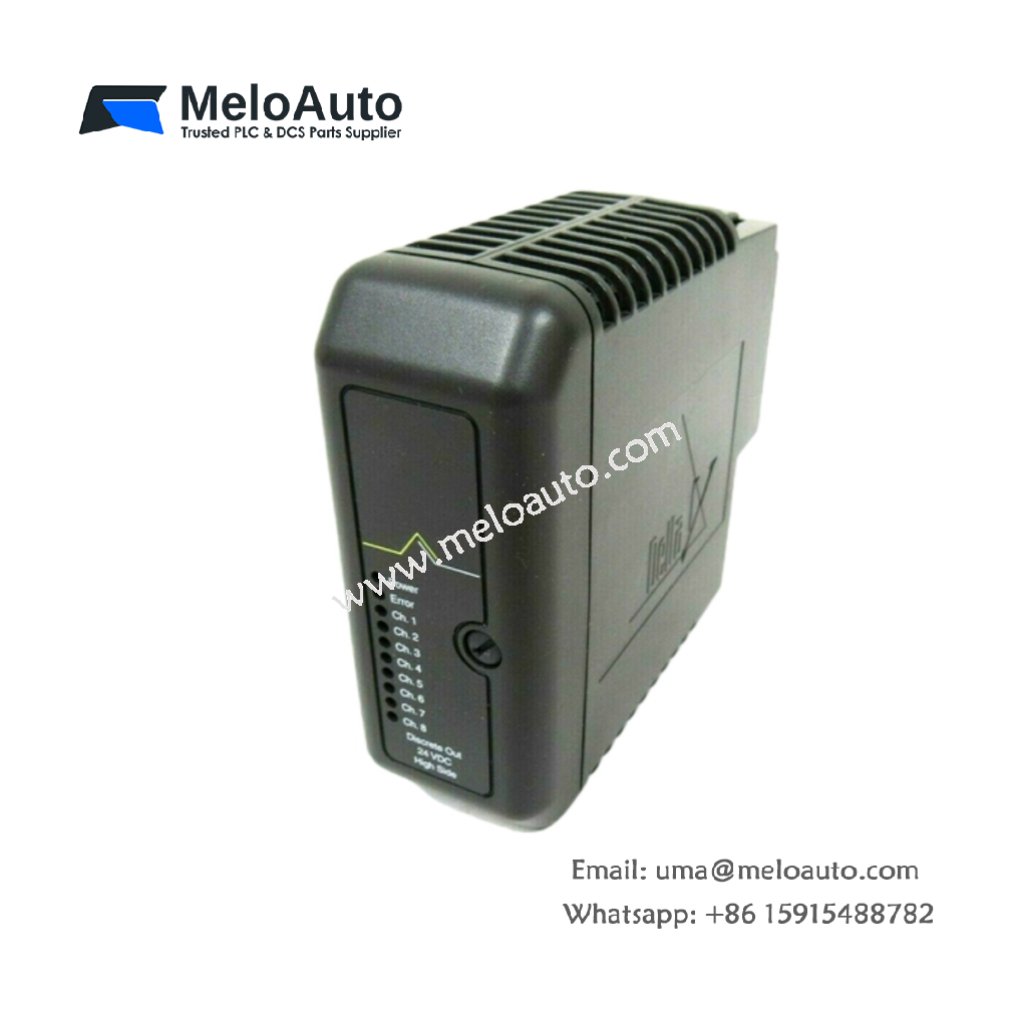

EMERSON KJ3102X1-BA1 12P1863X032 I/O Subsystem Interface Module

The EMERSON KJ3102X1-BA1 12P1863X032 is an advanced I/O subsystem interface module designed to integrate seamlessly with Emerson DeltaV systems. It offers high flexibility, reliability, and easy installation. With its variety of analog and discrete I/O cards, this module meets demanding requirements in industrial automation systems, making it the ideal choice for critical applications.

Key Features

• DIN Rail Mounting: The KJ3102X1-BA1 attaches securely to a DIN rail, ensuring quick and reliable installation, which saves time during system setup.
• Wide Power Input Range: The module uses a bulk AC to 24 VDC power supply, providing power to field devices efficiently.
• Versatile I/O Cards: It supports various analog and discrete I/O cards, offering broad compatibility with a range of field devices and sensors.
• Pre-Wiring Option: The module allows pre-wiring of terminal blocks before installation, making setup faster and more efficient.
• Simplex and Redundant Installation: You can configure the system in either simplex or redundant mode, ensuring both flexibility and reliability for different industrial needs.

I/O Card Options

The KJ3102X1-BA1 supports a range of I/O cards to suit different field wiring and input/output needs. Here’s a breakdown of the available options:

Analog I/O Cards

• AI 4-20 mA HART (8 channels)
• AI 4-20 mA HART (16 channels)
• AO 4-20 mA HART (8 channels)
• AO 4-20 mA HART (16 channels)

Discrete I/O Cards

• DI, 24 VDC Dry Contact (8 channels)
• DI, High Density (32 channels)
• DO 24 VDC High Side (8 channels)
• DO High Density (32 channels)

Supported I/O Cards for Simplex Installation

• AI 4-20 mA HART (16 channels)
• AI Isolated (4 channels)
• RTD (8 channels)
• Thermocouple (8 channels)
• Millivolt (8 channels)
• DI, High Density (32 channels)
• DI 24 VDC Isolated (8 channels)
• Multi-Function (4 channels, Isolated DI)
• Sequence of Event (16 channels, DI 24 VDC)
• DI 120 VAC Low Side Detection (8 channels)
• DI 120 VAC Isolated (8 channels)
• DO High Density (32 channels)
• DO 24 VDC Isolated (8 channels)
• DO 120/230 VAC High Side (8 channels)
• DO 120/230 Isolated (8 channels)

Technical Specifications

Why Choose the EMERSON KJ3102X1-BA1?

The KJ3102X1-BA1 offers robust functionality, meeting various industrial demands. With a wide selection of analog and discrete I/O cards, this module is highly adaptable to different field devices and sensors. Whether you need a simplex or redundant installation, it offers flexibility and reliability.

Thanks to its DIN rail mounting, the KJ3102X1-BA1 simplifies the installation process and ensures secure positioning. Furthermore, its pre-wiring capability for terminal blocks makes it easy to prepare the system ahead of time, which reduces setup time and enhances overall efficiency.

Moreover, the module is designed to function in harsh industrial environments, offering reliable performance under challenging conditions. Whether your system requires simple field wiring or complex redundant configurations, the KJ3102X1-BA1 can accommodate it all.

Applications

The KJ3102X1-BA1 is ideally suited for a variety of industrial applications, including:

• Process Control: Effectively integrates with sensors and actuators to manage process variables.
• Manufacturing Automation: Supports control systems for production lines and assembly operations.
• Robotics: Facilitates communication between control systems and robotic systems.
• Material Handling: Ideal for managing conveyors and transport systems.
• Building Automation: Controls HVAC, lighting, and other building systems in large facilities.
