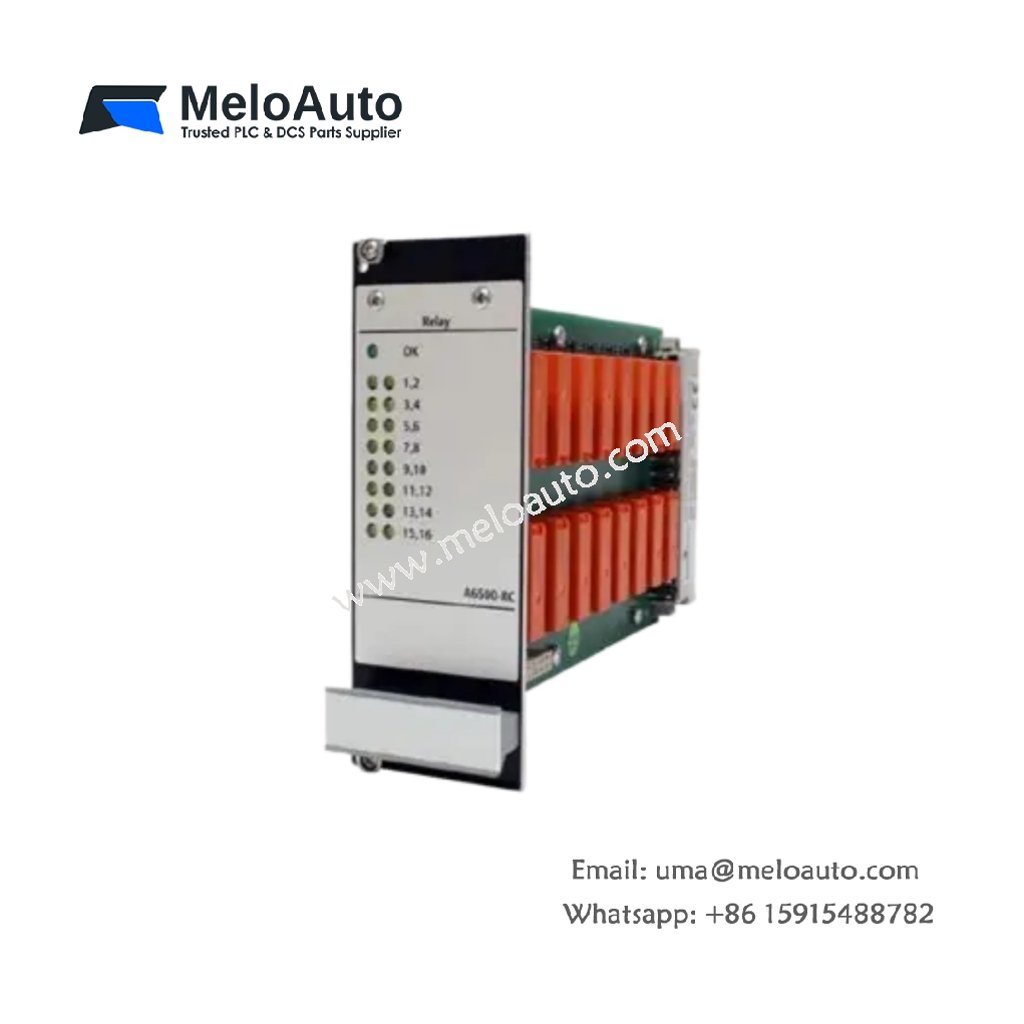

Emerson A6500-RC System Relay Card | 6 SPDT Relays for A6500

Product Overview

The Emerson A6500-RC system relay card delivers dependable switching capabilities for machinery protection systems. This module provides critical alarm and trip outputs based on real-time vibration and process data. It directly interfaces with the A6500 series monitoring framework to ensure rapid response during fault conditions. Industrial operators rely on this relay card to safeguard expensive rotating equipment from catastrophic damage. Its robust design guarantees long-term reliability in power plants, refineries, and large-scale manufacturing facilities.

Technical Specifications

The following table details the key technical parameters for the Emerson A6500-RC system relay card.

Parameter	Specification
Product Type	Relay Output Module
Compatibility	Emerson A6500 Series Monitoring System
Number of Relays	6 independent form C (SPDT) relays
Contact Rating	5 A at 250 VAC / 30 VDC (resistive load)
Coil Voltage	24 VDC (supplied via backplane)
Physical Dimensions	220 mm (H) x 30 mm (W) x 180 mm (D)
Weight	Approximately 0.72 kg
Power Consumption	3.5 W typical
Response Time	≤ 10 ms from signal detection to relay activation
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
LED Indicators	Power, relay status per channel, fault alarm

Core Features and Functional Capabilities

Relay Configuration and Output Capacity

The Emerson A6500-RC houses six independent form C relays, each offering one normally open and one normally closed contact. Each relay handles up to 5 amperes at 250 VAC or 30 VDC for resistive loads. Operators can configure each relay individually for alarm, trip, or auxiliary control functions. This flexibility allows the system to accommodate diverse protection strategies across different machinery types.

Response Speed and Signal Processing

This relay card achieves a remarkable response time of 10 milliseconds or less. The module continuously monitors the backplane communication bus for updated measurement data. Upon receiving a trip condition signal, it immediately energizes or de-energizes the corresponding relay coil. Consequently, the Emerson A6500-RC ensures timely shutdown actions that prevent mechanical damage during sudden fault events.

Physical Characteristics and Installation

The module measures 220 millimeters in height, 30 millimeters in width, and 180 millimeters in depth. It weighs approximately 0.72 kilograms, making it lightweight and easy to handle during installation. The card draws all necessary power directly from the A6500 backplane, consuming only 3.5 watts under normal operation. This design simplifies integration because you do not require additional external power supplies.

Diagnostic and Status Indication

Front-panel LED indicators provide immediate visual feedback on relay status and system health. Power LEDs confirm proper backplane connection, while individual channel LEDs show each relay’s energized or de-energized state. A fault LED alerts operators to any internal diagnostic issues. Therefore, maintenance personnel can quickly identify problems without opening the cabinet or using external testing equipment.

Application and Integration

The Emerson A6500-RC integrates seamlessly with the A6500 rack system through a standard backplane connection. It supports all common protection applications including overspeed detection, bearing temperature monitoring, and shaft vibration tripping. Users can assign specific relay outputs to any measurement channel via the system configuration software. This mapping capability enables customized protection schemes for each individual machine.
