Emerson 396353-01-0 Analog Output Module Specs

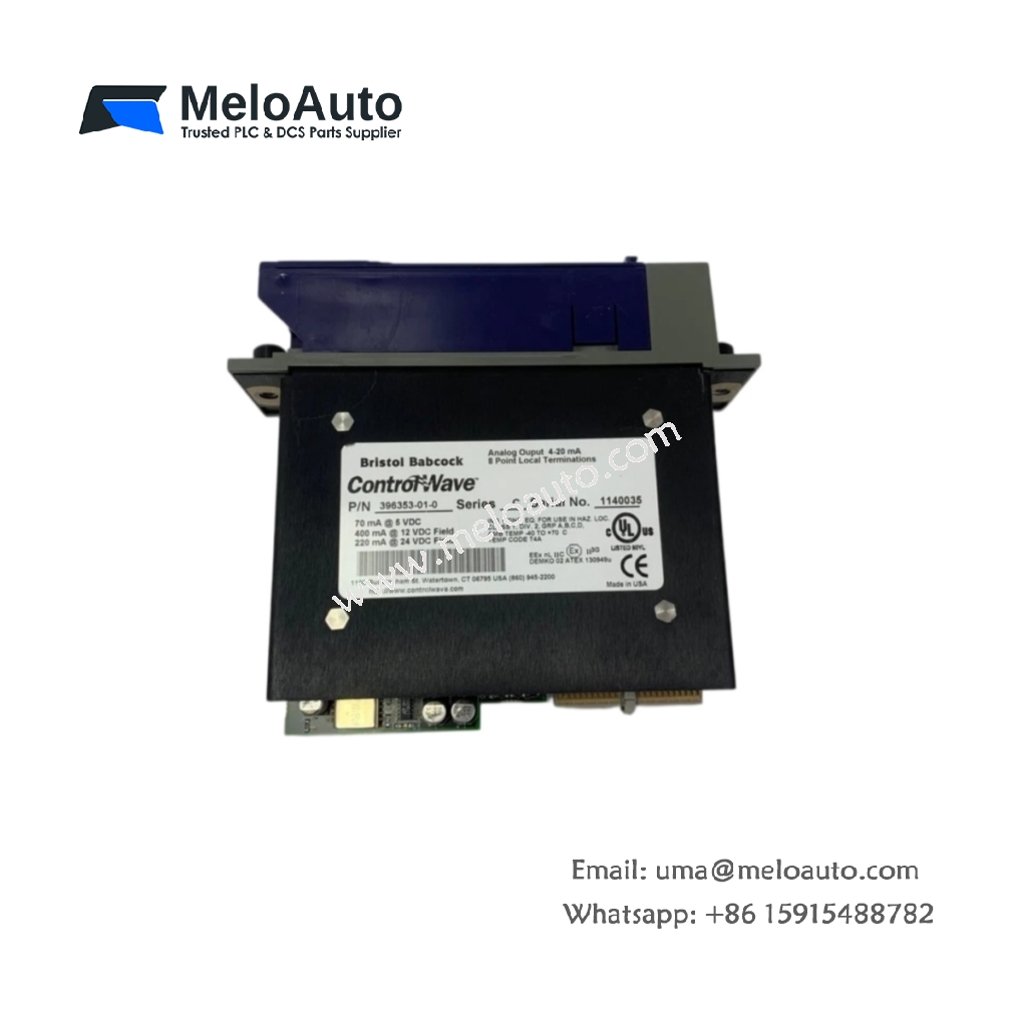

The 396353-01-0 analog output module from Emerson drives continuous control signals for valves, actuators, and variable-speed drives. This unit converts controller commands into precise current or voltage outputs. Engineers select this module when they need smooth modulating control and straightforward commissioning.

Technical Specifications

Parameter	Specification
Product Model	396353-01-0
Module Type	Analog Output Module
Output Type	Continuous current/voltage analog signals
Interface	Backplane connector, field wiring terminals
Mounting	Chassis slot
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.27 kg
Dimensions	Approx. 160 mm × 98 mm × 30 mm
Energy Storage	On-board capacitors for output smoothing
Component Count	Multiple output channels per module

Interface and Signal Details

The 396353-01-0 links field wiring to the chassis backplane through a dedicated connector. Screw terminals secure outgoing conductors and resist vibration during continuous plant operation. Therefore, technicians achieve firm terminations without soldering or adapter kits. The module takes one chassis slot and draws power from the shared rail.

Physical and Environmental Parameters

The unit measures roughly 160 mm by 98 mm by 30 mm and weighs about 0.27 kg. Its compact housing fits crowded cabinets and keeps panel layout efficient. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The on-board smoothing circuitry steadies output levels before signals reach field devices.

Why This Module Matters

Plant teams value the 396353-01-0 for its stable modulating output and simple servicing. The energy storage components suppress ripple during load changes. As a result, control loops stay tight and valve hunting drops noticeably. Technicians also appreciate the clear channel labeling and quick slot access.
