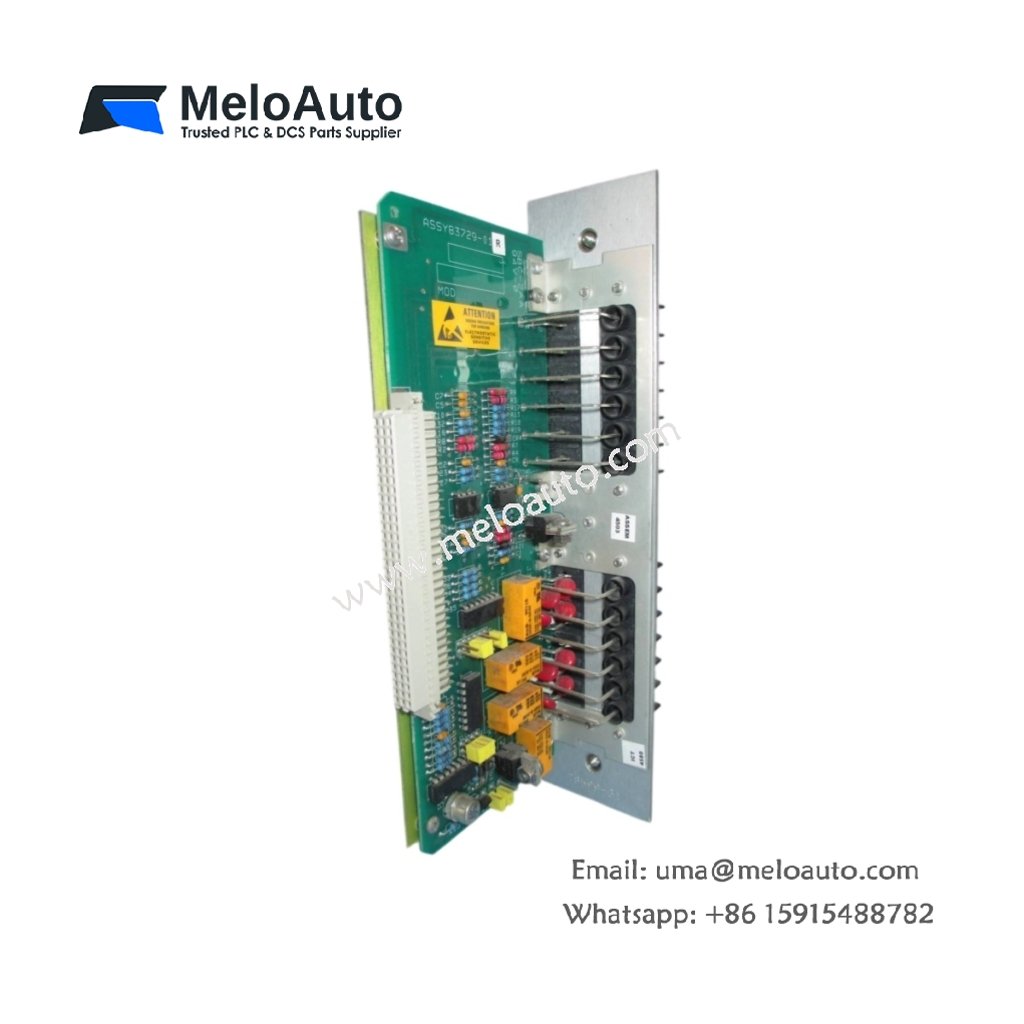

Bently Nevada 83729-01 XDCR I/O Record Terminal for Monitoring Systems

The 83729-01 XDCR I/O record terminal connects transducer signals to Bently Nevada monitoring racks. Reliability engineers select this terminal when they need clean signal termination for condition monitoring channels. Moreover, the unit supports organized wiring that speeds up fault tracing.

Interface and Terminal Layout

This terminal provides twelve screw-type connection points for transducer wiring. Specifically, each point accepts shielded cable from proximity probes and accelerometers. Therefore, technicians achieve secure conductor clamping without special crimping tools.

Physical Dimensions and Weight

The unit measures 120 mm in height, 30 mm in width, and 95 mm in depth. Additionally, it weighs approximately 0.2 kg, which simplifies DIN-rail mounting. These compact dimensions allow technicians to stack many terminals in narrow marshalling panels.

Component Count and Energy Storage

Each assembly contains 38 passive components on a compact terminal board. Furthermore, the unit integrates a capacitor for signal filtering and noise suppression. This energy storage element smooths transient interference and protects downstream monitoring cards.

Key Technical Parameters

Integration and Operational Benefits

The 83729-01 terminal pairs with Bently Nevada 3500 racks and transducer cabling. Consequently, reliability teams simplify wiring and reduce commissioning time. The screw terminal design also shortens troubleshooting and cable swap procedures. Overall, this terminal delivers dependable signal termination for continuous machine monitoring.
